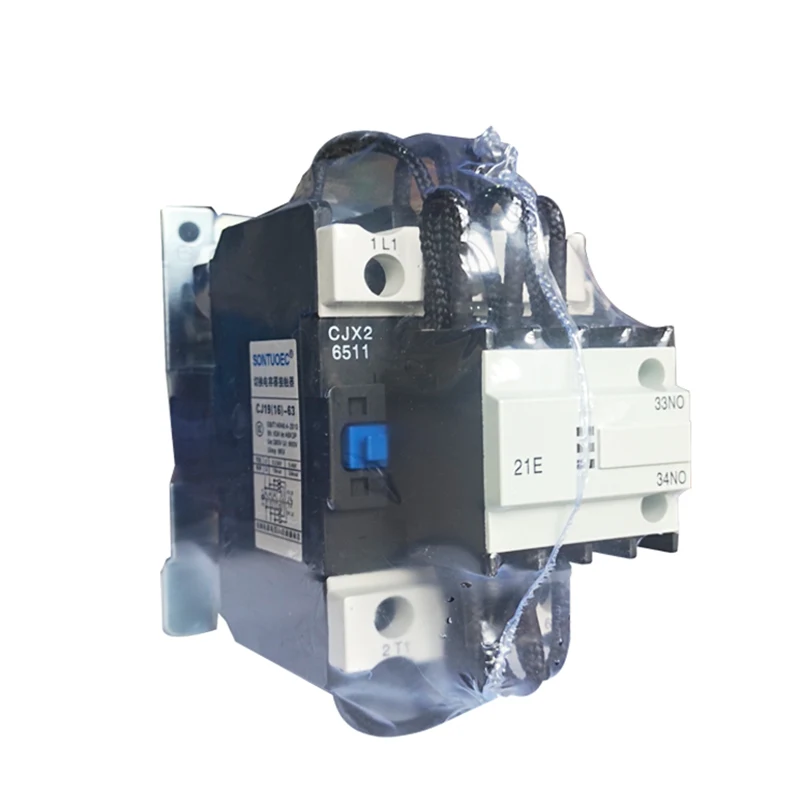

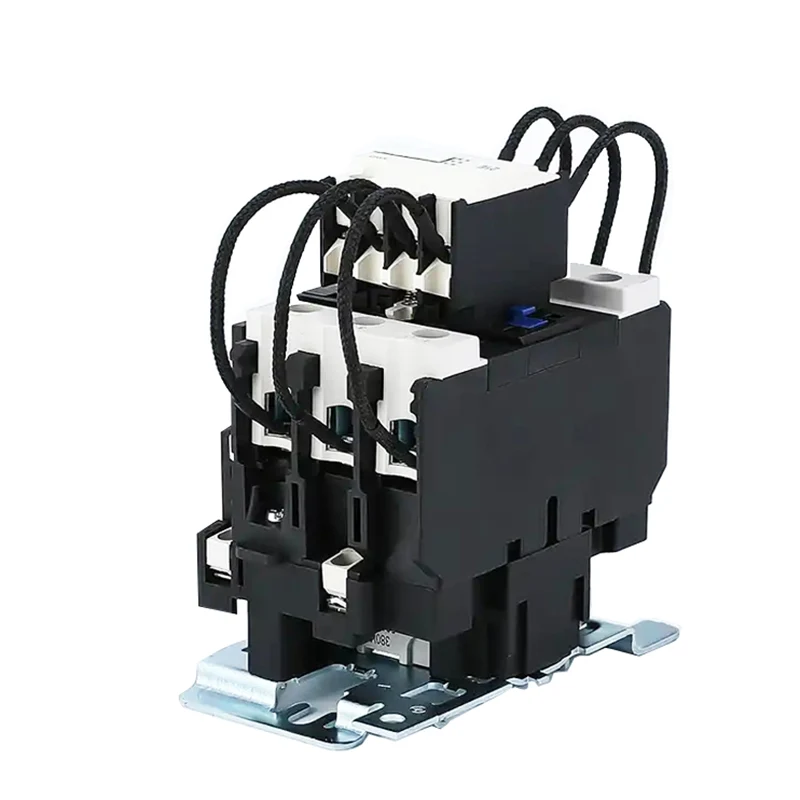

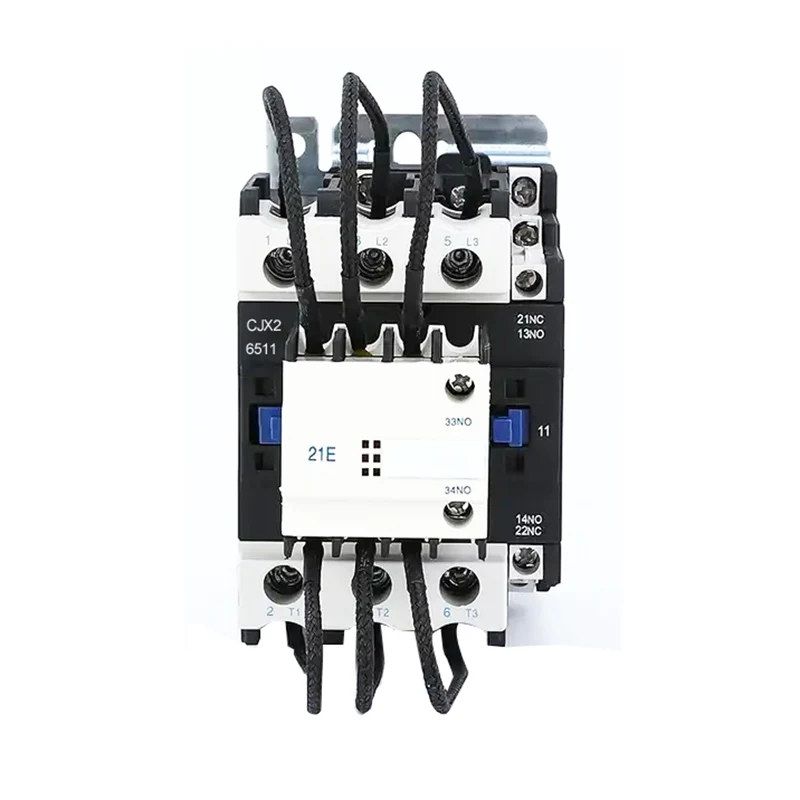

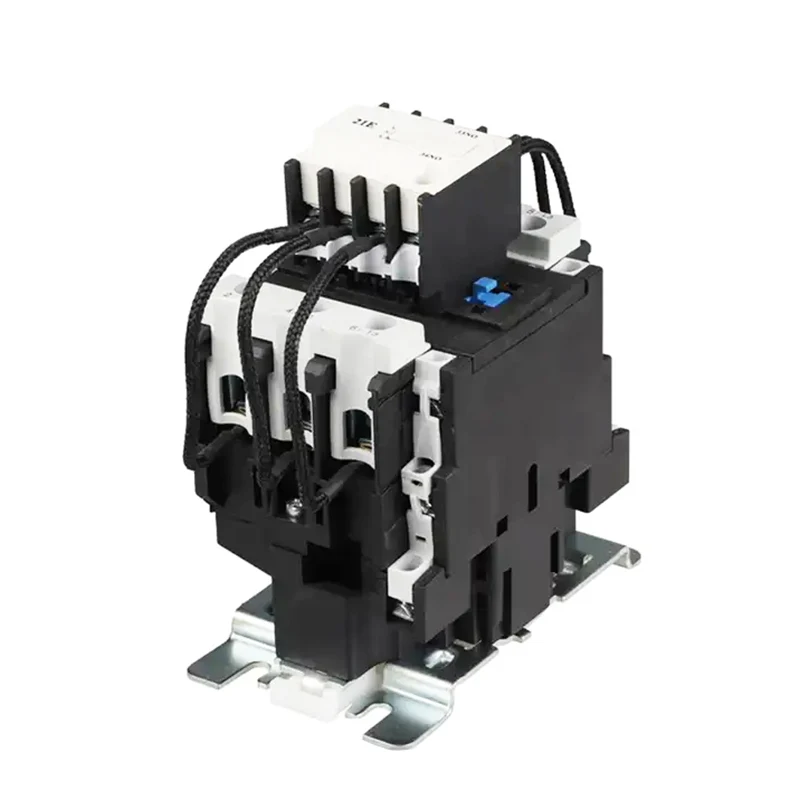

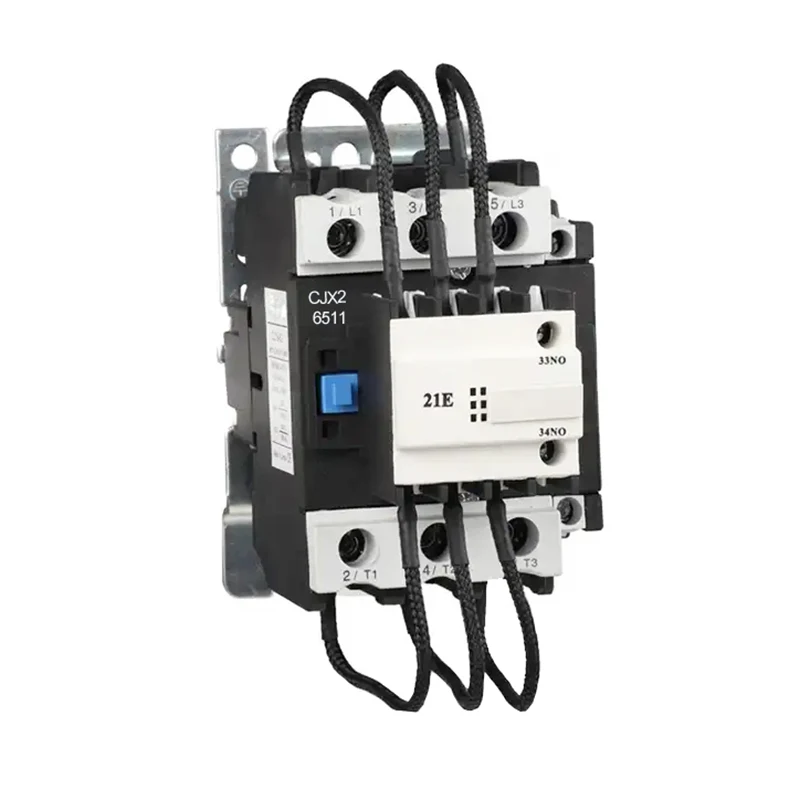

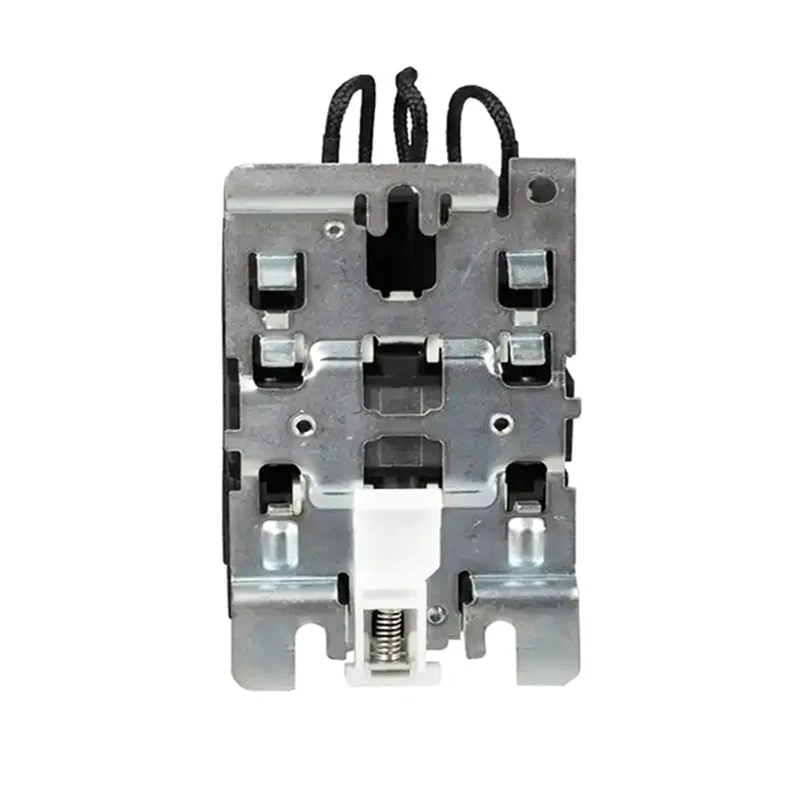

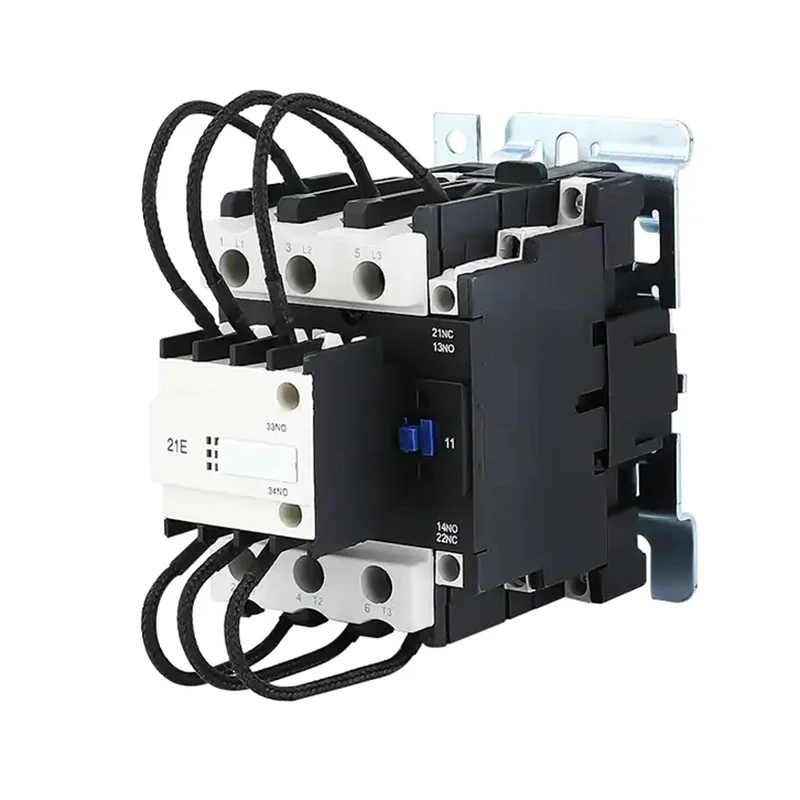

I-ACB ye-AC ye-ACTMactor

Umnxibelelanisi we-AC we-ac nagnetic usetyenziswa kwinethiwekhi yamandla ye-AC 50hz okanye i-60hz, ukuya kuthi ga kwi-380v, ngokusebenza okanye ukutshintshela isixhobo seCapact Stores kwisekethe yamandla e-lv. Ngesixhobo se-antisurge, sinokunciphisa ifuthe lokuvala ukuvala kwaye kuthintele ukusuka ekugcwalisweni njengokuqhekeka.

Thumela uMbuzo

Ingcaciso yeMveliso

Uhlobo		Cj19-09	I-CJ19-12	I-CJ19-18	I-CJ19-25	I-CJ19-32	I-CJ19-40	I-CJ19-50-50	I-CJ19-65	Cj19-80	I-CJ19-95
I-Rated isebenza okwangoku (a)	Ac3	9	12	18	25	32	40	50	65	80	95
I-Rated isebenza okwangoku (a)	I-AC4	3.5	5	7.7	8.5	12	18.5	24	28	37	44
Imilinganiselo yoMgangatho oPhakathi weSigaba 3 I-Motors 50 / 60hz I-I-I-Actory AC-3	I-220 / 230V	2.2	3	4	5.5	7.5	11	15	18.5	22	25
	I-380 / 400V	4	5.5	7.5	11	15	18.5	22	30	37	45
	415V	4	5.5	9	11	15	22	25	37	45	45
	500V	5.5	7.5	10	15	18.5	22	30	37	55	55
	I-660 / 690V	5.5	7.5	10	15	18.5	30	33	37	45	55
Ubushushu obuqhelekileyo (a)		20	20	32	40	50	60	80	80	125	125
Ubomi boMbane	I-AC3 (X104)	100	100	100	100	80	80	60	60	60	60
Ubomi boMbane	I-AC4 (X104)	20	20	20	20	20	15	15	15	10	10
Ubomi boMatshini (x104)		1000	1000	1000	1000	800	800	800	800	600	600
Inani labafowunelwa	I-3p + hayi					I-3p + NC + Hayi
Inani labafowunelwa	I-3p + NC					I-3p + NC + Hayi

I-SCJ19 itshintshelo lohlobo lwe-Caceciouting isetyenziswa kwinethiwekhi yamandla ye-AC 50hz okanye i-60hz, ukuya kuthi ga kwi-380V, ukuba isebenze okanye itshintshe okanye itshintshe okanye itshintshe i-LV yesekethe ye-LV kwisekethe yamandla e-LV. Ngesixhobo se-antisurge, sinokunciphisa ifuthe lokuvala ukuvala kwaye kuthintele ukusuka ekugcwalisweni njengokuqhekeka.

Imigaqo yokusebenza

Umgaqo wokusebenza we-Acnetic quactor usekwe kwi-elektromagnetic yokuqulunqwa kunye namandla amandla. Xa i-coil inamandla, intsimi yemagnethi ivelisiwe inomtsalane wensimbi kwaye ivala abafowunelwa, ngaloo ndlela kuvula isekethe. Xa i-coyil inamandla, intsimi yemagnethi inyamalale, i-Iron Cont ihamba phantsi kwentwasahlobo, umfowunelwa waphukile kwaye isekethe inqahliwe. Ngale ndlela, umazibuthe we-ac nacnetic uyakuqonda ulawulo lwesekethe.

Ulwakhiwo kunye nokuqulunqwa

Umnxibelelanisi weMagnetic udityaniswe ikakhulu kwezi zinto zilandelayo:

Inkqubo ye-Electromagnetic: kubandakanya izinto ezinjengesiko, core kunye ne-Armas, ezi zezona ziphambili zokuvelisa intsimi kunye nentshukumo yemagnethi.

INkqubo yoQhakamshelwano: ibandakanya umfo onxibelelwano oluphambili kunye nomdla wokunceda, osetyenziselwa ukuvula kunye nesekethe. Abafowunelwa obuphambili bahlala besebenzisa imijikelezo emikhulu, ngelixa abafowunelwa abancedisayo basetyenziselwa ukufezekisa imisebenzi eyahlukeneyo yolawulo.

Isixhobo esikhuphukayo se-ARC: Isetyenziselwa ukucima i-ARC xa unxibelelwano luqhawulwe, ukuthintela i-ARC ukuba yonakalisa umfowunelwa.

Amanye amacandelo: njengemithombo, iibakaki, izindlu, njl., Zisetyenziselwa ukulungisa nokuxhasa izinto zokuqinisekisa ukusebenza kwesiqhelo.

Iimpawu zezakhiwo

1.Umdibaniso ohlanganisiweyo kunye nokunganyangeki okunqongopheleyo, okwaziyo ukunciphisa umda kwixabiso elivumelekileyo.

2.Umnxibelelanisi we-proboctor upough ngokuthe ngqo, indlela yokusebenza ye-AID, kulula ukukhangela ngesandla, umakha-hlukeneyo we-compactcoccoccoct ngendlela efanelekileyo ukutshintsha abafowunelwa.

3.Urhoxisiwe ibhloko ye-terminal ekhuselweyo ngecime, ikhuselekile kwaye ithembekile.

4.Ukubangelwa zizikrelemnqa, okanye kwi-35 / 75mm jikelele.

Ukusebenza kunye neemeko zokufaka

(1) Ubushushu obuxhomekeke: -5 ℃ - + 40 ℃, amaqondo obushushu aphakathi akufuneki abe ngaphezulu + 35 ℃ kwiiyure ezingama-24.

. Kwinyanga emanzi kangangesixa seqondo eliphantsi kakhulu + 25 ℃ ngomndilili ophakathi kwe-suidity ephezulu yi-90%, kwaye ithathele ingqalelo i-gener yotshintsho kwaye yenzeka kuba imveliso kumphezulu wejeli.

(3) Ukuphakama kungaphezulu kwe-2000m xa kufakelwa ukufakelwa.

(4) Udidi lokungcola: Iklasi ye-3

(5) Iklasi yokufaka: III

Iimpawu eziphambili

Ukusebenza okuthembekileyo: I-AcTMactor ye-AC ye-AC yenziwe ngezinto ezimgangatho ophezulu kunye nenkqubo yokuqhubela phambili kwemveliso, enokuthembeka okuphezulu kunye nozinzo.

Ubomi obude beenkonzo: Inkqubo yoqhakamshelwano yenziwa ngezinto zokunganyangeki, ezinokujamelana nesothuso esikhulu ngoku kunye ne-voltage, zisongeza ubomi benkonzo.

Kulula ukuyigcina: Isakhiwo senziwe ngokufanelekileyo, ngokulula siyekile kwaye silungise, ukunciphisa iindleko zokulungisa.

Inkcazo eyahlukeneyo: Ukuze uhlangabezane neemfuno zabasebenzisi abahlukeneyo, i-AcMactor ye-AC ye-AC ye-AC ye-AC ineendlela ezahlukeneyo zokucaciswa kunye neemodeli zokukhetha, kubandakanya amanqanaba ahlukeneyo akhoyo, imigangatho ye-voltage kunye nokuhlaziywa kwe-vortage kunye nokuhlaziywa komsebenzi.
