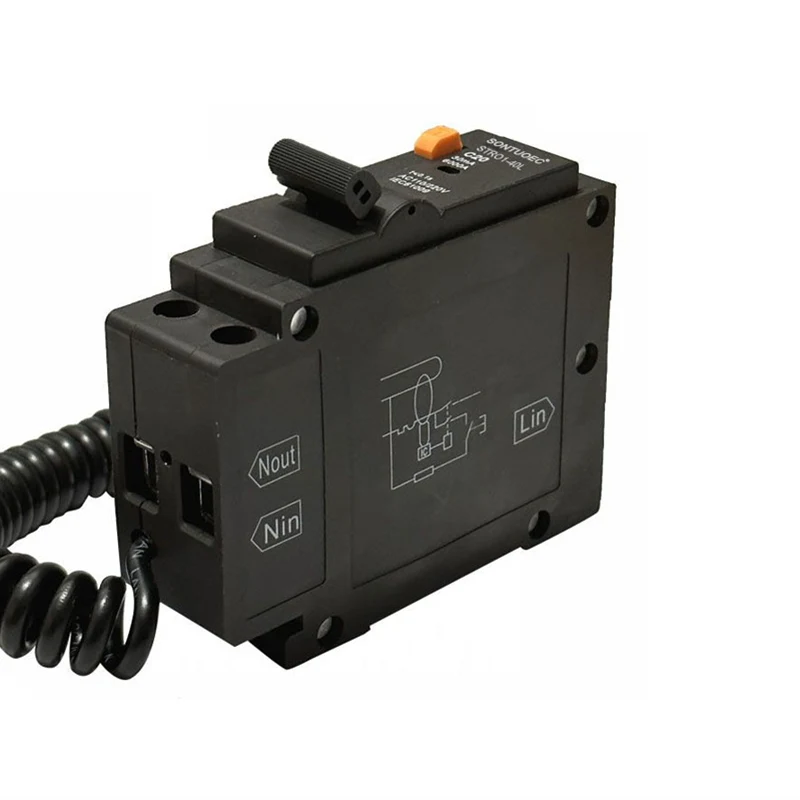

Nxulumanisa Uhlobo lwe-RCBO 1P+N

Plug in Type RCBO 1P + N, i.e. Iplagi kwi-Residual Current Circuit Breaker kunye ne-Overload Protection (I-Residual Current Circuit Breaker kunye ne-Overload Protection), i-1P + N ibonisa ukuba inani leepali zalo li-unipolar plus zero line. Ayigcini nje ukubonelela ngokugqithiswa kunye nokukhusela i-short-circuit, kodwa inomsebenzi wokukhusela ukuvuza, onokubona kwaye unqumle ukuvuza kwangoku kumgca womhlaba, ngaloo ndlela uqinisekisa ngokufanelekileyo ukusebenza okuqhelekileyo kwezixhobo zombane kunye nokhuseleko lomntu.

Umzekelo:STRO1-40L

Thumela uMbuzo

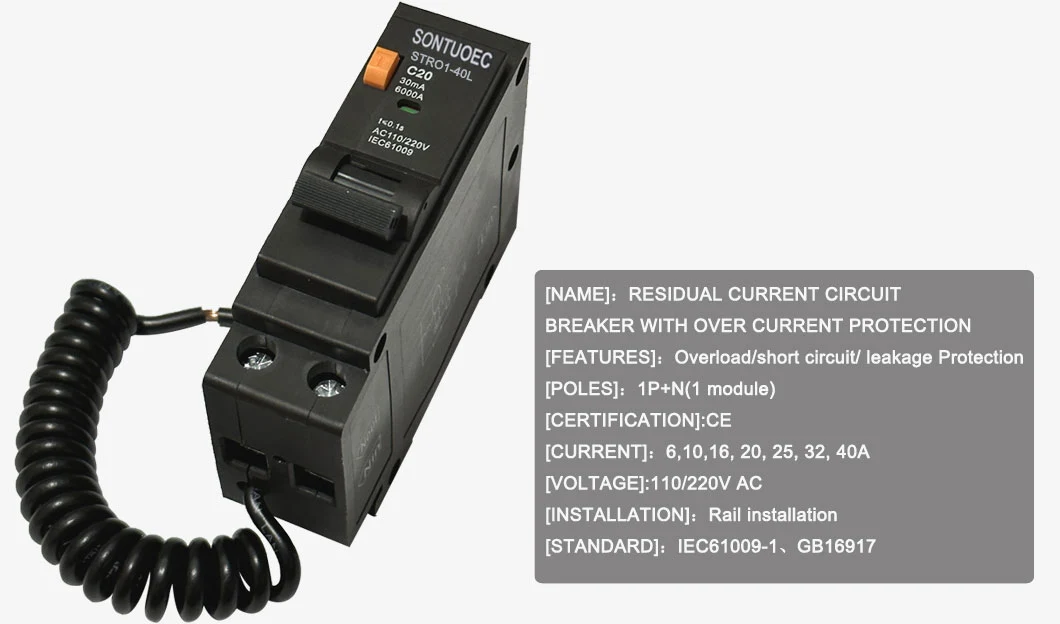

Ingcaciso yeMveliso

Umzekelo	I-STRO1-40L
UMGANGATHO:	IEC 61009-1
Iimpawu zangoku ezishiyekileyo	A/AC
I-Pole No	1P+N
Ikalwe Yangoku(A)	6A,10A,16A,25A,32A, 40A
Ikalwe IVoltge(V)	110/220,120V
Ireyithwe intsalela yokusebenza yangoku	10ma, 30ma, 100ma, 300ma, 500ma
Ireyithwe ngokwemiqathango yesekethe emfutshane eshiyekileyo yangoku	6KA
Ukunyamezela kwe-Electro-machanical	phezu 4000 imijikelo

Iiparamitha zobuGcisa

I-Voltage elinganisiweyo: Ngokuqhelekileyo i-230 / 240VAC, ilungele umbane wasekhaya kunye norhwebo.

Ukulinganiswa kwangoku: Ngokweemodeli ezithile kunye neenkcukacha, ukulinganisa okwangoku kungahluka, kodwa uluhlu oluqhelekileyo lwangoku luquka i-6A, 10A, 16A, 20A, 25A, 32A, 40A njalo njalo.

Ukulinganisa okushiyekileyo okwangoku: kubhekiselele kwixabiso elincinci langoku elinokuthi lisebenze i-breaker circuit xa kukho ukuvuza. Amaxabiso akhoyo aqhelekileyo alinganisiweyo yi-10mA, 30mA, 100mA, 300mA njalo njalo. Xa ukuvuza kwangoku kwisiphaluka kudlula eli xabiso, i-breaker circuit iya kuhamba ngokuzenzekelayo.

Ukuphindaphinda: Ngokubanzi yi-50/60Hz, ehambelana nomgangatho oqhelekileyo wenkqubo yamandla.

Umthamo wesiphaluka esifutshane: ubhekiselele kwixabiso eliphezulu langoku ukuba i-breaker circuit inokumelana phantsi kweemeko ezimfutshane. Iimodeli ezahlukeneyo kunye neenkcukacha zinokuba namaxabiso ahlukeneyo omthamo wesekethe emfutshane.

Plug in Type RCBO 1P+N

Iimbonakalo

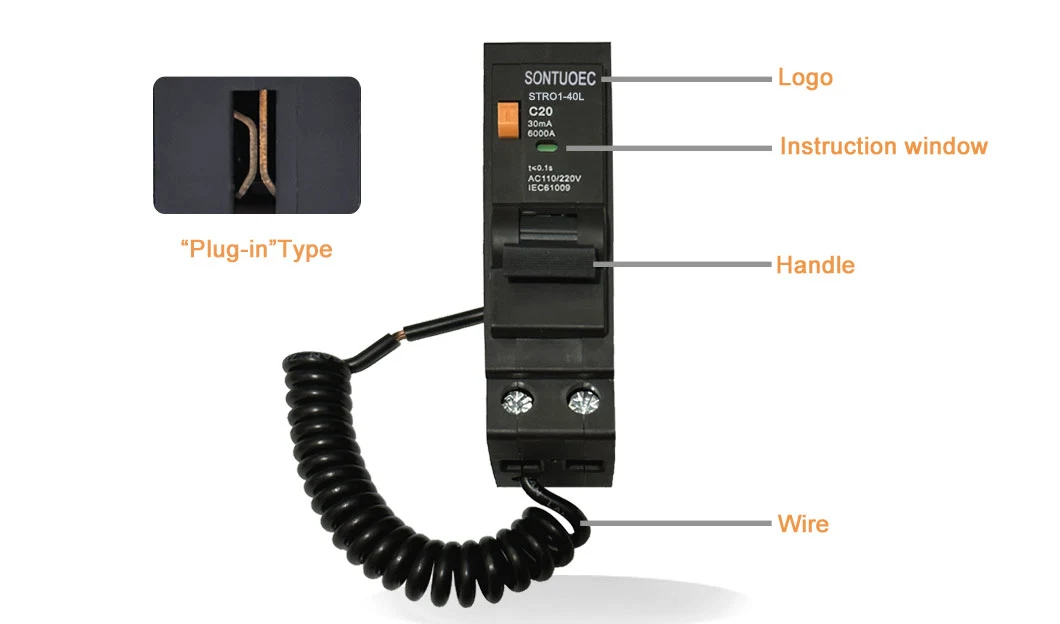

Uyilo lwe-plug-in: kulula ukuyifaka kunye nokususa, ukuphucula ukugcinwa kunye nokuguquguquka kwezixhobo zombane.

Ukhuseleko olubanzi: Ukudibanisa ukulayisha ngaphezulu, isiphaluka esifutshane kunye nokukhusela ukuvuza, kunokuqinisekisa ngokupheleleyo ukhuseleko lweesekethe kunye nezixhobo.

Ikhuselekile kwaye inokwethenjelwa: Ukusetyenziswa kwezinto ezisemgangathweni ophezulu kunye nenkqubo yokuvelisa ephezulu iqinisekisa ukuthembeka kunye nokuqina kwe-breaker circuit.

Isebenza ngokubanzi: ilungele uluhlu olubanzi lweemeko zombane ezifana nekhaya, urhwebo kunye nezoshishino.

Ukufakela kunye nokuQapha

Indawo yokufakela: Kufuneka ifakwe kwindawo eyomileyo, engenamoya ngaphandle kwegesi ephazamisayo, kwaye uqinisekise ukuba kukho i-isolation okanye i-cut-off switch kunikezelo lwamandla kwisixhobo sombane.

Indlela yokufaka i-Wiring: I-Wiring kufuneka iqhutywe ngokuhambelana nomzobo we-wiring we-breaker circuit ukuqinisekisa ukudibanisa okuchanekileyo kocingo lomlilo, ucingo lwe-zero kunye nocingo lomhlaba.

Ukuhlolwa rhoqo: Hlola kwaye ugcine i-breaker circuit rhoqo ukuqinisekisa ukuba imeko yayo eqhelekileyo yokusebenza.

Izilumkiso: Ngexesha lokusetyenziswa, kufuneka kuthathelwe ingqalelo ukuphepha ukwenzeka kweziphene ezifana nokugqithiswa, ukujikeleza okufutshane kunye nokuvuza ukuqinisekisa ukusebenza ngokukhuselekileyo kweesekethe kunye nezixhobo.

Imeko yesicelo

I-plug-in RCBO 1P+N idla ngokusetyenziswa kwiisekethe ezifuna ukhuseleko lomntu siqu, njengokukhanya, amandla abuthathaka, izixhobo zombane kunye nezinye iisekethe zombane kumakhaya nakwiindawo zikawonke-wonke. Ezi ndawo zihlala zinamanzi, ukufuma kunye nezinye iimeko ezinokubangela iingozi zokuvuza ngokulula. Ngoko ke, ukusetyenziswa kwe-plug-in RCBO 1P + N kunokuphucula ngokufanelekileyo ukhuseleko kunye nokuthembeka kwenkqubo yombane.
