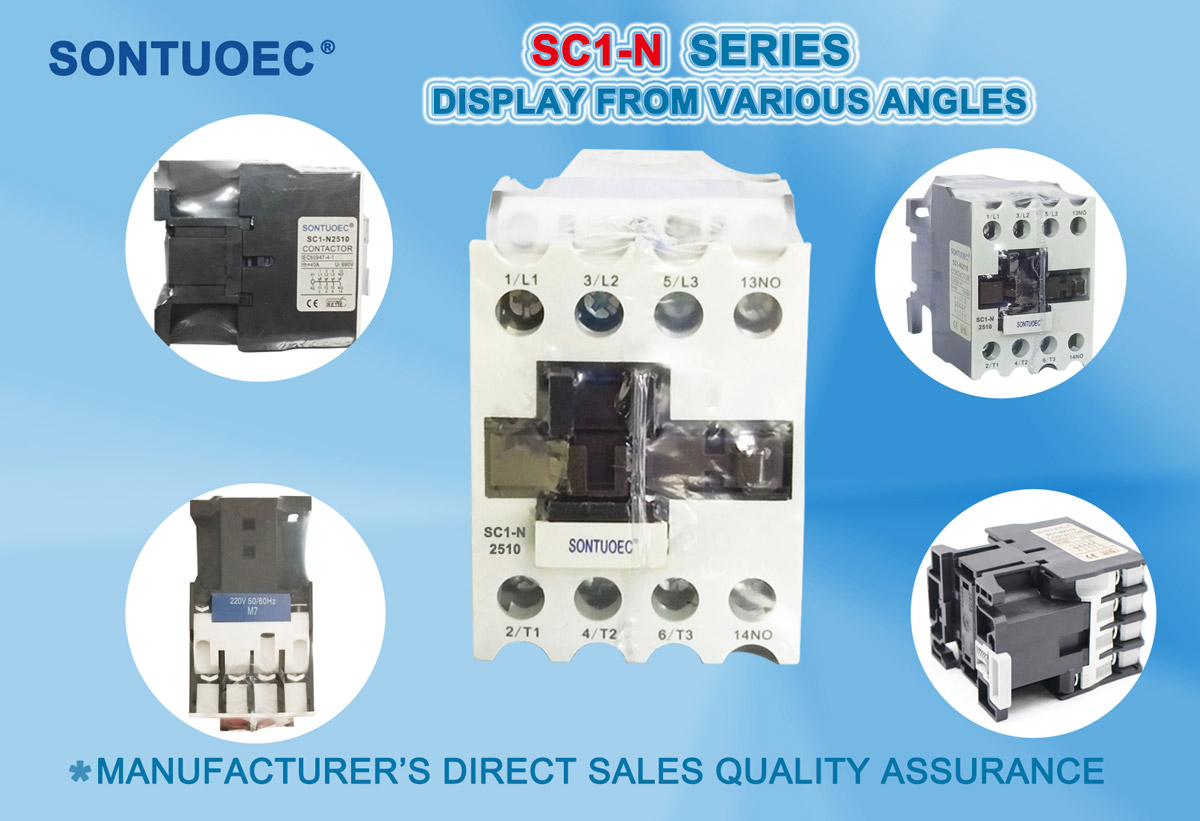

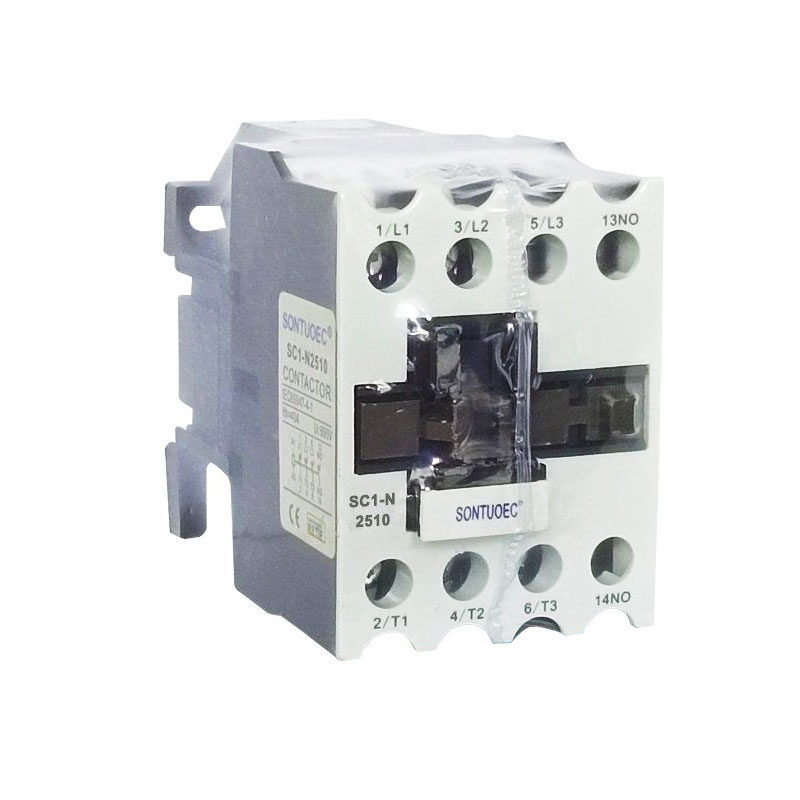

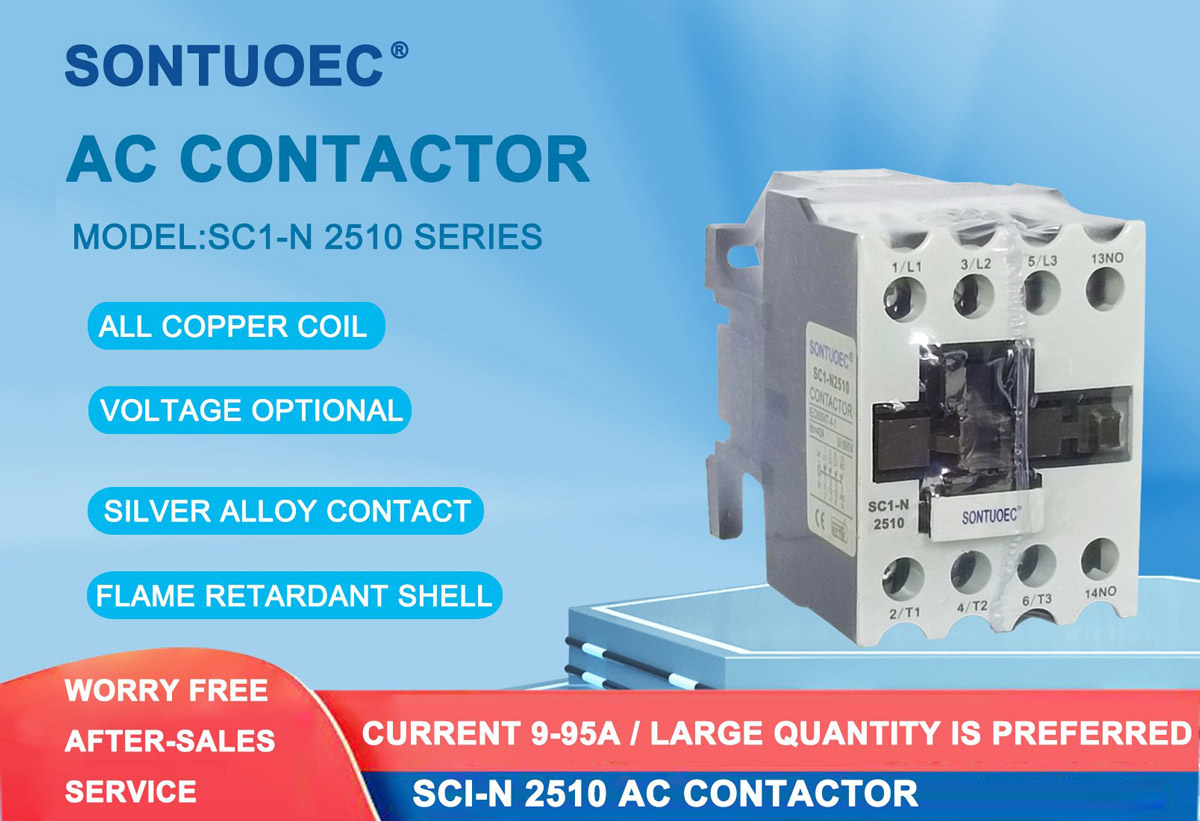

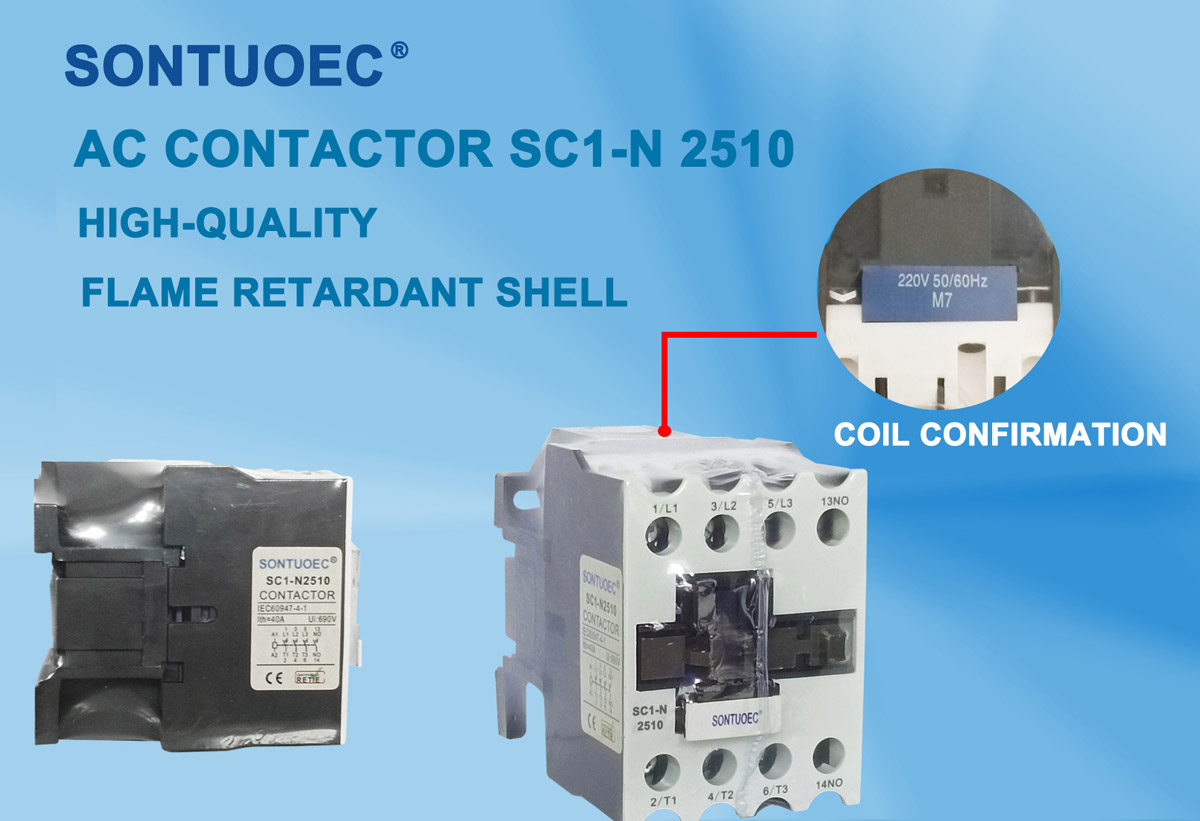

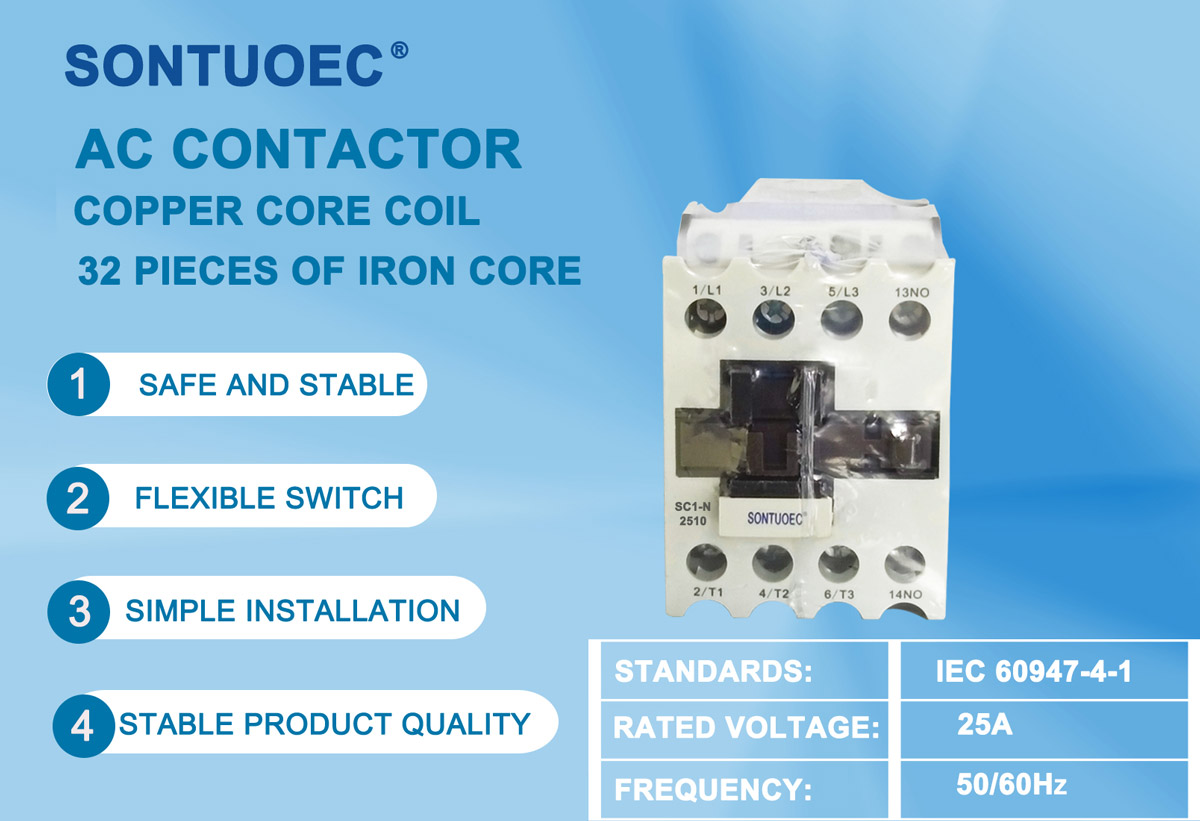

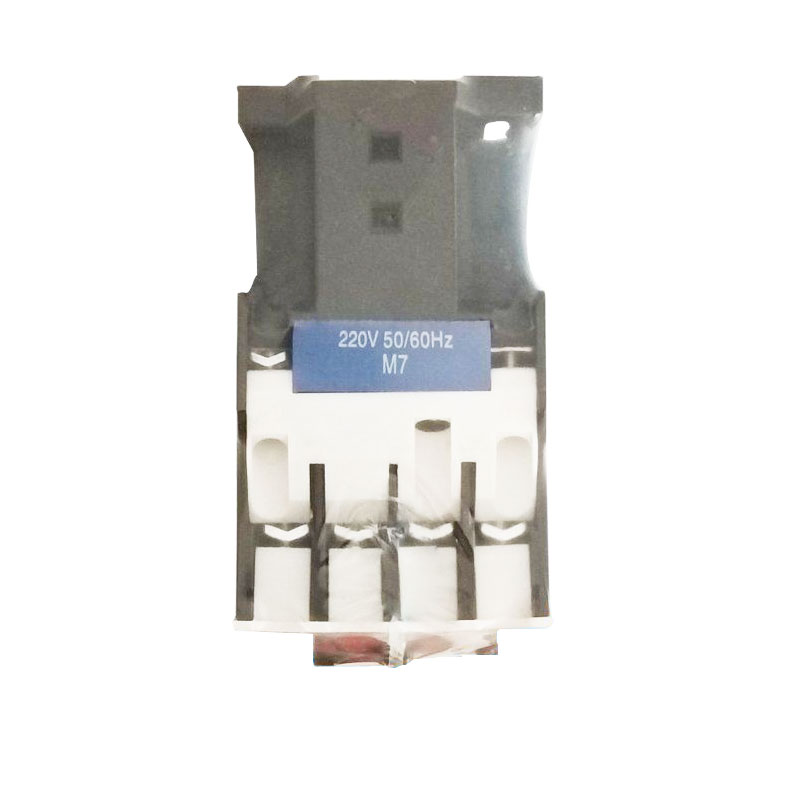

3 Pole AC Umqhagamshelwa

I-3 I-Pole AC Contactor yi-AC yoqhagamshelwano kunye nabafowunelwa abathathu abazimeleyo (okanye iipali), nganye ilawula isigaba esinye sesigaba sesithathu senkqubo yamandla. Umsebenzi wayo oyintloko kukulawula ukude ukuqala, ukumisa kunye nokubuyisela umva kweenjini zesigaba sesithathu okanye enye imithwalo yesigaba sesithathu. Ngokulawula i-on and off yala ma-contacts amathathu, inokuqonda uxhulumaniso kunye nokuqhawulwa kwesekethe yesigaba sesithathu, ngaloo ndlela ilawula isimo sokusebenza somthwalo wombane.

Thumela uMbuzo

Ingcaciso yeMveliso

Umzekelo	Umthamo wesigaba esi-2 se-sqrlel-								Ilinganiswe ngokufudumeza ngoku 1th(A)
	Amandla alinganisiweyo (KW)				Ukusebenza okuthelekelelweyo ngoku(A)
	220V-240v	380-440v	550v	660v	220-240V	380V-440V	550v	660v
I-SC1-N10	2.5	4.0	4.0	4.0	11	9	7	5	20
I-SC1-N11	3.5	5.5	5.5	5.5	13	12	9	7	20
I-SC1-N12	3.5	5.5	5.5	5.5	13	12	9	7	20
SC1-N20	5.5	11	11	7.5	22	22	17	9	32
I-SC1-N25	8.5	14	14	14	30	30	12	12	40
SC1-N35	12	20	20	20	40	40	17	17	40

Ubume kunye nomgaqo wokusebenza

Ulwakhiwo:

Inkqubo ye-Electromagnetic: ibandakanya amacandelo afana neekhoyili, ii-cores, njl., ezisetyenziselwa ukuvelisa i-magnetic flux ukuqhuba ukuvulwa kunye nokuvalwa kwenkqubo yoqhagamshelwano.

Inkqubo yoqhagamshelwano: kuquka uqhagamshelwano oluphambili kunye noqhagamshelwano oluncedisayo. Uqhagamshelwano oluphambili lusetyenziselwa ukuthwala i-current high, kwaye uqhagamshelwano oluncedisayo lusetyenziselwa ukuqonda ukuhanjiswa kunye nempendulo yezibonakaliso zokulawula.

Isixhobo sokucima i-arc: Isetyenziselwa ukucima i-arc eyenziwe xa umnxibelelwano unqanyuliwe ukukhusela umnxibelelwano kumonakalo.

I-Shell: isetyenziselwa ukukhusela amalungu angaphakathi kwindawo yangaphandle.

UmGaqo wokuSebenza:

Xa i-coil inamandla, i-iron core ivelisa i-magnetism kwaye itsala inkqubo yoqhagamshelwano ukuba ivale, ivule i-circuit yesigaba esithathu.

Xa i-coil i-de-energized, i-core yentsimbi ilahlekelwa yi-magnetism yayo kwaye inkqubo yoqhagamshelwano iyahlula phantsi kwesenzo sentwasahlobo ukukhupha isiphaluka sesigaba sesithathu.

Okwesithathu, isicelo kunye nokukhetha

Usetyenziso:

I-3 Pole AC Contactor isetyenziswa ngokubanzi kwi-industrial automation, inkqubo yamandla kunye nokwakhiwa kwe-automation.

Ingasetyenziselwa ukulawula imisebenzi efana nokuqala, ukumisa kunye nokubuyisela umva kweenjini zesigaba sesithathu.

Isenokusetyenziswa ukuqonda ulawulo olukude kunye nokhuseleko lwenkqubo yamandla.

Ukhetho:

Xa ukhetha i-3 Pole AC Contactor, izinto ezifana ne-voltage elinganisiweyo, ukulinganisa okwangoku kunye nohlobo lomthwalo wenkqubo yamandla kufuneka ziqwalaselwe.

Umlinganiselo wangoku kufuneka ube mkhulu okanye ulingane nowona mgangatho wokusebenza wangoku womthwalo.

Umlinganiselo wombane kufuneka ulungelelaniswe kwinqanaba lombane wenkqubo yamandla.
