I-LC1-N Teecture Connector

I-LC1-N Teecal Conculators ilungele ukusetyenziswa kwisekethe nge-AC 50hz okanye i-60hz, i-690v (ukuya kuthi ga kwi-690v kwezinye iimodeli ukuya kwi-95a. Isetyenziselwa ukudibanisa kunye nesekethe ezaphula imigama emide, kunye nokuqalisa rhoqo nokulawula i-AC AC.

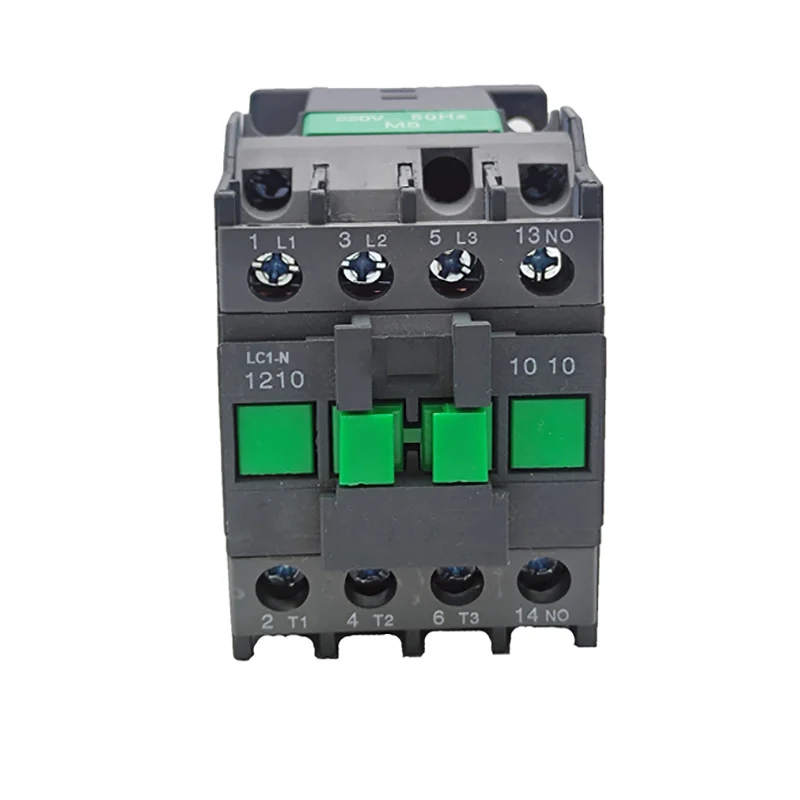

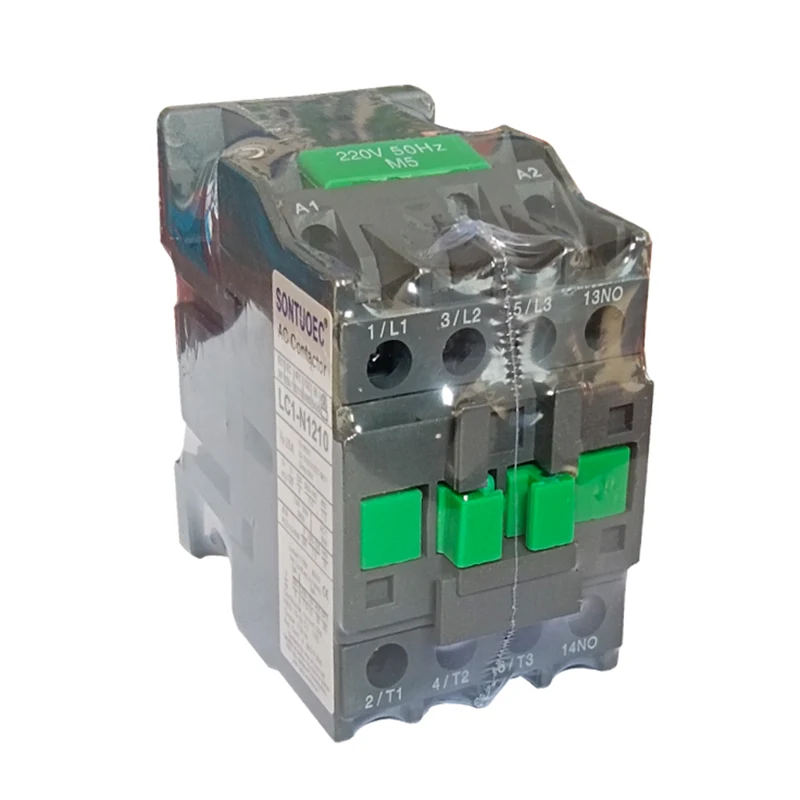

Umzekelo:LC1-N1210

Thumela uMbuzo

Ingcaciso yeMveliso

Uhlobo		Lci-n09	Lc1-n12	I-LC1-N18	I-LC1-N25	Lc1-n32	Lc1-n40	I-LC1-N50	I-LC1-N65	I-LC1-N80	Lc1-n95
I-Rated isebenza okwangoku (a)	Ac3	9	12	18	25	32	40	50	65	80	95
I-Rated isebenza okwangoku (a)	I-AC4	3.5	5	7.7	8.5	12	18.5	24	28	37	44
Imilinganiselo yoMgangatho oPhakathi weSigaba 3 I-Motors 50 / 60hz I-I-I-Actory AC-3	I-220 / 230V	2.2	3	4	5.5	7.5	11	15	18.5	22	25
	I-380 / 400V	4	5.5	7.5	11	15	18.5	22	30	37	45
	415V	4	5.5	9	11	15	22	25	37	45	45
	500V	5.5	7.5	10	15	18.5	22	30	37	55	55
	I-660 / 690V	5.5	7.5	10	15	18.5	30	33	37	45	55
Ubushushu obuqhelekileyo (a)		20	20	32	40	50	60	80	80	125	125
Ubomi boMbane	I-AC3 (X104)	100	100	100	100	80	80	60	60	60	60
Ubomi boMbane	I-AC4 (X104)	20	20	20	20	20	15	15	15	10	10
Ubomi boMatshini (x104)		1000	1000	1000	1000	800	800	800	800	600	600
Inani labafowunelwa	I-3p + hayi					I-3p + NC + Hayi
Inani labafowunelwa	I-3p + NC					I-3p + NC + Hayi

Iimpawu zesakhiwo

Uyilo lwemodyuli: I-LC1-N Teectuctoctor Ac Asctor yamkisa uyilo olugqibeleleyo lomsebenzi opheleleyo, olulungele abasebenzisi ukuba bakhethe kwaye badibanise ngokweemfuno zabo.

Inkqubo ye-electromagnetic: kubandakanya i-electromagnetic coily kunye nentsimbi ephambili, eyinxalenye ebalulekileyo yomnxibelelanisi, exhomekeke kuyo ukuze iqhubekiswe ukuvalwa kunye nokudluliselwa kwabafowunelwa.

Inkqubo yoqhakamshelwano: kubandakanya ukuqhakamshelana nomfowunelwa okuphambili kunye nokunceda. Umfowunelwa ophambili usetyenziselwa ukunxibelelana nokwaphula isekethe ephambili kwaye ulawule okwangoku; Ukuqulunqwa komncedisi kukwisekethe yokulawula ukuhlangabezana neemfuno zeendlela ezahlukeneyo zokulawula.

Inkqubo yokucima i-Arc egxothiweyo: Ixhotywe ngesixhobo esikhuphuthiweyo se-ArC, ngokubanzi i-Semitudinal Slit Clay Arc ikhuphe isiphatho se-ARC sokuqinisekisa ukuba i-ARC icinyiwe ngokuthembekileyo, inciphise umonakalo we-ARC ngokuxhomekeka kubafowunelwa.

Umgaqo wokusebenza

Xa isetyhula yolawulo inamandla, i-elektromagnetic ivelisa intsimi yemagneti, etsala intsimbi yokuqhuba abafowunelwa ukuba sivale umfowunelwa, ngaloo ndlela iqhagamshela isethesini ye-compressor. Xa isekethe yokulawula inolwazi, intsimi yemagnethi inyamalale, i-Iron Core isethwe kwakhona phantsi kwentwasahlobo, umfowunelwa inqatshelwe, kwaye eyona parressoor ikhutshiwe.

Iiparamitha eziphambili

I-Inter Land Refload Foods: I-24V, 48V, 110v, 220v, 48v, 48V, 48V, 600V, 600v, 600v, i-600v, i-600v, i-600v, i-600v kunye nezinye iindlela onokukhetha kuzo.

I-gonch voltage: Ngokwesiqhelo (0.85 ~ 1.1) amaxesha olawulo lwexesha elimisiweyo.

Ukukhuphela i-voltage: Ngokwesiqhelo (0.2 ~ 0.75) amaxesha olawulo lwedrafti olwenzileyo.

Ixesha lokuFumaneka: Kuxhomekeke kwimodeli, ixesha lokucalula liyahluka, lihlala phakathi kwe-12 ~ 35ms.

Ixesha lokukhupha: kwakhona, ixesha lokukhupha iyahluka ngokuxhomekeke kwimodeli, ngokubanzi phakathi kwe-4 ~ms.

Ubomi boMbane: Kwicandelo le-AC-3 lokusebenzisa, ubomi bombane bunokuba namakhulu amawaka kwizigidi zamaxesha.

Ubomi boMatshini: Ubomi boomatshini buqhelekile kuluhlu lwezigidi ngezigidi zeengqokelela ezili-10.

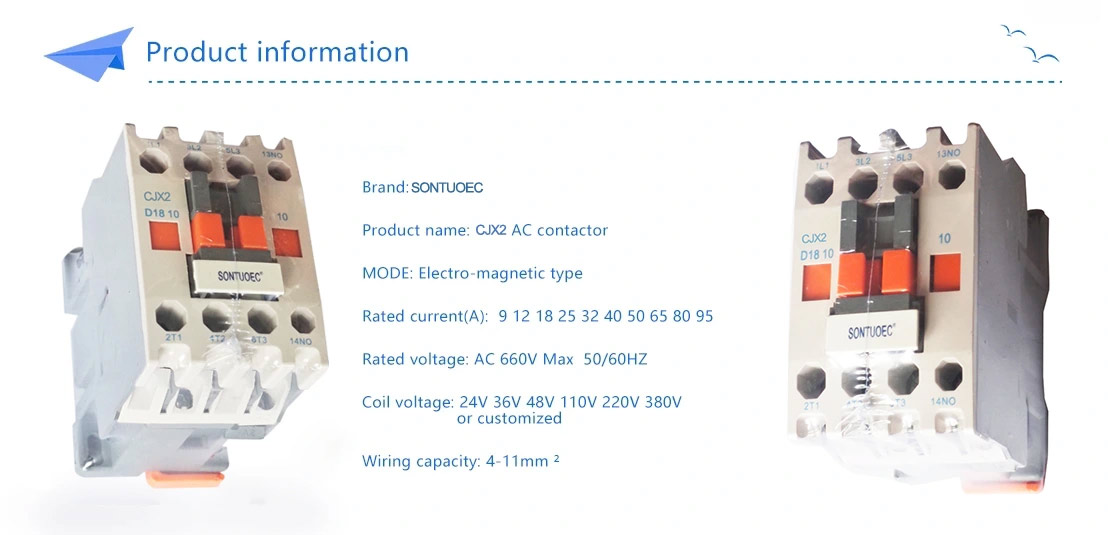

LC1- N Type AC Contactor
