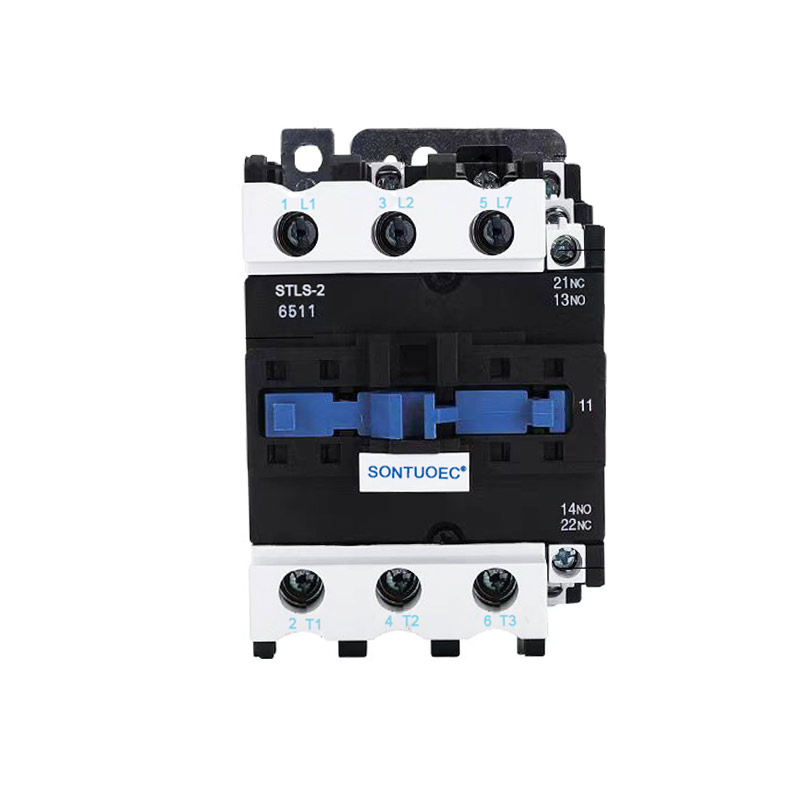

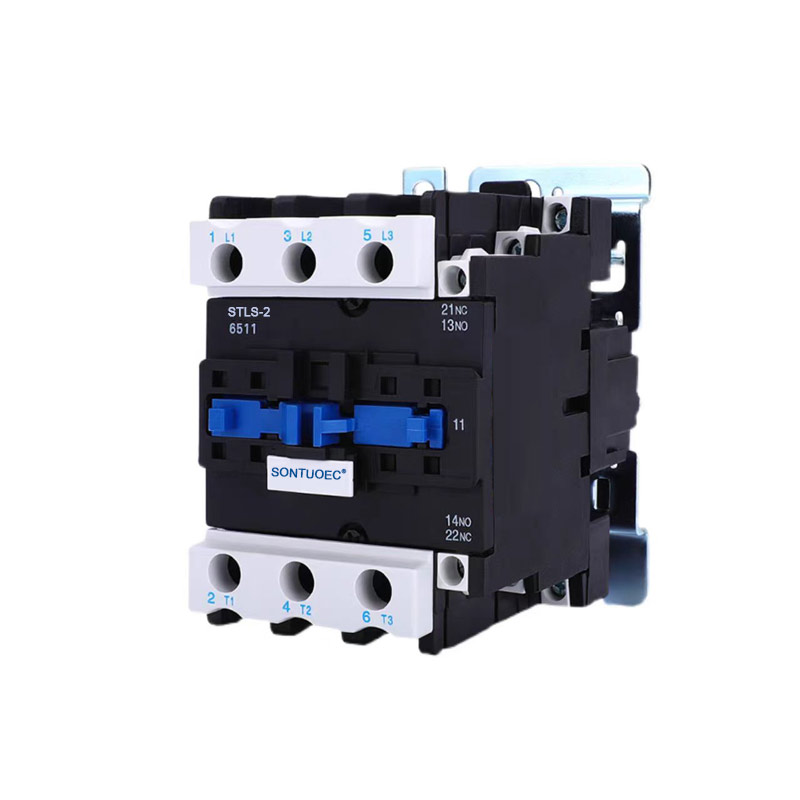

Stls-2(Cjx2) Series Mechanical Interlocking Contactor

I-Stls-2 (Cjx2) Series Mechanical Interlocking Contactor ilungele ukusetyenziswa kwiisekethe ukuya kwi-voltage elinganisiweyo 660V AC 50Hz, i-620A yangoku, yokulawula ukuguqulwa kwemoto. Esi sixhobo sokudibanisa koomatshini siqinisekisa utshintsho loqhagamshelwano lwabafowunelwa ababini abaguqukayo. Ihambelana neMigangatho ye-IEC60947-4-1.

Umzekelo:STLS-2(CJX2)

Thumela uMbuzo

Ingcaciso yeMveliso

Uhlobo		STLS-2	STLS-2	STLS-2	STLS-2	STLS-2	STLS-2	STLS-2	STLS-2	STLS-2	STLS-2
		9	12	18	25	32	40	50	63	80	95
									60
Ixabiso lombane we-insulatio		660	660	660	660	660	660	660	660	660	660
thermal eqhelekileyo		20	24	32	40	50	60	75	80	110	125
yangoku		20	24	32	40	50	60	75	80	110	125
Ilinganisiwe ukusebenza		9	12	16	25	32	40	50	63	80	95
yangoku		9	12	16	25	32	40	50	63	80	95
lawulwa	220V	2.2	3	4	5.5	7.5	11	15	18.5	22	25
amandla(kw)	380V	4	5.5	7.5	11	15	18.5	22	30	37	45
	415V	4	5.5	9	11	15	22	35	37	45	45
	440V	4	5.5	9	11	15	22	30	37	45	45
	660V	5.5	7.5	10	15	18.5	30	33	37	45	45
Phawula		Ufakelo lwe					Ufakelo lwe
		iireyidi zingasebenzisa izikrufu ezibini					iilayidi inkonkxa ezintathu
		kwaye usebenzise i35mm					izikrufu kwaye usebenzise i
		umzila kaloliwe					75mm okanye 35mm ufakelo
							uloliwe

Isakhiwo kunye neempawu

Ulwakhiwo:

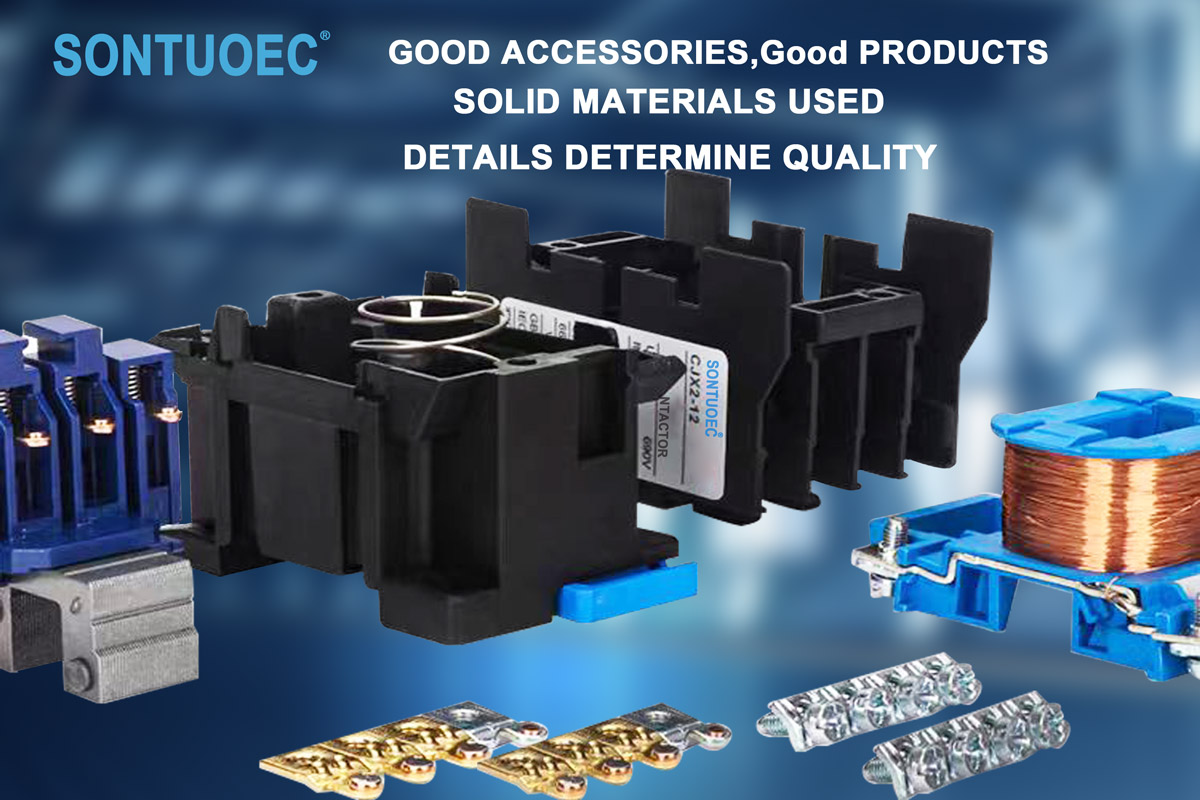

I-3P AC Contactor ngokuqhelekileyo iqulethe inkqubo ye-electromagnetic (kubandakanywa icoil, i-core, njl.), inkqubo yoqhagamshelwano (kubandakanywa uqhagamshelwano oluphambili kunye noqhagamshelwano oluncedisayo), i-arc yokucima isixhobo kunye negobolondo kunye nezinye iindawo. Phakathi kwabo, uqhagamshelwano oluphambili lusetyenziselwa ukuthwala i-current high, kwaye uqhagamshelwano oluncedisayo lusetyenziselwa ukuqonda ukuhanjiswa kunye nengxelo yezibonakaliso zokulawula.

Iimbonakalo:

Ngabafowunelwa abathathu abazimeleyo, inokulawula amandla amanqanaba amathathu kunye nomgca we-zero ngexesha elinye.

Inkqubo yoqhagamshelwano yenziwe ngezinto ezisemgangathweni ophezulu kunye ne-conductivity efanelekileyo kunye nokumelana nokugqoka.

Inkqubo ye-electromagnetic inamandla okwaneleyo okufunxa ukuzibandakanya ngokuthembekileyo kunye nokukhulula abafowunelwa.

Isixhobo sokucima i-arc sinokucima ngempumelelo i-arc eyenziwe xa abafowunelwa benqanyuliwe, ukukhusela abafowunelwa kumonakalo.

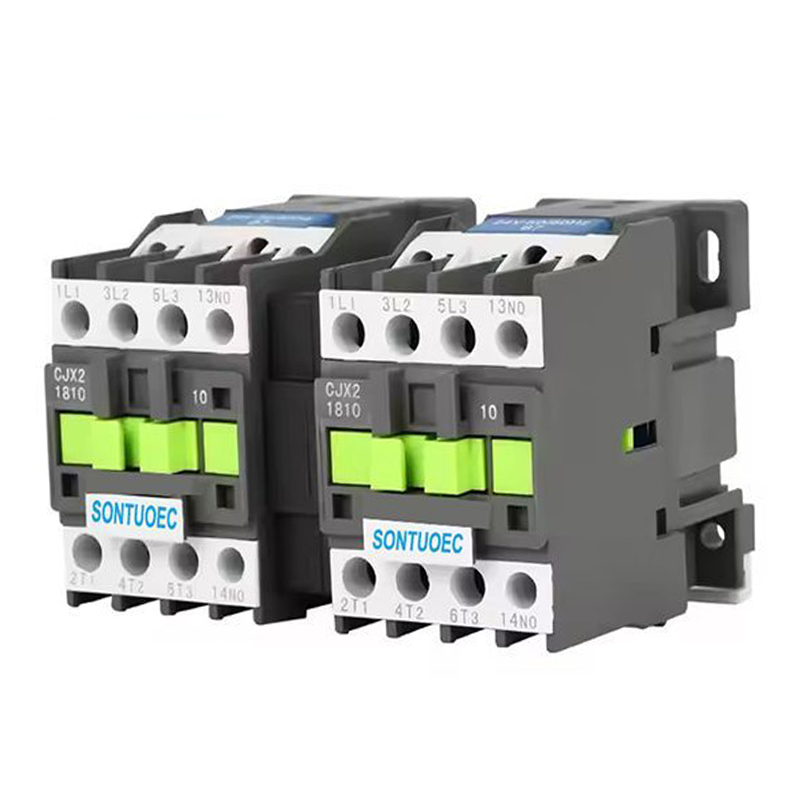

Stls-2 (Cjx2) Series Mechanical Interlocking Contactor ilungele ukusetyenziswa kwiisekethe i-voltage elinganisiweyo ukuya kuthi ga kwi-660V AC 50Hz okanye i-60Hz, ihlelwe ngoku ukuya kwi-95A, ukwenza kunye nokuphuka, ukuqala rhoqo kunye nokulawula i-AC motor. Idityaniswe nebhloko yoqhagamshelwano encedisayo, ukulibaziseka kwexesha kunye nesixhobo sokudibanisa umatshini njl njl, iba ngumnxibelelanisi wokulibaziseka, i-mechanical interlocking contactor, star-delta starter. Nge-relay ye-thermal, idityaniswe kwi-electromagnetic starter. Umnxibelelanisi uveliswa ngokwe-IEC 60947-1.

Umgaqo wokuSebenza

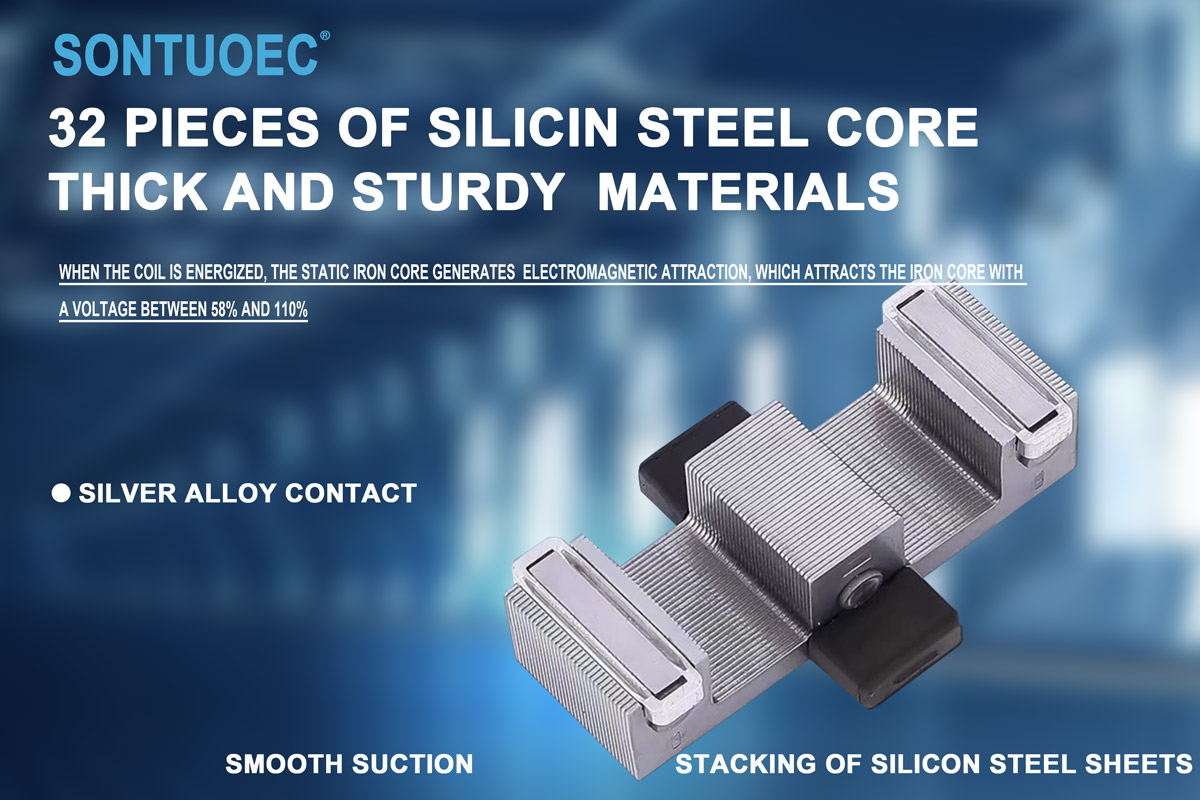

Xa i-coil ye-3P AC Contactor inikwe amandla, i-iron core ivelisa i-magnetism kwaye itsala inkqubo yoqhagamshelwano ukuba ivale, ngaloo ndlela idibanisa unikezelo lombane lwesigaba sesithathu kunye nocingo lwe-zero. Xa i-coil i-de-energized, i-core ilahlekelwa yi-magnetism yayo kwaye inkqubo yoqhagamshelwano iyahlula phantsi kwesenzo se-spring, ngaloo ndlela ikhupha umbane wesigaba sesithathu ukusuka kumgca we-zero. Ngale ndlela, i-3P AC Contactor inokuqonda ulawulo olukude lwemithwalo yombane.

Iimeko zeSicelo

I-3P AC Contactor isetyenziswa ngokubanzi kwiinkqubo zamandla ezahlukeneyo ezifuna ukulawula amandla amanqanaba amathathu kunye nomgca we-zero ngexesha elinye, njenge:

Intsimi ye-automation ye-industrial: isetyenziselwa ukulawula ukuqala kwemoto, ukumisa kunye nokubuyisela umva imisebenzi.

Inkqubo yamandla: isetyenziselwa ukuqonda ulawulo olukude kunye nokhuseleko lwenkqubo yamandla.

Ukwakha i-automation: isetyenziselwa ukulawula ukuqala kunye nokuyeka ukukhanya, umoya womoya kunye nezinye izixhobo.
