4P RCBO AC Uhlobo

Uhlobo lwe-4P RCBO AC luyi-4-pole breaker circuit breaker edibanisa ukukhuselwa kwangoku okushiyekileyo kunye nemisebenzi yokukhusela i-overcurrent, ngokukodwa eyenzelwe ukutshintshiselana kweesekethe zangoku (AC). Inokuthi inqumle unikezelo lwamandla ngokuzenzekelayo xa intsalela yangoku (okt ukuvuza kwangoku) ifunyenwe kwisekethe ukuthintela imililo yombane kunye neengozi zokothuka zombane. Ngelo xesha, nayo inomsebenzi wokukhusela ogqithisiweyo onokuthi unqumle ngokuzenzekelayo ukunikezelwa kwamandla xa kwenzeka ukugqithisa okanye i-short-circuit kwisekethe ukukhusela ukhuseleko lwesiphaluka kunye nezixhobo.

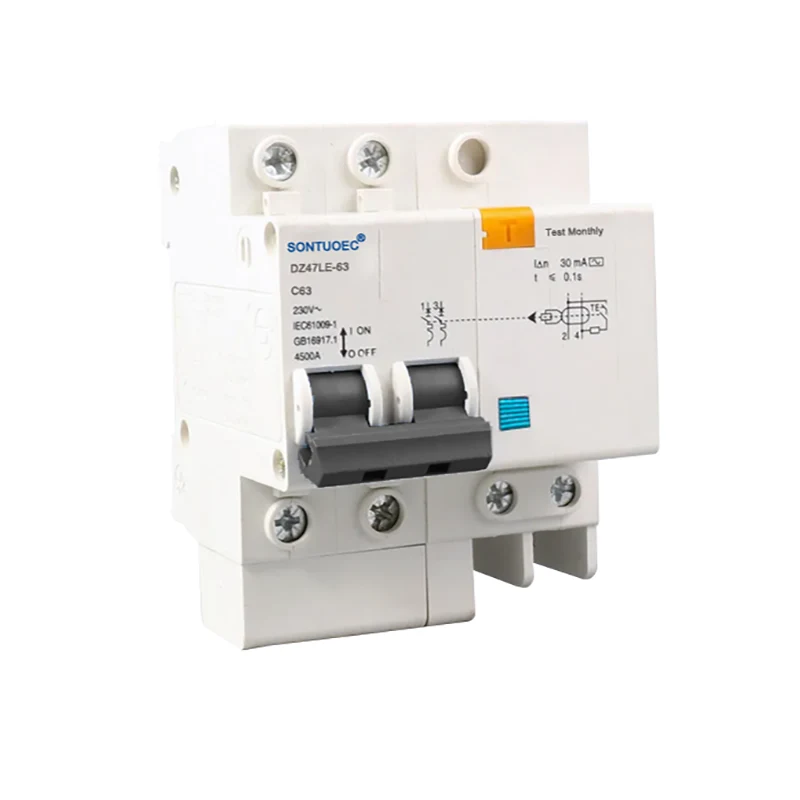

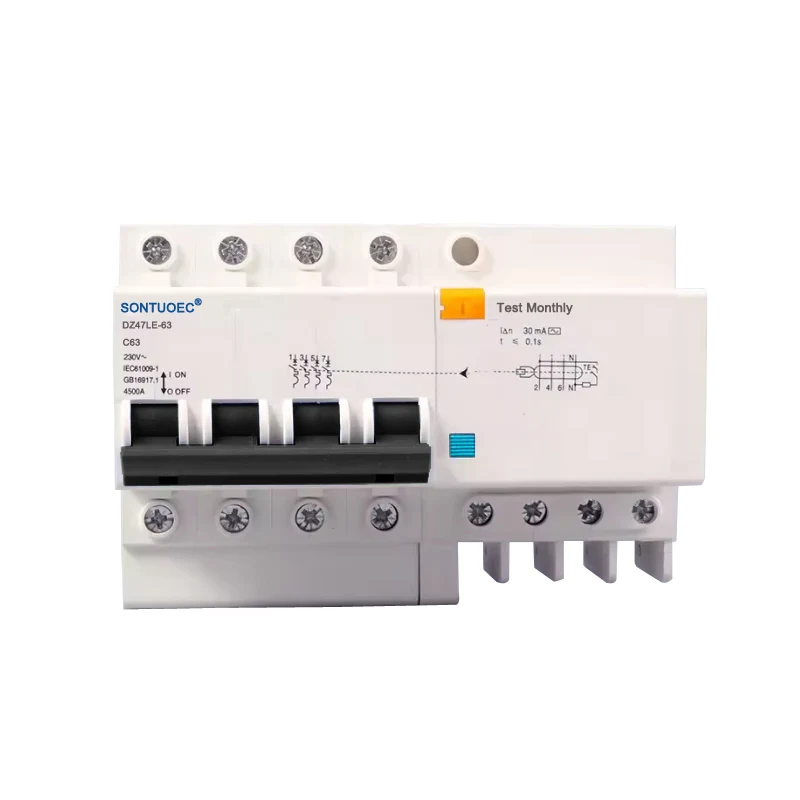

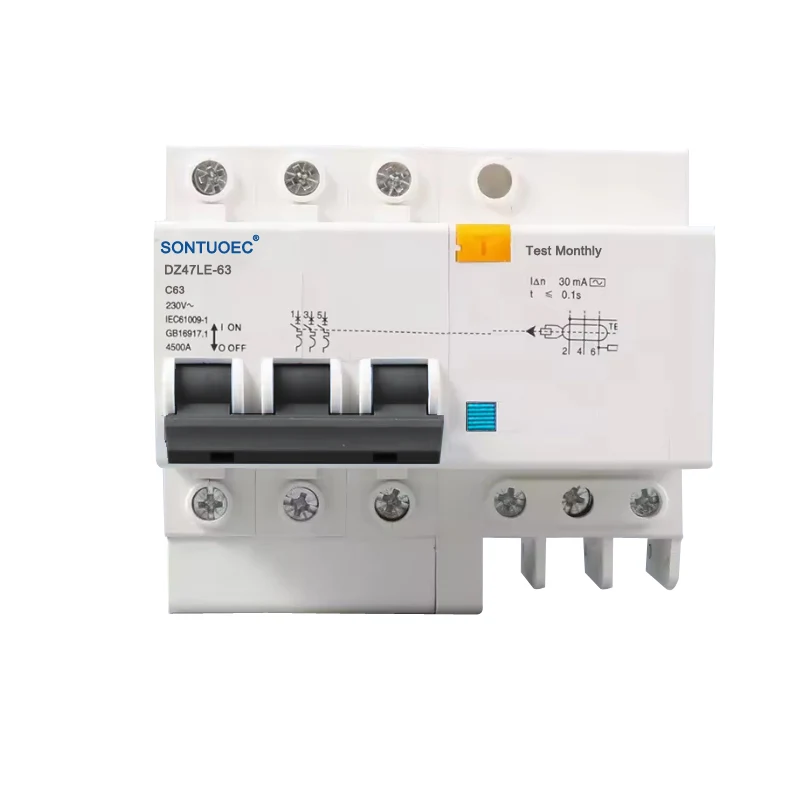

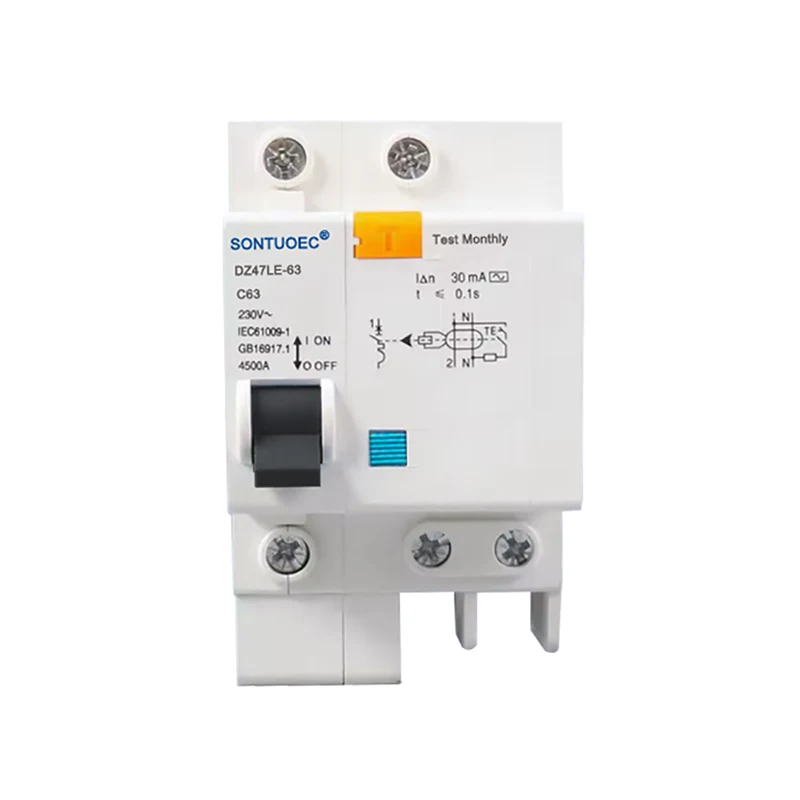

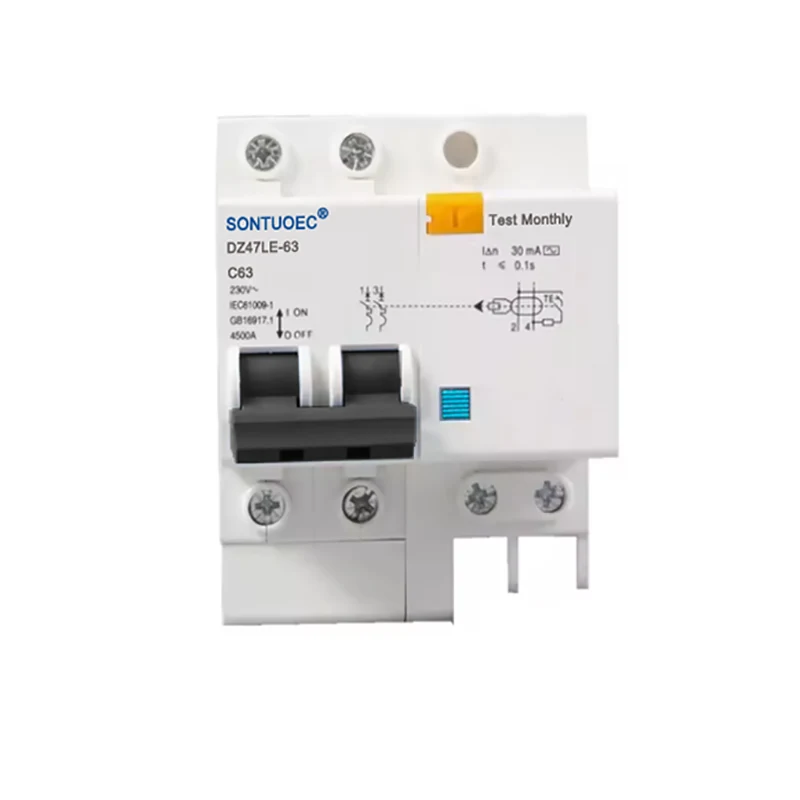

Umzekelo:DZ47LE-63

Thumela uMbuzo

Ingcaciso yeMveliso

igama	I-Residual Circuit Breaker kunye noKhuseleko oluPhezulu
Iimbonakalo	ukulayisha ngaphezulu / isiphaluka esifutshane / ukukhuselwa kokuvuza
I-Pole No	1P/2L, 2P/2L, 3P/3L, 3P/4L 4P/4L
Ukwaphulwa kweSakhono	3kA,4.5KA,6KA
Ikalwe Yangoku(A)	6A,10A,16A,20A,25A,32A, 40A,63A
Ireyithwe intsalela yokusebenza yangoku:	10mA, 30mA, 100mA, 300mA, 500mA
Ikalwe IVoltge(V)	240/415v
ukufakela	uhlobo kaloliwe din
umgangatho	IEC61009-1, GB16917-1
isiqinisekiso	CE

Umgaqo wokusebenza

Umgaqo wokusebenza wohlobo lwe-4P RCBO AC usekwe kwisixa se-vector yemisinga kunye nemigaqo ye-electromagnetic. Xa imisinga kwisekethe kumlilo (L) kunye ne-zero (N) iingcingo azilingani ngobukhulu, isixa se-vector yemisinga kwicala eliphambili lesekethe ye-transformer ayikho i-zero, eyenza i-voltage e-induced kwi-coil yecala lesibini. Lo mbane wenziwayo wongezwa kwi-electromagnetic relay, uvelisa umsinga wokuvuselela odala amandla okubuyisela umva wokuyeka uzibuthe. Xa impazamo yangoku ifikelela kwixabiso elisebenzayo langoku le-RCBO, la mandla okubuyisela umva i-demagnetizing aya kubangela ukuba i-armature engaphakathi kwe-electromagnetic relay ikhuphe idyokhwe, ityhala indlela yokusebenza ukuba isebenze kwaye inqumle isekethe yangoku.

I-DZ47LE-63 uchungechunge lwe-elektroniki lokukhusela ukuvuza kwesekethe i-breaker circuit ifanelekile kwisigaba esisodwa sesiphaluka sokuhlala se-AC 50Hz / 60Hz, i-voltage elinganisiweyo ye-230V, kunye ne-6A ~ 63A yangoku; I-400V yesiphaluka sesigaba sesithathu se-AC 50Hz/60Hz. Inokukhusela ukugqithiswa kwefom yesiphaluka kunye nesiphaluka esifutshane. Le mveliso ineenzuzo zomthamo omncinci, umthamo ophezulu wokuphulwa, i-wire ephilayo kunye nomgca we-zero unqunyulwe ngexesha elifanayo, kwaye ukhusela umntu ekutshitshisweni kokuvuza kombane kwimeko yocingo lomlilo kunye nomgca we-zero odibeneyo reverse.

Ihambelana nomgangatho we-IEC61009-1,GB16917.1.

Uphawu:

1) .Ibonelela ngokhuseleko ngokuchasene nombane, isiphene somhlaba, ukuvuza kwangoku;

2) .Inika ukhuseleko ekugqithiseni, i-short-circuit kunye ne-over-voltage;

3). Umthamo omncinci, umthamo ophezulu wokuqhawula; ucingo oluphilayo kunye nomgca we-zero unqunyulwe ngexesha elifanayo;

4). Ubungakanani obuncinci kunye nobunzima, ukufakwa lula kunye ne-wiring, ukusebenza okuphezulu kunye nokuqina

5). Ukubonelela ngokuchasene nokukhubeka kwe-misoperation okubangelwa kumbane okhawulezayo kunye nomsinga okhawulezileyo.

Iimpawu kunye neeNzuzo

Ukukhuselwa kwemisebenzi emininzi: Uhlobo lwe-4P RCBO AC ludibanisa ukukhuselwa kwangoku okushiyekileyo kunye nokukhusela okugqithisiweyo ukubonelela ngokhuseleko olubanzi lweesekethe kunye nezixhobo.

Uvakalelo oluphezulu: Ukhuseleko olubuthathaka kakhulu kwisicelo sequbuliso okanye ukunyuka okucothayo kwentsalela ye-sinusoidal AC yangoku iqinisekisa ukudityaniswa.

Uluhlu olubanzi lwesicelo: Ifanelekile kwiisekethe ze-AC kwiinkqubo zasekhaya, zoshishino kunye nezorhwebo zokusasazwa kwamandla, ngokukodwa kwi-wire-one-one-zero wiring.

Kulula ukuyifaka kunye nokugcina: uyilo olufanelekileyo lwesakhiwo, kulula ukuyifaka, kwaye kwangaxeshanye kulula ukwenza ukugcinwa kunye nokulungiswa.

Iimeko zeSicelo

I-4P RCBO AC Uhlobo lusetyenziswa ngokubanzi ukukhuselwa kweesekethe ze-AC kumakhaya, iiofisi, indawo zorhwebo kunye nezixhobo zoshishino. Ilungele ngokukodwa izicelo ezifuna ukukhuselwa kweengcingo zoMlilo kunye neZero, ezifana neesekethe zokukhanyisa, iisekethe zesokethi kunye nokukhuselwa kwezixhobo ezifana neenjini.
