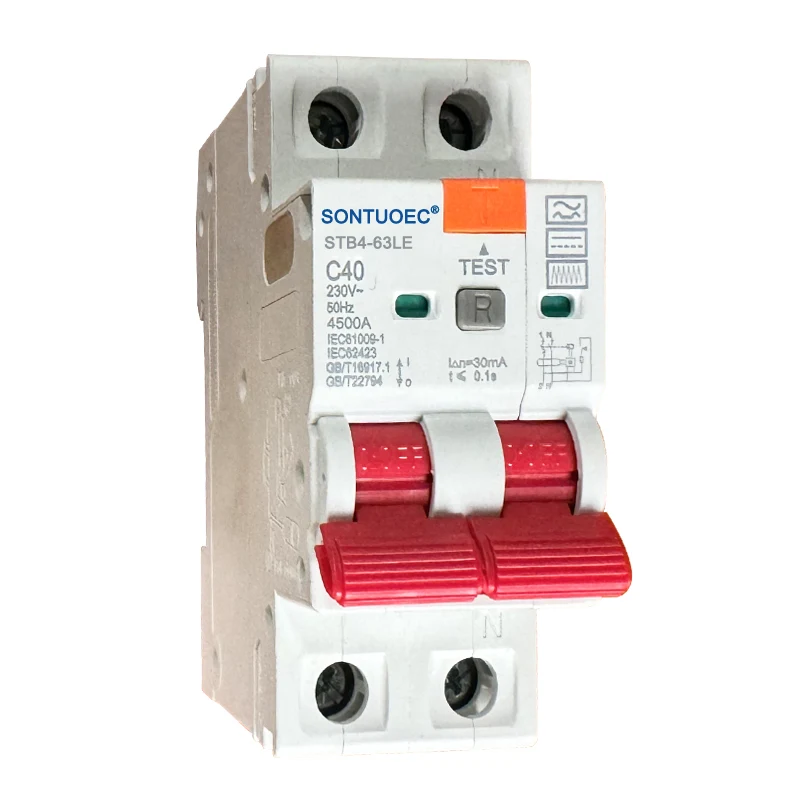

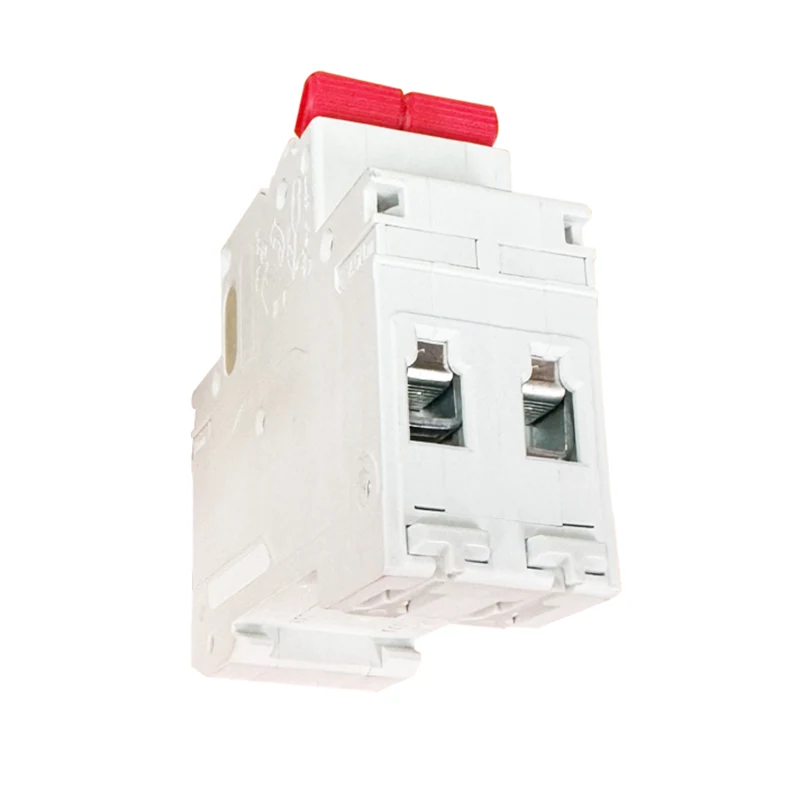

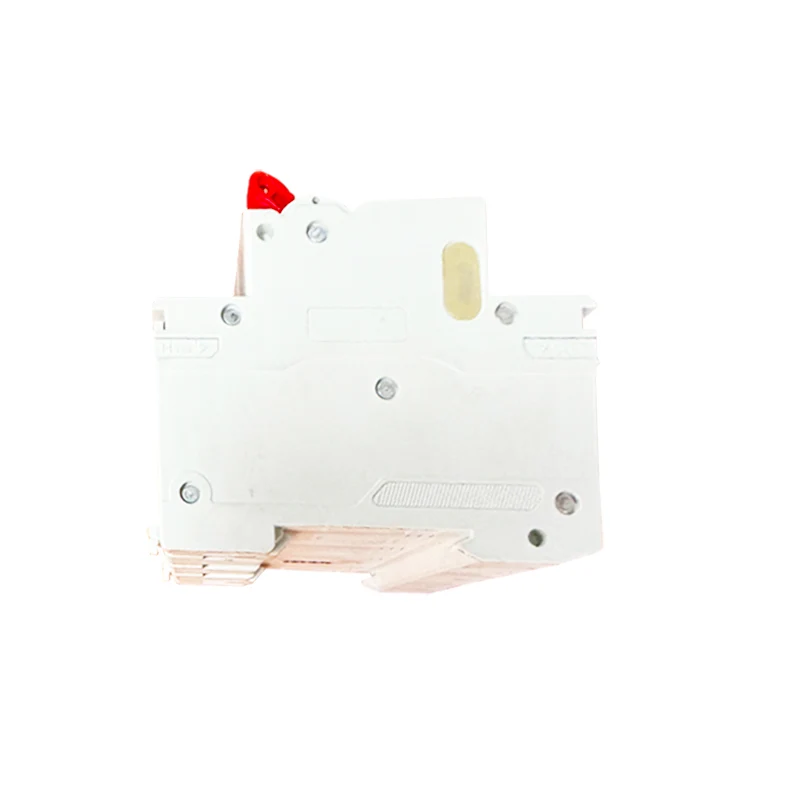

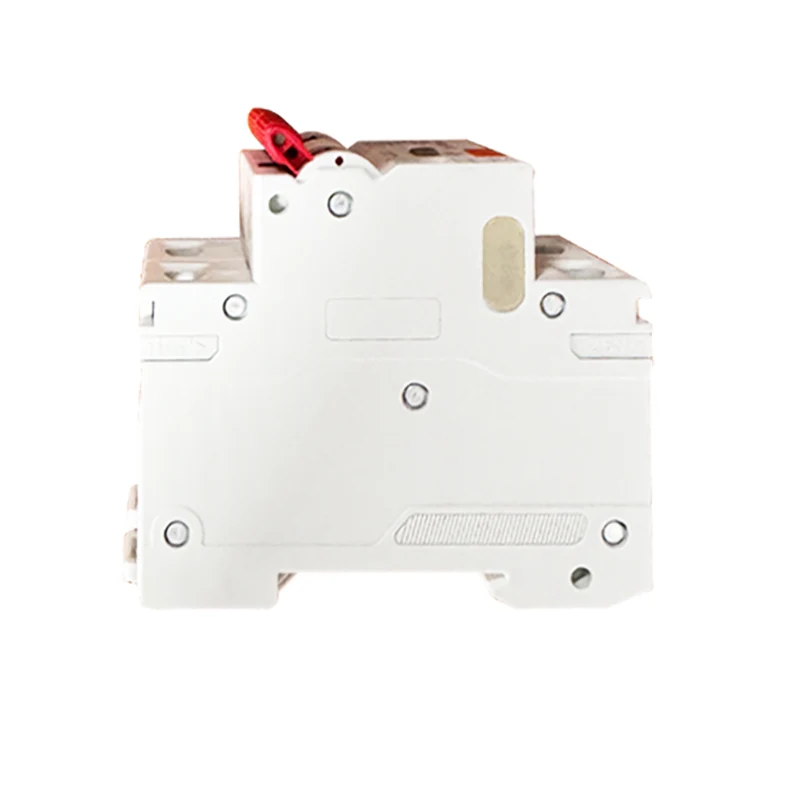

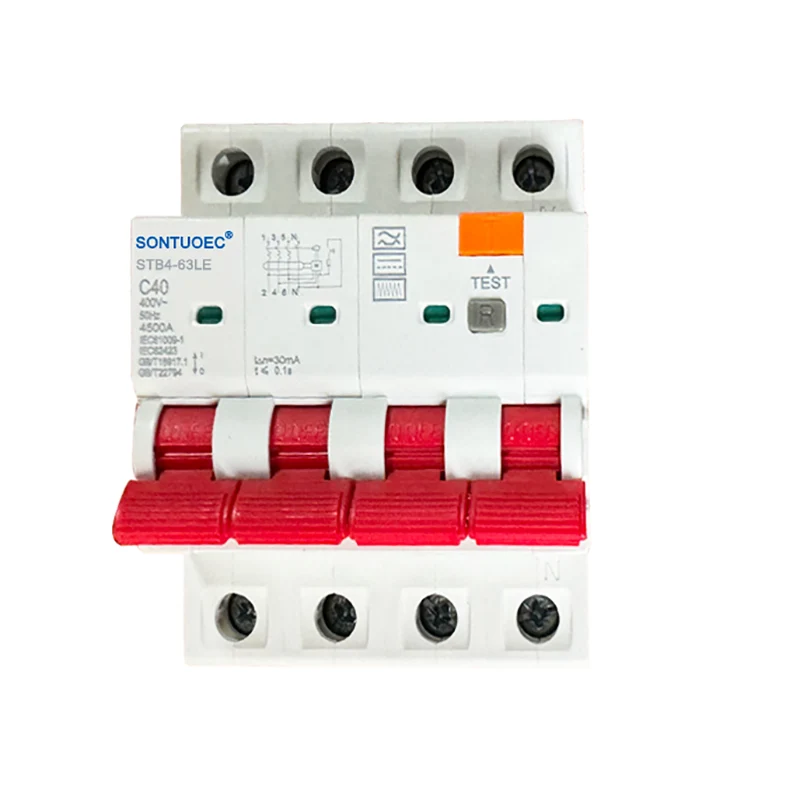

I-2p rcbo b uhlobo

I-2p ye-RCbo B Uhlobo lomphulaphuli omabini olwenziweyo ngokugqithileyo Uhlobo oluthi "luhlala lubhekisa kuhlobo oluthile okanye ukucaciswa komphuli wesekethe, olunokubandakanya iimpawu zokusebenza, ikalwe nge-voltage yangoku, ezinye iiparamitha zesekethe.

Umzekelo:STB2-63LE

Thumela uMbuzo

Ingcaciso yeMveliso

	Umgangatho	Iyunithi	IEC / I-61009-1 kunye ne-IEC / En62423
Umbane Iimbonakalo	Imowudi		Uhlobo lwe-elektroniki
	Chwetheza (uhlobo lomhlaba ukuvuza kwevaliwe)		B
	Ukukhutshwa kwe-thermic phawula		B, c, d
	Ikalwe yangoku ln	A	I-6,10,16,20,20,35,32,40; 63,80A
	Izibonda	P	I-1p + n, 3P + n
	I-voltage ye-UE	V	I-AC 230, 400
	Imvakalelo ye-△ △ n	A	I-0.01, 0.03, 0.1, 0.3, 0.5
	Idlule okwentsalela kunye nokuqhekeza Umthamo l △ m	A	500
	I-ICN yesekethe esiMbane	A	6000
	Ixesha lokuphumla phantsi kwam △ n	S	≤0.1
	Idlwengulwe rhoqo	Hz	I-50/60
	I-Deatity -ithstand I-Voltage (1.2 / 50) I-UIMP	V	4000
	I-Deectric Vintul Voltage kwi I-Indreq ye-1min	kv	2
	I-inshurensi yombane	V	250
	Isidanga sokungcola		2
Umatshini Iimbonakalo	Ubomi boMbane		4000
	Ubomi boMatshini		10000
	Isalathisi esikhoyo		EWE
	Isidanga sokhuselo		IP20
	Ubushushu obugciniwe (nge-avareji yemihla ngemihla)	ºc	-5 ~ + 40 (Isicelo esikhethekileyo nceda ujonge Ukulungiswa kweqondo lobushushu)
	Iqondo lokugcina	ºc	-25 ~ + 70
Ufakelo	Uhlobo lwesiphelo		I-Cable / I-PIN-Uhlobo lwe-pin-Uhlobo ityholo
	Ubungakanani besiphelo sendlela ephezulu / ezantsi intambo	mm2	25
	Ubungakanani besiphelo sendlela ephezulu / ezantsi intambo	I-awg	I-18-5
	Ubungakanani besiphelo sendlela ephezulu / ezantsi ityholo	mm2	25
	Ubungakanani besiphelo sendlela ephezulu / ezantsi ityholo	I-awg	18-3
	Ukunyuka		Kwi-DIN RAL RALS AMA-60715 (35mm) ngendlela Isixhobo seklip ekhawulezayo
	Uqhagamshelo		Ukusuka phezulu

Iimpawu eziphambili kunye neeparamitha

Iimpawu zentshukumo: 2p 4p ye-2P 4P ye-RCbo B inomsebenzi osele entsalela, xa intsalela yentsalela (i.e. Ukuvuselelwa kwesekethe) kwiseti yesekethe yokuthintela iingozi zothusi zothusa zomoya kunye nemililo yombane.

I-RCIT kwimodeli kunye neenkcazo, i-100 ye-RCbo B, kodwa i-60a, engama-60a, i-80a, njalo njalo.

Uhlobo lwe-voltage: I-2P 4P 4P ye-2P ye-RCbo ye-B iqhelekile kwi-AC ye-240V ye-AC yeemeko zekhaya nezorhwebo.

I-Rapecancy: Irenti yerenti yalo mthetho wesekethe ihlala ingama-50 / 60hz, ehambelana ne-frequency yoncedo lwamandla kumazwe amaninzi nakwimimandla.

Umthamo wesekethe omfutshane: Uhlobo lwe-2P 4P ye-2P ye-RCbo ye-B inomthamo wesekethe omfutshane, njenge-6ka okanye i-10 Okka, eyakho ukumelana nomothuko omkhulu ngaphandle kwetyala elifutshane.

Inyathelo lokuvuza okwangoku: Inyathelo leLeakege okwangoku kulo mthetho wesekethe lihlala lingama-30me okanye ngaphantsi, elihlangabezana neemfuno zeKhomishini yeMigangatho ye-Eleenterchnical (i-IEC) kunye nokukhusela ukhuseleko lwakho lwesizwe, kwaye unokukhusela ngokuphumelelayo.

I-RCBO isetyenziswa ikakhulu kwi-AC 50hz (60hz), i-voltage ye-230 / 400v, ireji ye-6A ukuya kwi-40a yokusasaza isiphelo semifanekiso. I-RCBO ilingana noMcB + i-RCD Umsebenzi; Isetyenziselwa ukhuseleko olothusayo lombane kunye nokukhuselwa komntu ngokungathanga ngqo, ukhuselo lwezixhobo zombane xa umzimba wombane okanye inethiwekhi yombane idlula ixabiso elichaziweyo, kunye nokhuseleko lwesekelo olufutshane kunye nomthwalo wesekelo olufutshane kunye nokhuseleko lwesekelo olufutshane kunye nomthwalo wesekelo. Inokuba ngumqhubi ongesosiphaluka kwisekethe, esetyenziswa endle kwiSithili sokuhlala kunye neSithili seRhafu. Ihambelana nomgangatho we-IEC61009-1.

Isicelo kunye nokufakelwa

Isicelo: 2p 4p I-BCBo B ilungele ukhuseleko lwesekethe lokusasaza kwamandla elifuna ulawulo lwayo zombini umlilo kunye nezinye iisekethe ezikwindawo yasekhaya, yorhwebo, imizi-mveliso nakwezinye iindawo.

Ukufakelwa: Ukophulwa kwesekethe kuhlala kuthabatha i-din-rail ye-din-rail ye-din-rail ye-din-rail, ilungele ukufakelwa ngokukhawuleza kunye nokususwa kwibhokisi yokuhambisa okanye iKhabhinethi yokuHambisa.

I-Wiring: 2p 4p ye-RCbo B iguqulwe i-wiring kwaye inokuqhagamshelwa kwiSigaba seSigaba seSithathu, isigaba seSithathu se-Wire okanye imijikelezo emithathu. Xa i-wiring, iqinisekisa ukuba umlilo, zero kunye neengcingo zomhlaba zidityanisiwe ukuthintela umngcipheko wokothuka kombane kunye nomlilo wombane.
