Iimveliso > Umephuli wojikelezo > Ukungatsha kwesekethe ngaphambi kokhuseleko olugqithisileyo > I-Stro6-40 I-Circuit Breaker ye-DIN ye-Rail Type yokuFakela i-RCBO

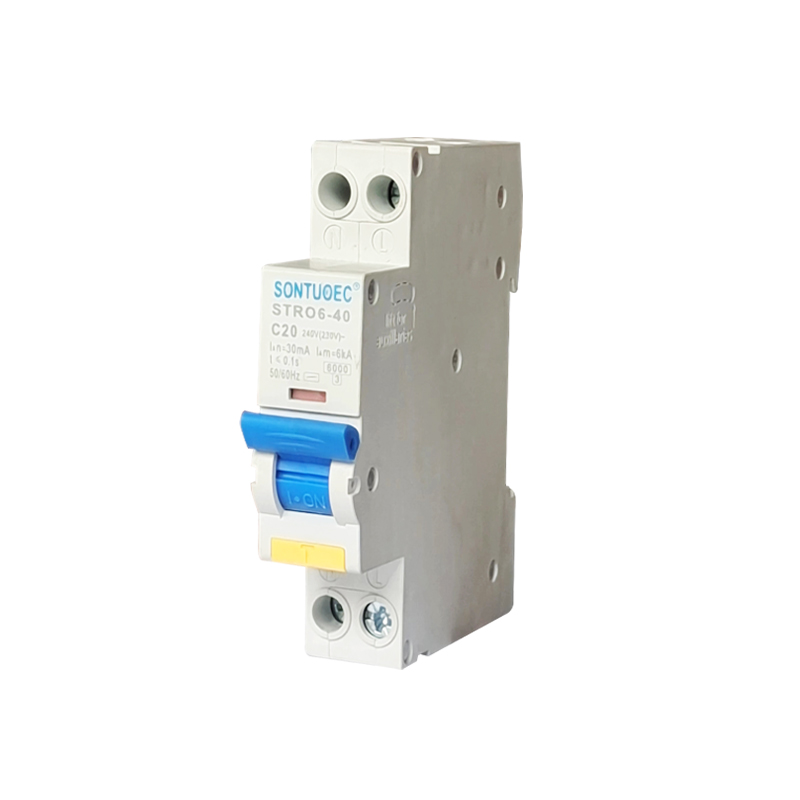

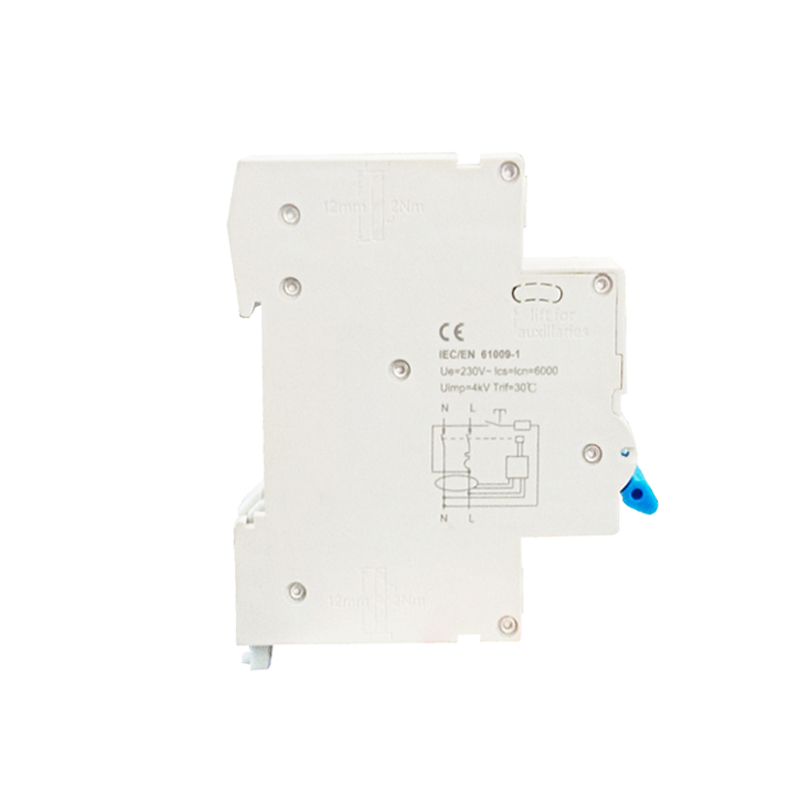

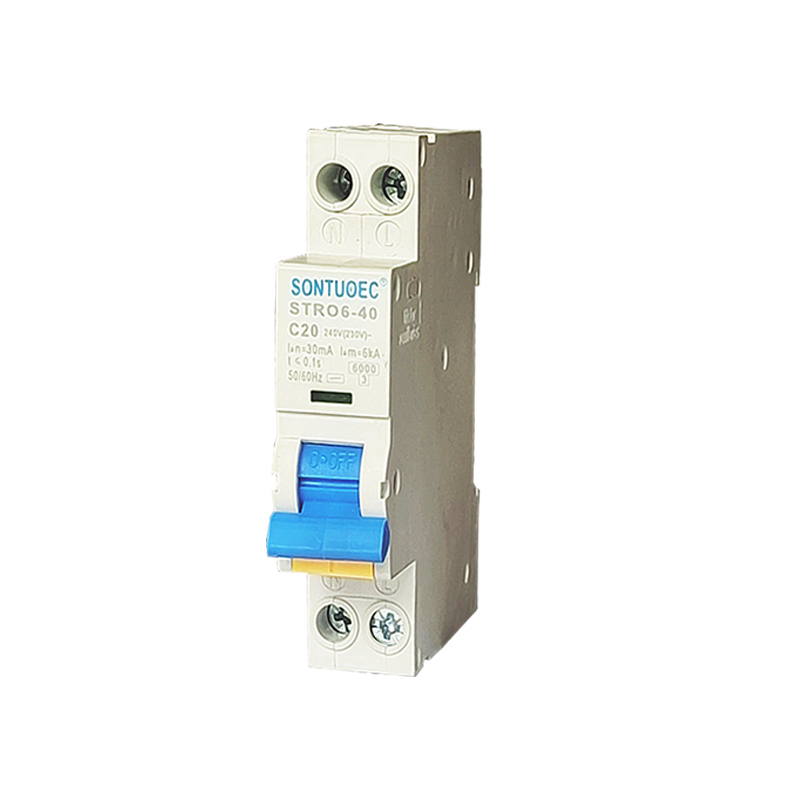

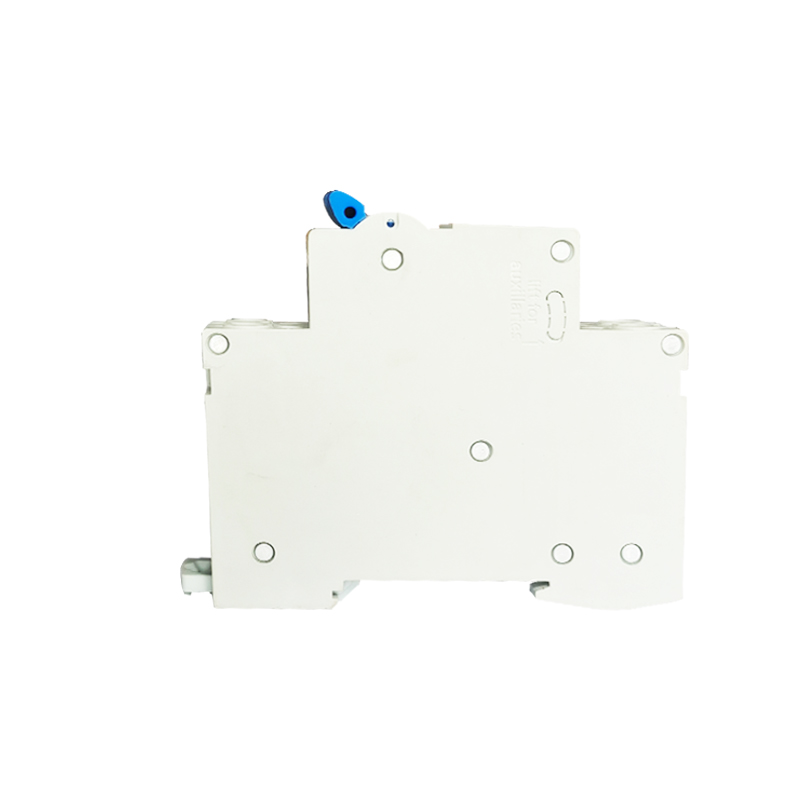

I-Stro6-40 I-Circuit Breaker ye-DIN ye-Rail Type yokuFakela i-RCBO
I-SONTUOEC ngomnye wababoneleli kunye nabavelisi eTshayina. I-Stro6-40 ye-Circuit Breaker ye-DIN yokuFakela i-Rail Type ye-RCBO ithobela umgangatho we-IEC61009. I-RCBO efakwe kwi-RCBO ye-STRO6-40 i-circuit breaker yi-switch kwi-residual current circuit breaker circuit, isetyenziselwa ukuthintela ukutshitshiswa kombane kunye nokubonelela ngokugqithiswa, isiphaluka esifutshane kunye nolunye ukhuseleko lwemigca kunye nezixhobo.
Umzekelo:STRO6-40
Thumela uMbuzo
Ingcaciso yeMveliso
| Sandard | IEC/EN61009 | ||
| Iimpawu zombane | Uhlobo(amaza uhlobo lokuvuza komhlaba olubonakalisiweyo) | I-Electro-magnetic uhlobo, uhlobo lwe-elektroniki | |
| Ikalwe ngaphakathi | A | A,AC | |
| Iipali | P | 2,4 | |
| Umbane olinganisiweyo | V | AC 240/415 | |
| Ikalwe ngoku : | 6A,10,16,20,25,32,40A | ||
| Uvakalelo olulinganisiweyo I△n | A | 0.01,0.03,0.1,0.3,0.5 | |
| I-Insulation voltage Ui | V | 500 | |
| Ireyithiwe ukwenza intsalela kunye | A | 630 | |
| ukophula umthamo I△m | |||
| I-short-circuit current I△c | A | 6000 | |
| Ifuse ye-SCPD | A | BitmapBitmapBitmapBitmap
|
|
| Ilinganiswe rhoqo | Hz | 50/60 | |
| Isidanga songcoliseko | 2 | ||
| Iimpawu zoomatshini | Umbane ubomi | t | 4000 |
| Ubomi bomatshini | t | 10000 | |
| Isidanga soKhuseleko | IP20 | ||
| Ubushushu obugciniwe | ºC | -25~+40 | |
| (ngomndilili wemihla ngemihla ≤35ºC) | |||
| Ubushushu bokugcina | ºC | -25~+70 | |
| Ukuhlohla | Itheminali uhlobo loqhagamshelwano | Ikhebula/U-uhlobo busbar/pin-uhlobo lwebhasi | |
| Ubungakanani betheminali phezulu/ezantsi kwintambo | mm2 | 25 | |
| AWG | 18-3 | ||
| Ubungakanani betheminali phezulu/ezantsi kwibha yebhasi | mm2 | 25 | |
| AWG | 18-3 | ||
| Ukuqinisa itorque | N*m | 2.5 | |
| Ngaphakathi-lbs | 22 | ||

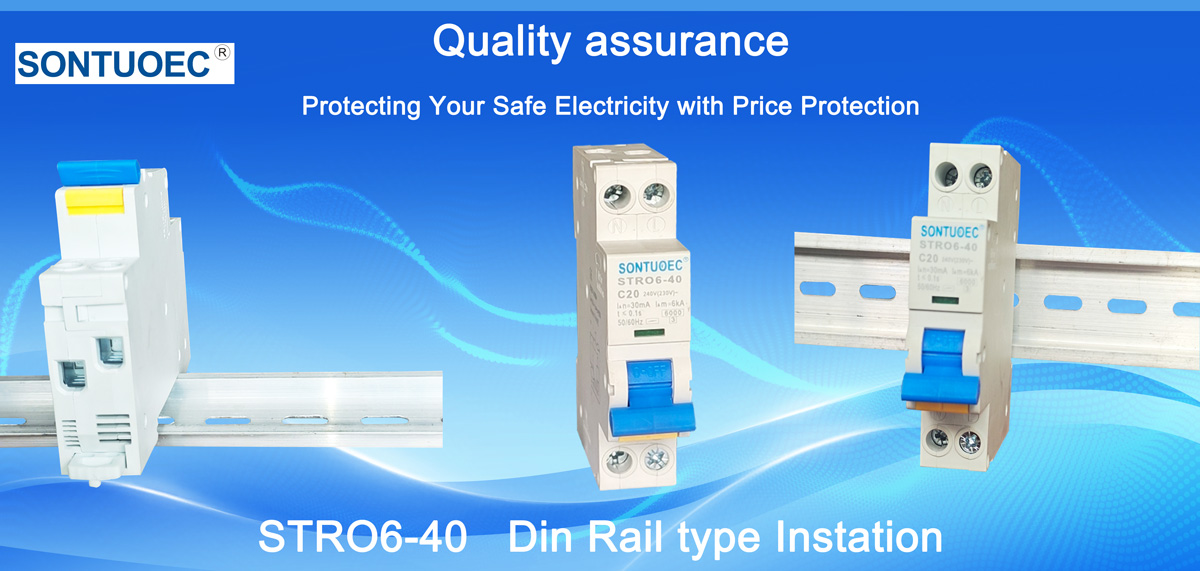

| Ukunyuka | Vula Umzila kaloliwe we-DIN EN 60715(35mm) ngesixhobo sokuqhotyoshwa ngokukhawuleza | ||
| Uqhagamshelwano | Ukusuka phezulu nasezantsi | ||
I-Stro6-40 I-Circuit Breaker ye-DIN ye-Rail Type yokuFakela i-RCBO
iMveliso ngaphezulu kokuJonga:
1. Ukubonelela ngokhuseleko kwimpazamo yomhlaba / ukuvuza kwangoku kunye nomsebenzi wokuzihlukanisa
2. Umthamo okhoyo wesekethe ephezulu yokumelana nomthamo
3. Isebenza kwitheminali kunye nephini/uhlobo lwefolokhwe yoqhagamshelwano lwebhasi
4. Ixhotyiswe ngeetheminali zoqhagamshelwano ezikhuselweyo ngomnwe
5. Nqamula ngokuzenzekelayo isekethe xa impazamo yomhlaba/ukuvuza kwangoku kusenzeka kwaye kudlule uvakalelo olulinganiselweyo.
6. Ukuzimela kokunikezelwa kwamandla kunye nombane wombane, kwaye ukhululekile ekuphazamisekeni kwangaphandle, ukuguquguquka kwamandla ombane.
FAQ
Umbuzo 1. lithini ixesha lokuhlawula?
A. Samkela i-TT, i-30% idiphozithi kunye ne-70% ibhalansi ngokuchasene nekopi ye-BL
Umbuzo 2. linjani ixesha lokuhambisa?
A. ngokuqhelekileyo kuya kuthatha malunga neentsuku ezingama-25 ukuveliswa
Umbuzo 3. ndixelele umgangatho wephakheji?
A. Ngokuqhelekileyo iibhokisi, kodwa sinako ukuyipakisha ngokwemfuno yakho.
Umbuzo 4.Ngaba uyavuma ukusebenzisa ilogo yethu ?
A. Ukuba unobungakanani obuhle, akukho ngxaki ukwenza iOEM.
Q5. Ndingathatha iisampulu?
A: Ewe, sixhasa ukuthatha iisampulu ngaphambi kokubeka iodolo. Zive ukhululekile ukunxibelelana nathi ukuba unayo naziphi na iimfuno.
Q6. Ngaba uyiFactory yokuqala?
A: Ewe, sinowethu umzi-mveliso.
Q7. Ungaqinisekisa njani umgangatho weemveliso?
IMPENDULO: Siya kuvumelana nemigangatho yomgangatho wamazwe ngamazwe ukuba sihlole yonke into phambi kokuba sihambe kumzi-mveliso wethu.
