I-STM2 IXESHA LOKUVULA

I-STM2 IXESHA LOKUVUNYELWA KWE-STM Sisixhobo sokhuseleko sombane esiphethe ngaphezulu, isiphaluka esifutshane kunye nokukhuselwa kwe-dendolltage, isetyenziswe ngokubanzi kwiinkqubo zokuhambisa amandla kwizixhobo zesekethe ezibalulekileyo zesekethe. Ngokuqonda umgaqo wayo wokusebenza, iimpawu, iimeko zesicelo kunye nokukhetha kunye neendlela zokufakelwa, unokusebenzisa ngcono kwaye ugcine i-STM2 etyhidiweyo yesekethe yokuqinisekisa ukusebenza ngokukhuselekileyo kweenkqubo zombane.

Umzekelo:STM1-250

Thumela uMbuzo

Ingcaciso yeMveliso

Inkcazo

Uhlobo	Isakhelo sangoku (LNM)	Ikalwe okwangoku (a)	I-Voltage eSebenzayo (v)	I-Volting I-Intertage	Ukulinganisa umda kwisekethe i-Atibity Ka 400v	I-Rurated Esoperating Paket yesekethe Iqhina le-2400V	I-Dimensions			Ukunyuka ubukhulu

							L	I-3P / 4P	H	A	B	I-4-φD
Stm1-63 l	63	(6), 10,16,20,20,20,32, 40,50,63	I-AC 400V	500V	25	18	135	78	73.5	25	117	Φ3.5
Stm1-63 m					50	35	135	78/103	81.5
Stm1-100l	100	(10), 16,20,22,32,30, I-50,63,80,100	I-AC 400V	500V	35	35	150	92	68	30	129	Φ4.5
Stm1-100m					50	50	150	I-92/12	86
Stm1-100 h					85	85
Stm1-160 l.	160	I-100,125,140,160	I-AC 400V	I-690v	35	35	165	107	86	35	126	Φ4.5
Stm1-160m					50	50	165	I-107/142	103
Stm1-10h					85	85
Stm1-225l	225	I-100,1255,140,1660,180, 200,225	I-AC 400V	I-690v	35	22	165	107	86	35	126	Φ4.5
Stm1-225m					50	35	165	I-107/142	103
Stm1-225h					85	50
Stm1-400l	400	225,250,315,350, 400	I-AC 400V	I-690v	42	35	257	I-150/198	105	44	194	Φ7
Stm1-400m					65	50	257	I-150/198	105	44	194	Φ7
Stm1-400h					100	65
Stm1-630l	630	I-400,500,630	I-AC 400V	I-690v	42	35	270	Ngo-182/4440	110	58	200	Φ7
Stm1-630m					65	50	270	182	110	58	200	Φ7
Stm1-630h					100	65
Stm1-800m	800	I-630,700,800	I-AC 400V	I-690v	75	50	275	210	103	70	243	Φ7
Stm1-800h					100	65

Imisebenzi ephambili ye-STM1 yesekethe ePhezulu

Ukukhuselwa okugqithisileyo: Xa okwangoku kwisekethe ingaphezulu kwexabiso lesekethelwe iSTM

Ukukhuselwa kwesekethe emfutshane: Xa kusenzeka isekethe elifutshane, ababumba ababuhlungu be-STM kuya kukhawuleza basike isiphaluka ukuthintela isekethe emfutshane ngoku ukubangela ukonakala kwesekethe kunye nezixhobo.

Ukhuseleko lwe-Intervoltical (ababuhlungu beStM2 ababuhlungu bawunomsebenzi): Xa amandla ombane ancitshiswa kwinqanaba elithile, ababuhlungu besekethe abaya kunciphisa isiphaluka ukuthintela i-voltage ephantsi.

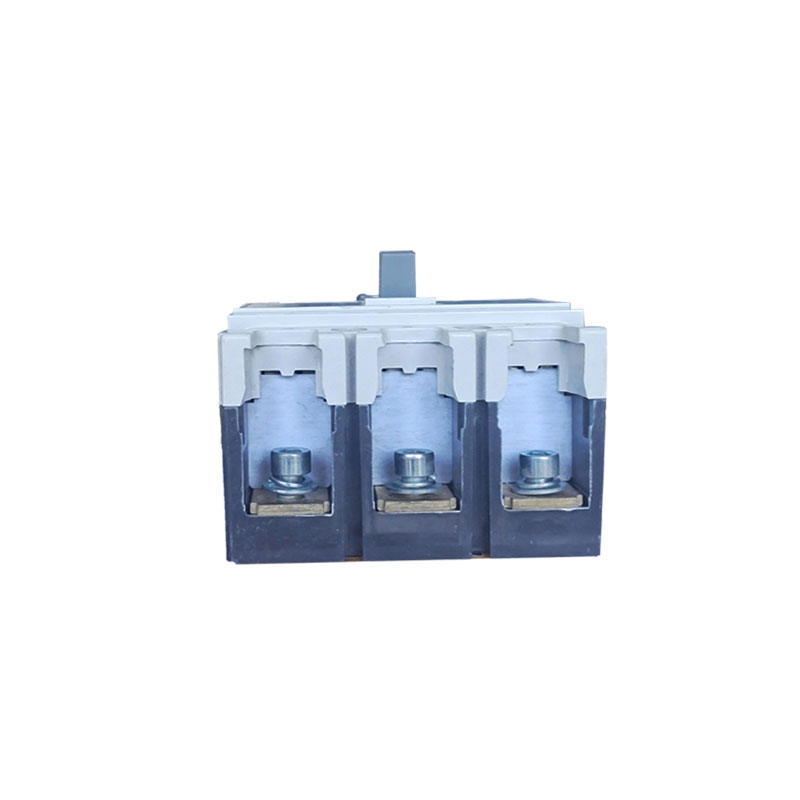

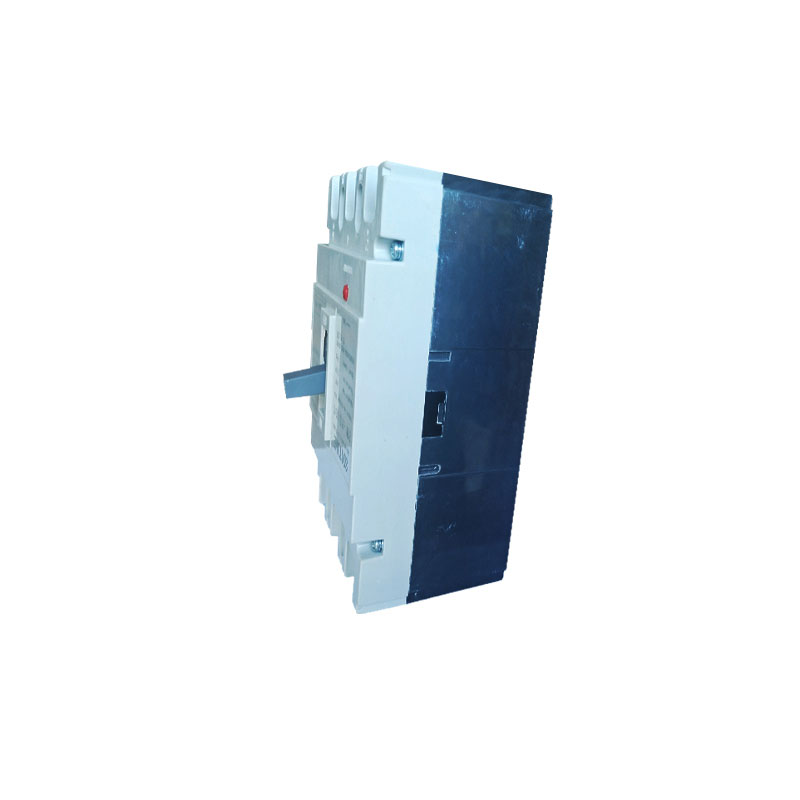

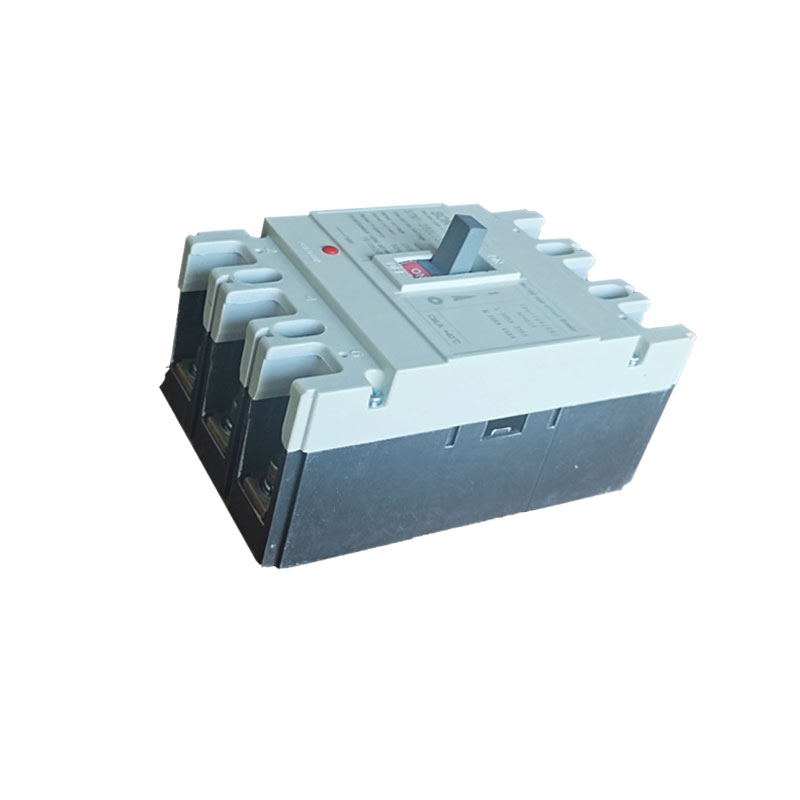

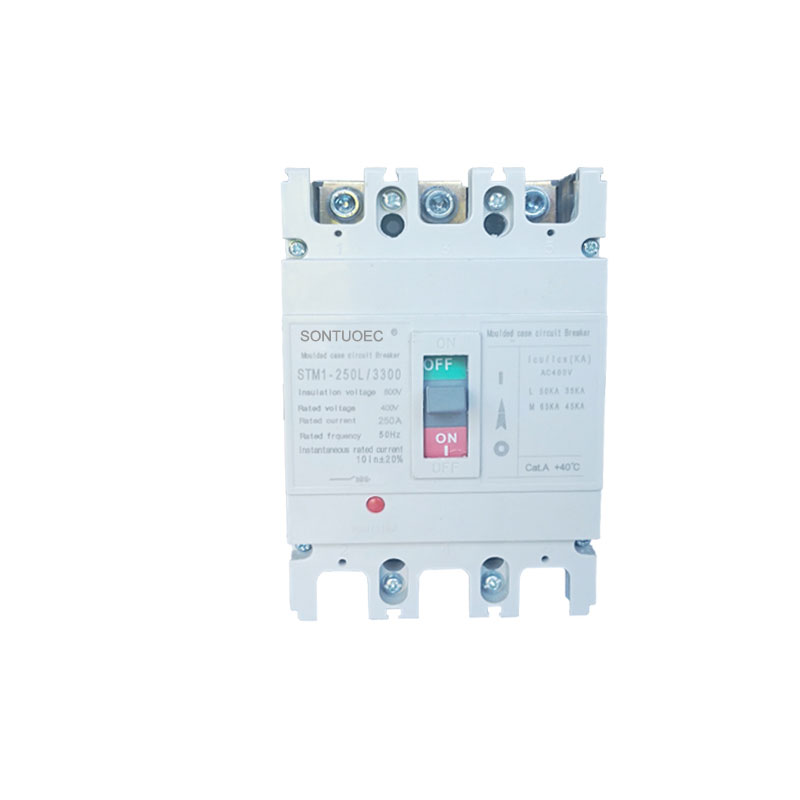

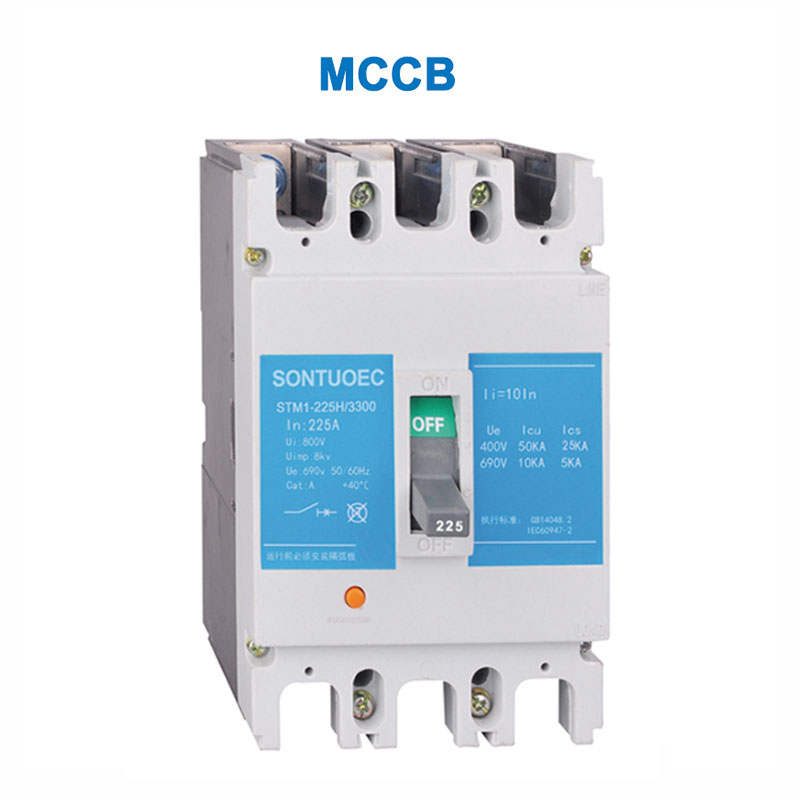

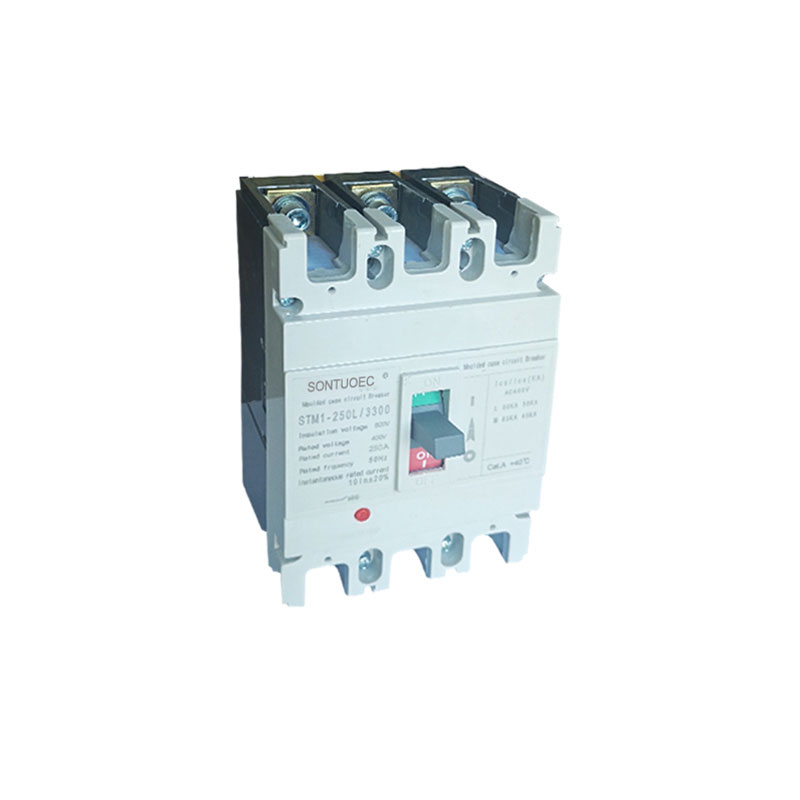

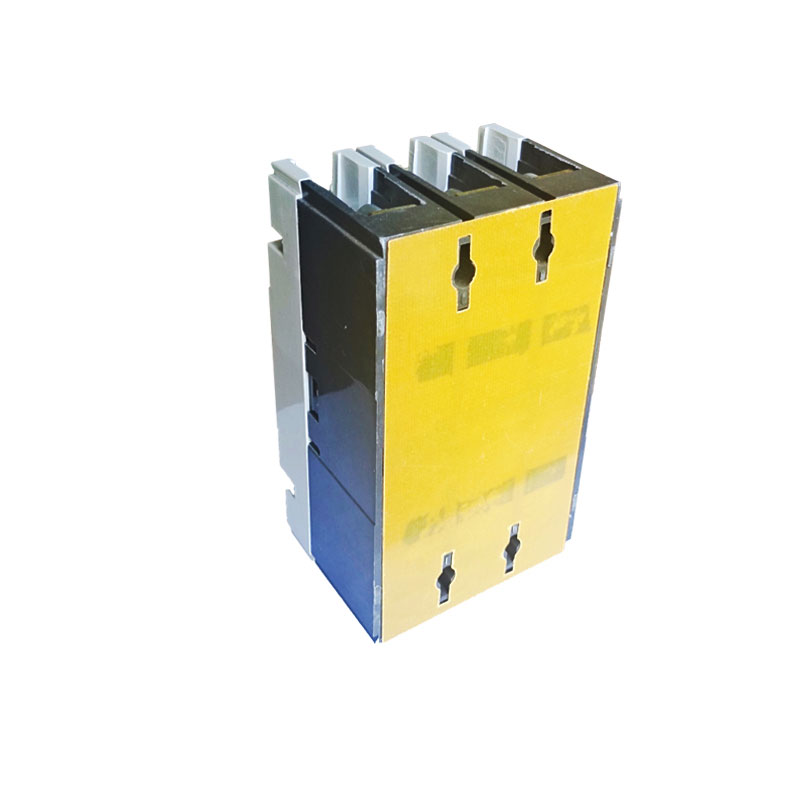

STM1 Molded Case Circuit Breakers

UMGAQO-NKQUBO WOKUGCINWA KWE-STM1 PARDS EKHUNDLA

Abaphulaphuli besekethe be-STM Xa i-voltage ingenamandla, i-voltage ingenangqondo, i-vorting ibangela indlela yokuhamba kwamacala e-STM1 ebunjiweyo, ebangela ukuba ihlawule ngokukhawuleza isiphaluka.

I-1.Thermal Magner Tripper: isebenzisa ubushushu obuvelisiweyo xa kusenziwa i-uqhubekisa ukuba kuphembelele uhambo. Xa okwangoku iphezulu kakhulu, umqhubi wesifundo uyathandana, ebangela i-bimatal ngaphakathi kwe-themagnetic yokubetha igobe, ngaloo ndlela sikhangele indlela yokuhamba.

2.Ulolebhakisi: Isebenzisa izinto ze-elektroniki ukubona utshintsho kwi-voltage kwaye ulawule isenzo sendlela yokuhamba. Xa ukungaqhelekanga kufumanisa, ukugqabhuka kwe-elektroniki kuthumela uphawu kwindlela yokuhambahamba ukuze unqumle isekethe.

Iimpawu ze-STM2 zeSekethelela zeSekethe

Amandla aphezulu e-STM2 atyhidiweyo anesekethe ephakethi ekhuselweyo, enokuthi anqumle isekethe xa kusenzeka iSekethe emfutshane kwaye kwenzeke ukhuseleko lwesekethe kunye nezixhobo.

Imisebenzi yokhuselo oluninzi

Kulula ukufaka kwaye ugcine: I-STM2 I-FREED PARDS ESETYENZISWEYO ZAMABANDLA OBONAKALAYO KAKUMKANI WAMABANDLA WOKUFAKWA KWESIQINISEKISO, Kulula ukuzifaka nokugcina iinkqubo zokuhambisa amandla.

Ukuthembeka okuphezulu: I-STM1 yesekethe ivavanyiwe ngokungqongqo kwaye iqinisekisiwe ukuba ithembeke kakhulu kunye nokuzinza okuphezulu kokuqinisekisa ukusebenza ngokukhuselekileyo kweenkqubo zombane.

Imeko yesicelo ye-STM2 etyhidiweyo

I-STM1 I-FREAFROFERATERS SETYENZISELWE IZIBHENO ZEMALI ZIYA KUSETYENZISWA KOKUSETYENZISWA KOKUSETYENZISWA KOKWENZIWA KOMSEBENZI, KWIINGXAKI ZOBUCHULE NGOKUGQIBELA. Ziqhele ukufakwa kwiibhokisi zokuhambisa, ukuhambisa iikhavathi ezihambisayo okanye ukulawula iikhavathi zokukhusela isekethe kunye nezixhobo ezivela kuMonakalo obangelwe yimijelo kunye nefulongo.
