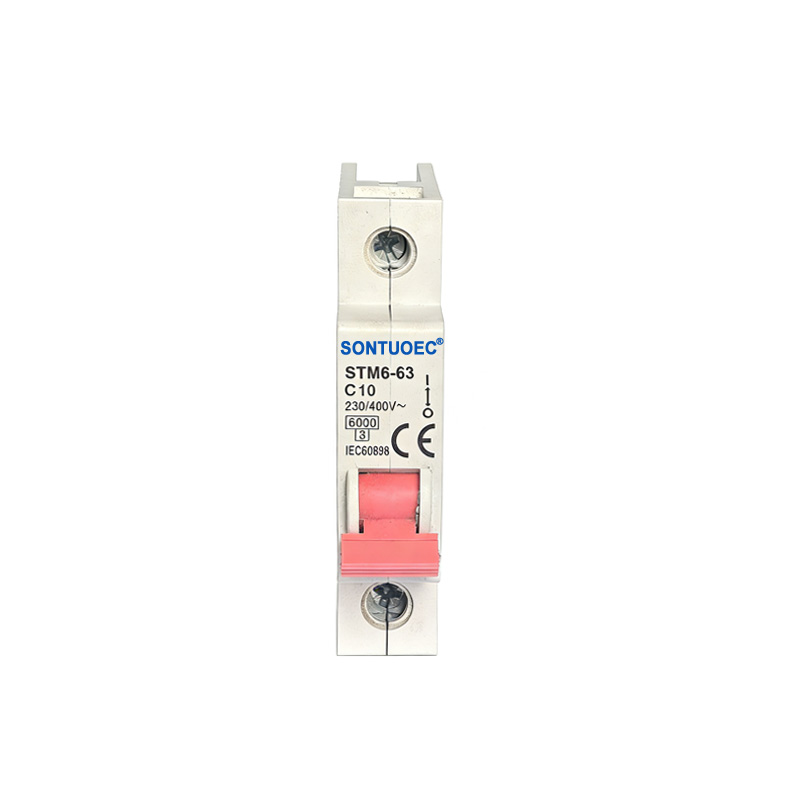

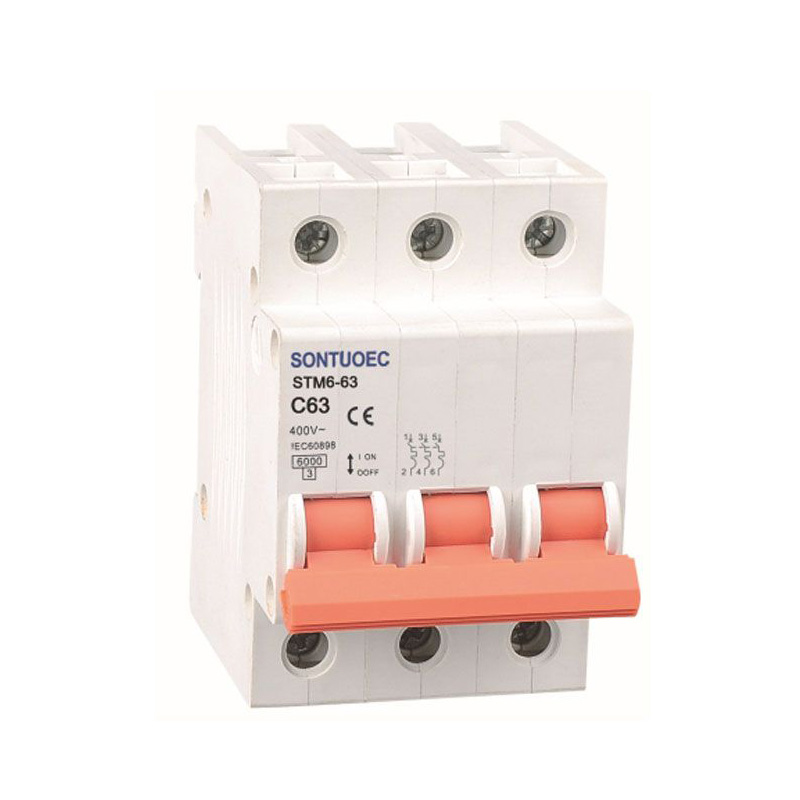

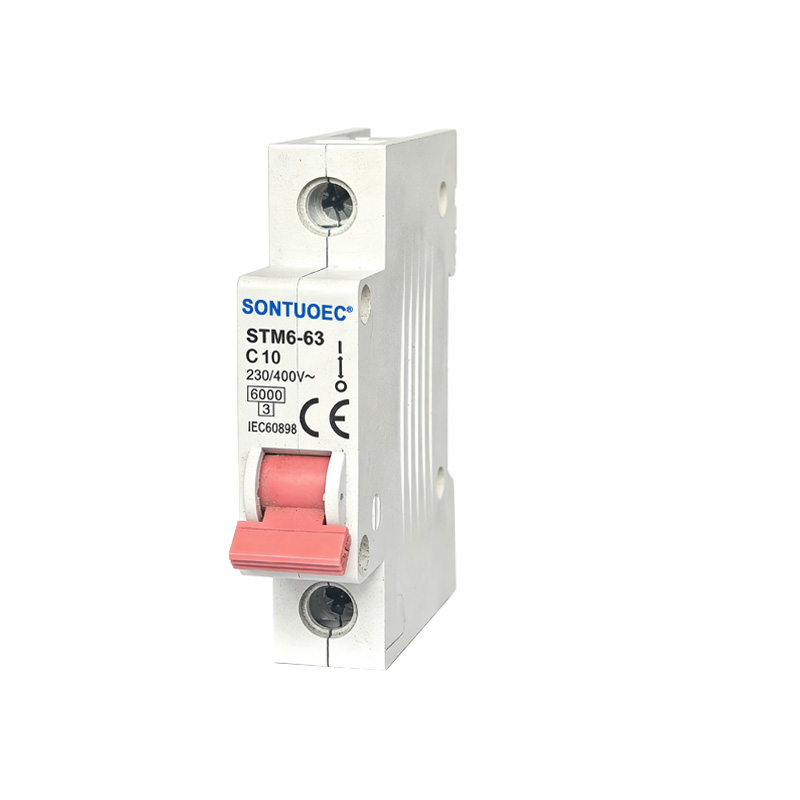

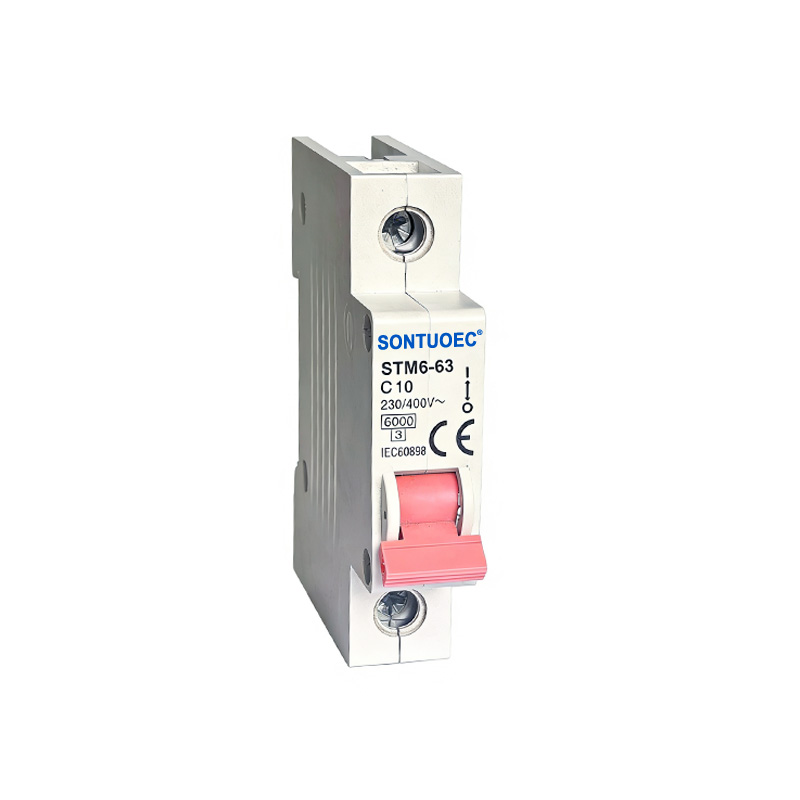

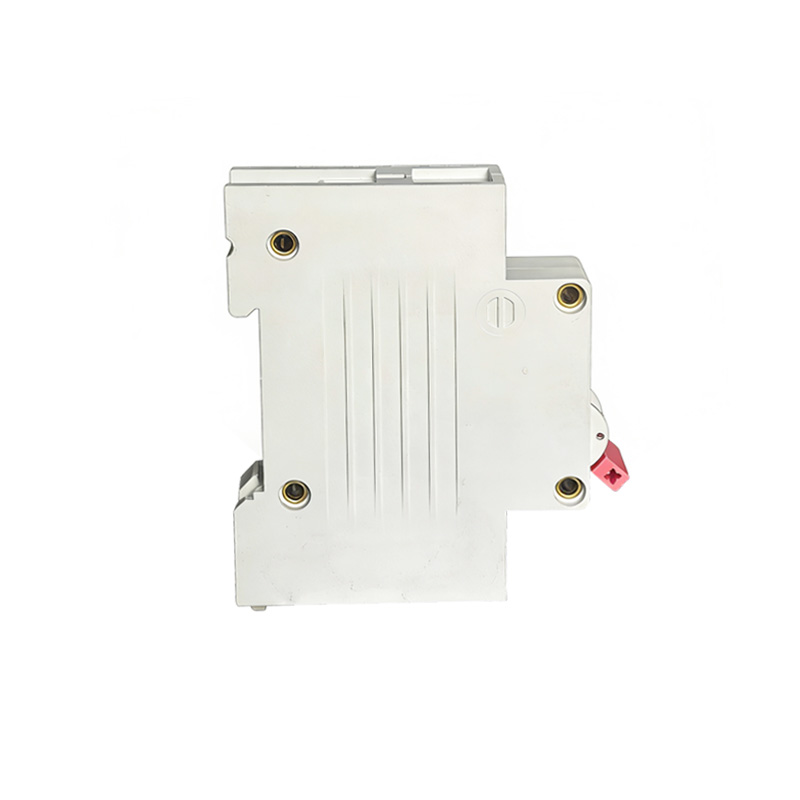

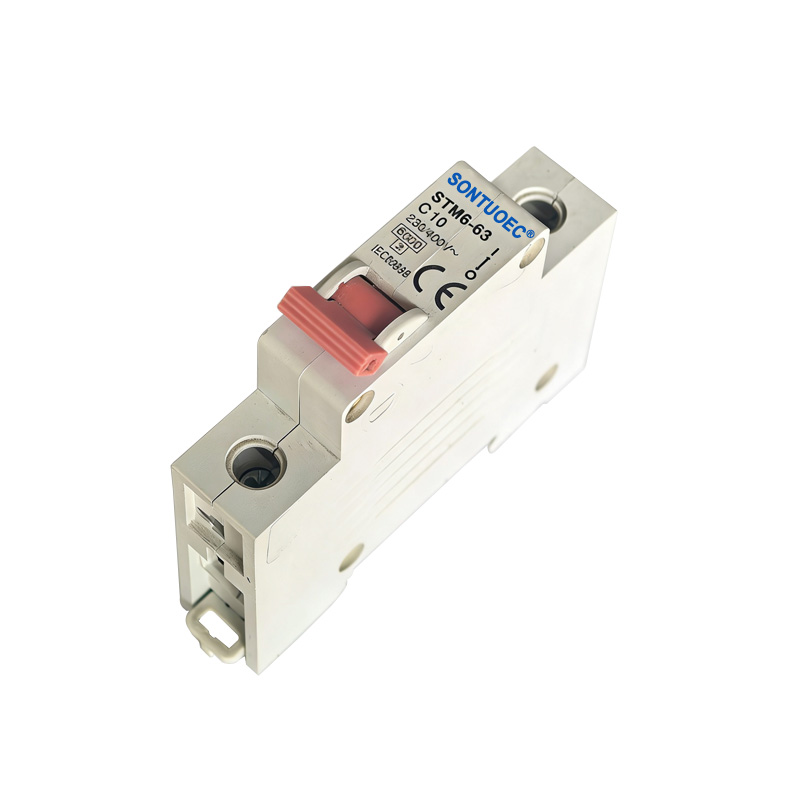

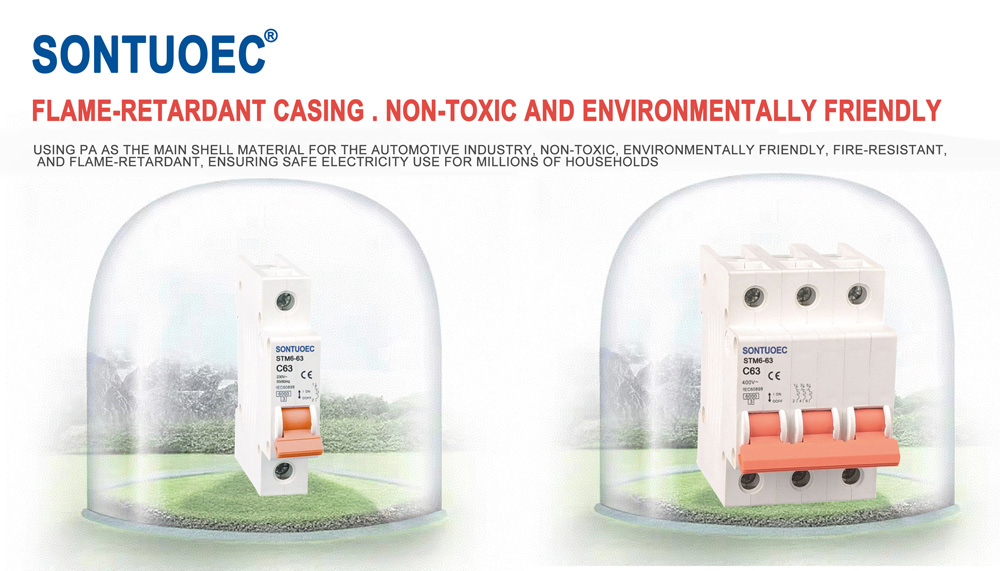

I-Sontuoec Stm6-63 6ka Iqhekeza elincinane leSekethe 230V MCB

I-SONTUOEC ngomnye wababoneleli/abavelisi baseTshayina abaziingcali ekuveliseni izixhobo zombane ezincinci ezahlukeneyo STM6-63 uthotho oluphezulu lokuqhekeza isaphuli sesekethe esincinci sisetyenziswa kwi-AC 50/60Hz, amandla ombane alinganiselwe angama-230V. 3, 4 ipali 400V, ireyithwe yangoku ukuya kwi-63A yokhuseleko olugqithisileyo kunye nesekhethi emfutshane kunye nokutshintsha okungaqhelekanga phantsi kwemeko yesiqhelo.Isetyenziswa kakhulu kushishino, kurhwebo kunye nasekhaya.Le mveliso ihambelana nomgangatho we-IEC60898.

Umzekelo:STM6-63

Thumela uMbuzo

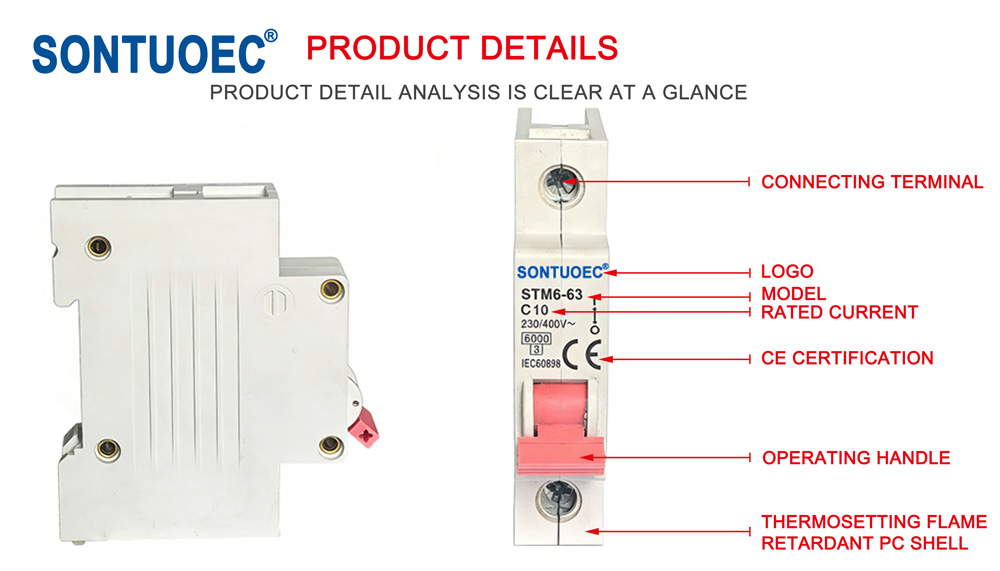

Ingcaciso yeMveliso

Iinkcukacha:

Indawo yemvelaphi:	Liushi,ueqing,Wenzhou,Zhejiang,China
Igama lebrand:	SONTUOEC, STUOEC,SONTUNE,SONTUOC,WZSTEC
Igama lemveliso:	Iqhekeza leSekethe encinci / i-MCB
Uhlobo:	Mini
Inombolo yoMfanekiso:	I-STM6-63
Umthamo weSekethe eNfutshane enikwe umlinganiselo lcu (V)	B,C,D
Ulinganiso lombane:	230V/400VAC
Ikalwe ngoku:	1A, 2A, 3A, 4A, 6A, 10A, 16A, 20A, 25A, 32A, 40A, 50A, 60,63A
Ukwaphulwa kwesakhono:	6KA
Ireyithwe ngokuphindaphindiweyo:	50/60Hz
Inani leePali:	1P, 2P, 3P,, 4P
Ukuphakama:	≤2000m
Ubushushu be-Ambience:	-5 ~ 40ºC
Ububanzi:	18mm/Ipali
Umgangatho:	IEC60898, GB10963
Uhlobo loKhuselo:	ukhuseleko lomthwalo ogqithisileyo, ukhuseleko lwesekethe emfutshane
Uhlobo lokuHamba:	uhlobo thermal
Izavenge:	TH 35mm din kaloliwe
Umthamo weeNcingo:	≤25mm²
Ubuninzi boKusebenza rhoqo:	1A-32A, 240 40A-63A, 120
