Sontuoec St1n 3p 4p AC Umnxibelelanisi

I-SONTUOEC ngomnye wababoneleli/abavelisi baseTshayina abaziingcali kwimveliso yezixhobo zombane ezincinci ze-ST1N Series AC Contactor ilungele ukusetyenziswa kwiisekethe umbane olinganisiweyo ukuya kuthi ga kwi-660V AC 50Hz okanye i-60Hz, ulinganiso lwangoku ukuya kuthi ga kwi-95A, ukwenza kunye nokuqhekeka, ukuqala rhoqo kunye nokulawula i-AC motor. Idityaniswe nebhloko yoqhagamshelwano encedisayo, ukulibaziseka kwexesha kunye nesixhobo sokudibanisa umatshini njl njl, iba ngumnxibelelanisi wokulibaziseka, i-mechanical interlocking contactor, star-delta starter. Nge-relay ye-thermal, idityaniswe kwi-electromagnetic starter. Umnxibelelanisi uveliswa ngokwe-IEC 60947-1.

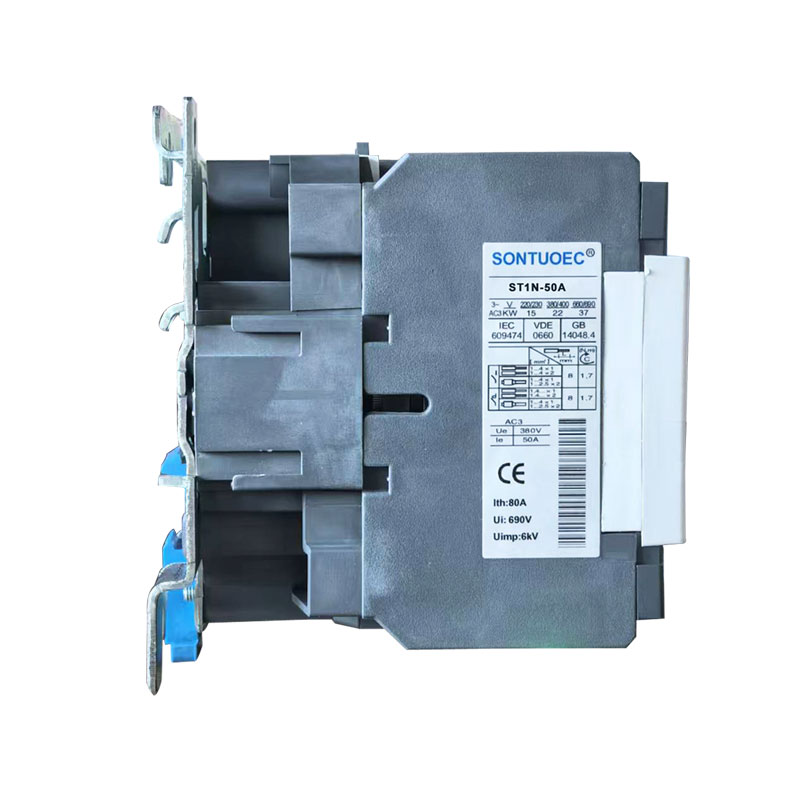

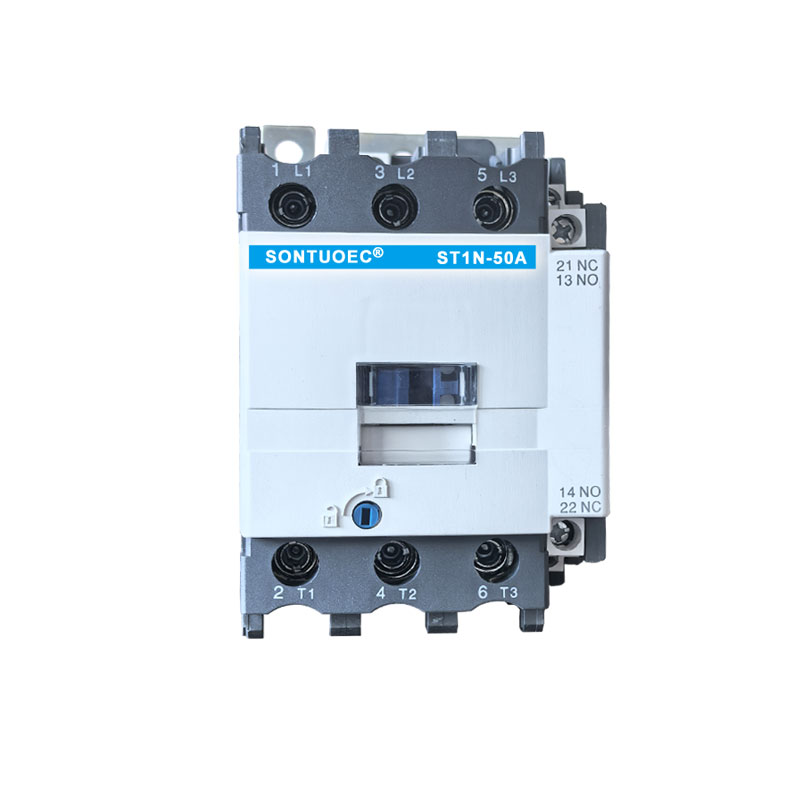

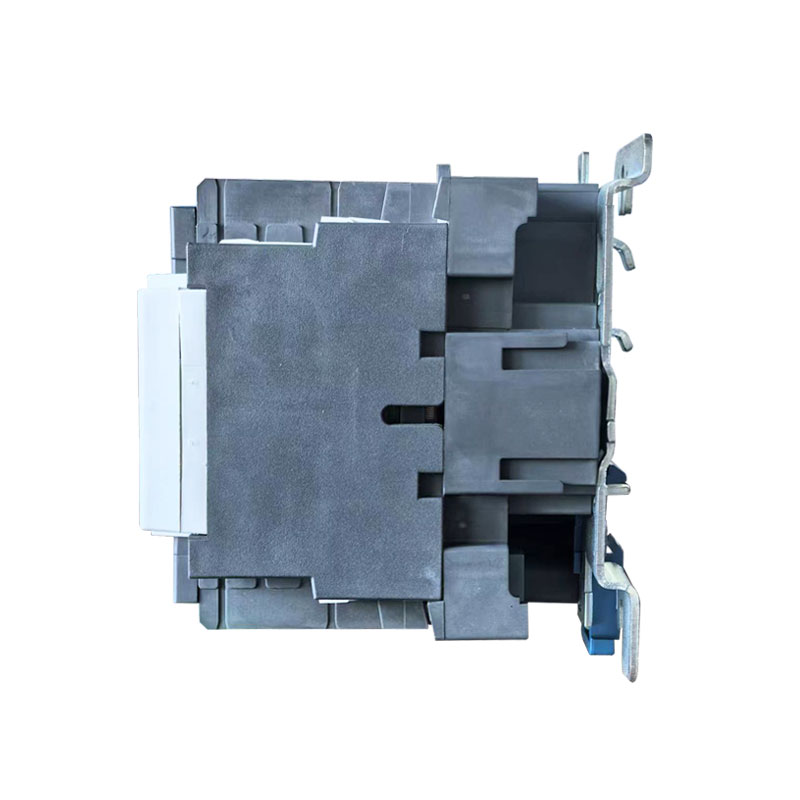

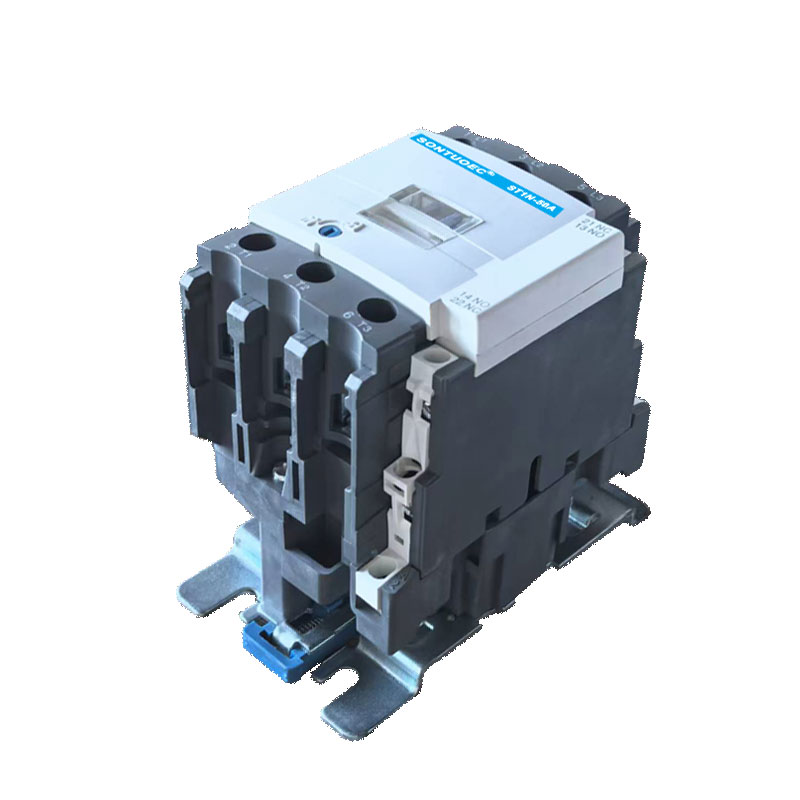

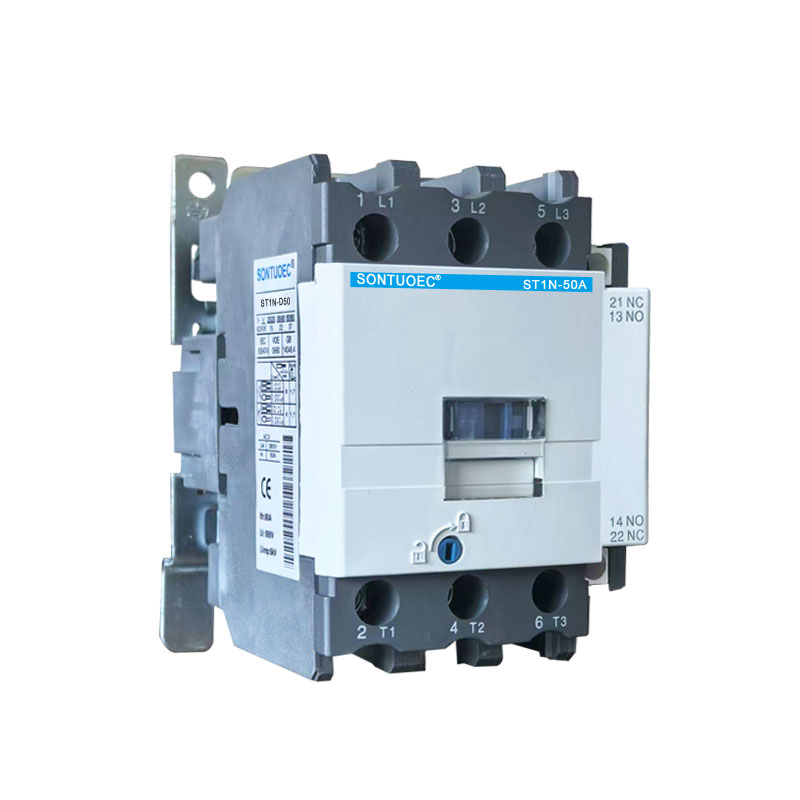

Umzekelo:ST1N

Thumela uMbuzo

Ingcaciso yeMveliso

Iklasi yangoku	9A , 12A , 18A , 25A , 32A , 40A , 50A , 65A , 80A , 95A (AC-3,380V)
Ilinganiswe nge-Insulation Voltage	I-AC 660V
Ilinganiswe iVoltage yokuSebenza	AC380v,660V,50/60HZ
Ireyithingiwe yokulawula i-Voltage ye-Power-line	24V, 32V, 48V, 110V, 127V, 220V, 240V, 380V, 415V, 440V, 480V, 500V, 600V, 660V
Inani leePali	3P,4P
Uphawu lokuSebenza	Ukutsala amandla ombane:85%~110%Us; Ukukhutshwa kwamandla ombane: 20% ~ 75% Us

Ubume kunye nomgaqo wokusebenza

Ulwakhiwo: I-ST1N AC I-Contactor ikakhulu iqulethe inkqubo ye-electromagnetic (kubandakanya intsimbi yentsimbi, i-coil kunye ne-short-circuit ring, njl.), inkqubo yoqhagamshelwano (kubandakanywa uqhagamshelwano oluphambili kunye noqhagamshelwano oluncedisayo) kunye nesixhobo sokucima i-arc.

Umgaqo osebenzayo: Xa i-coil ye-ST1N AC Contactor inamandla, intsimbi yentsimbi ivelisa intsimi yamagnetic, ekhanga i-armature kwaye iqhube abafowunelwa ukuba basebenze, ukwenzela ukuba abafowunelwa abaphambili kunye nabancedisi abancedisayo bavalwe okanye banqanyulwe, ngaloo ndlela ulawula i-on-off of the circuit. Isixhobo sokucima i-arc sisetyenziselwa ukucima i-arc xa abafowunelwa benqanyuliwe ukukhusela abafowunelwa kumonakalo.

Iintlobo kunye neempawu

1.Iintlobo:

AbaQhagamshelwa be-ST1N AC banokuhlelwa kwiindidi ezahlukeneyo ngokusetyenziswa kwabo kunye nokusebenza kwabo, njengabafowunelwa bezoshishino, izakhiwo kunye nabafowunelwa bendlu. Iimodeli eziqhelekileyo ziquka uchungechunge lwe-CJ (umzekelo, i-CJX2 series, i-CJ20 series, i-CJT1 series) kunye neemveliso ze-ABB, i-Siemens, i-Schneider kunye nezinye iimpawu.

2.Iimpawu:

Umsebenzi othembekileyo: AbaQhagamshelwa be-ST1N AC banokuthembeka okuphezulu komsebenzi kunye nokuzinza, kwaye banokumelana nemisinga emikhulu kunye ne-voltages.

Ukusebenza okuzinzile: inkqubo yoqhagamshelwano yayo yenziwe ngezinto ezisemgangathweni ophezulu kunye ne-conductivity elungileyo yombane kunye nokumelana nokushisa kwe-abrasion.

Ukugcinwa ngokufanelekileyo: AbaQhagamshelwa be-ST1N AC banesakhiwo esincinci kwaye kulula ukuyifaka nokugcina.

Iimeko zeSicelo

AbaQhagamshelwa be-ST1N AC banoluhlu olubanzi lwezicelo kwiinkqubo zamandla, i-automation industrial, isakhiwo kunye nombane wendlu. Ngokomzekelo, kwinkqubo yamandla, ingasetyenziselwa ukulawula ukuqala-ukuyeka kunye nokuguqulwa kolwalathiso lwemoto; kwi-automation ye-industrial, ingasetyenziselwa ukulawula ukuqala kwezixhobo zombane ezahlukeneyo kumgca wokuvelisa; kwisakhiwo kunye nombane wendlu, ingasetyenziselwa ukulawula ukucima / ukucima izixhobo, ezifana nokukhanyisa kunye ne-air-conditioning.
