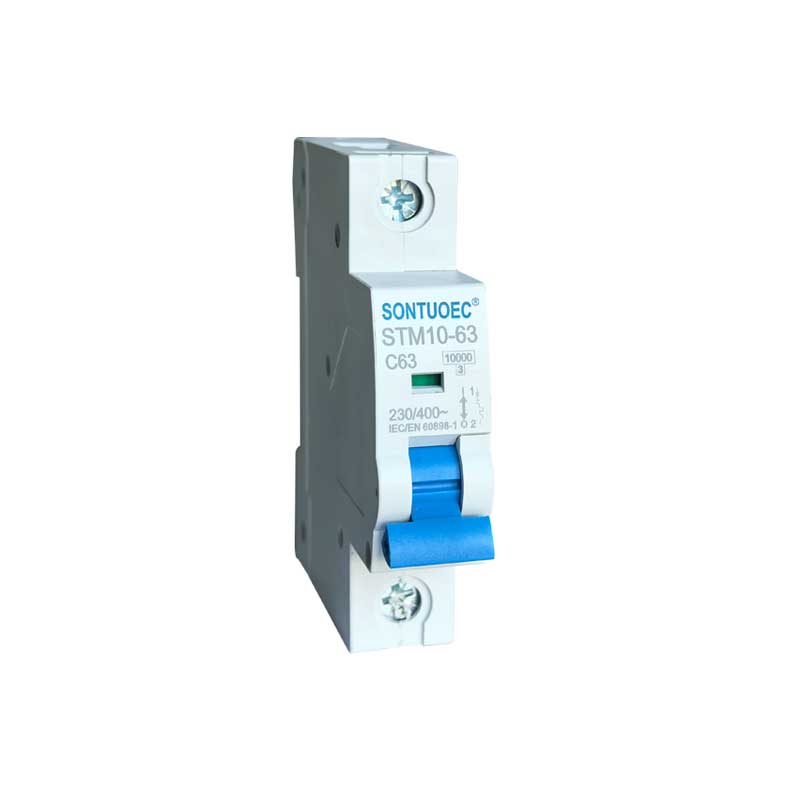

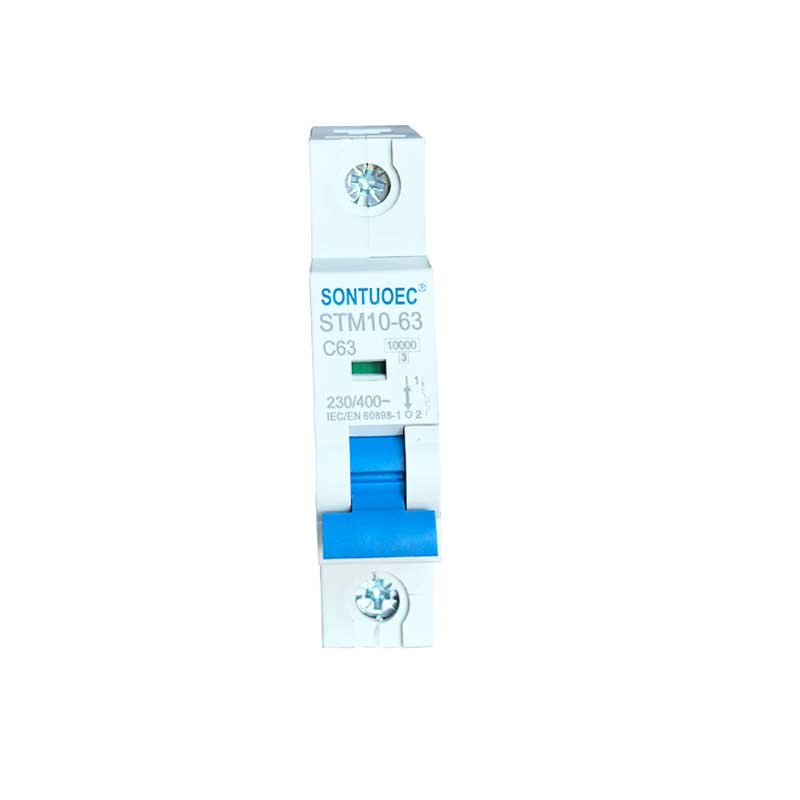

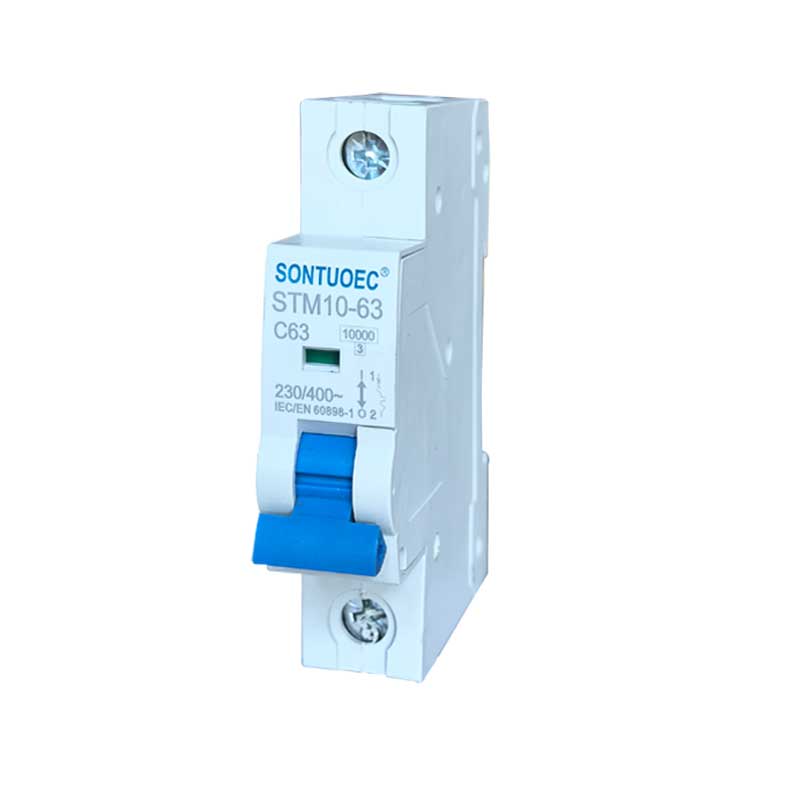

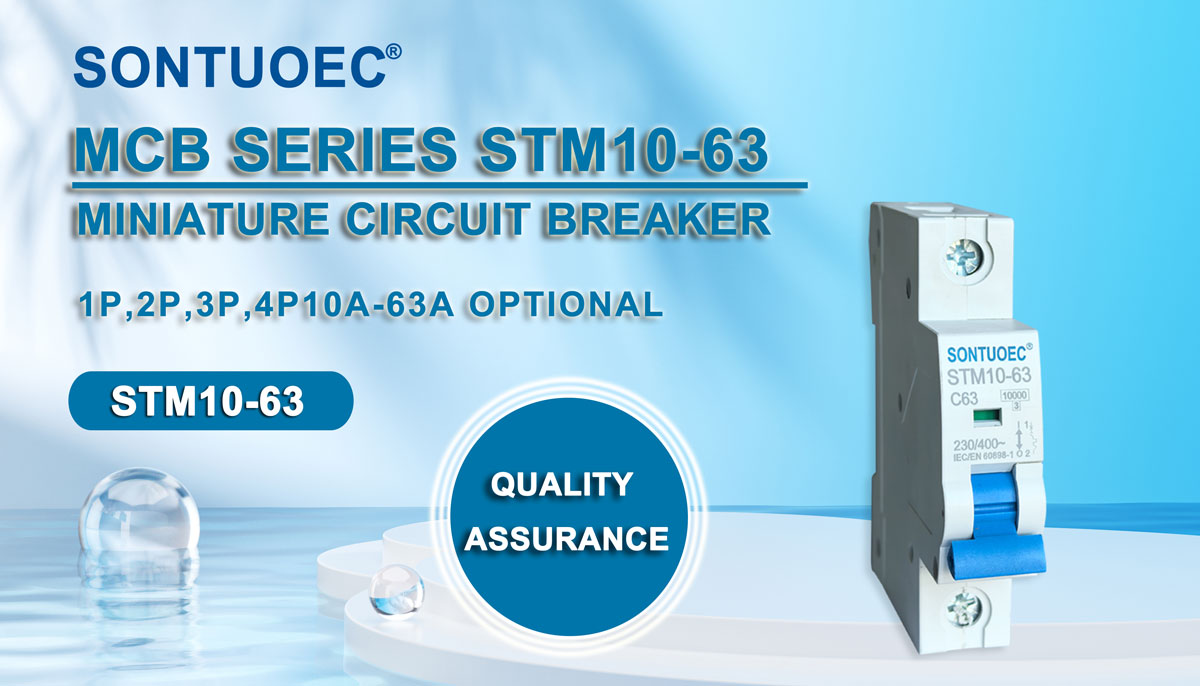

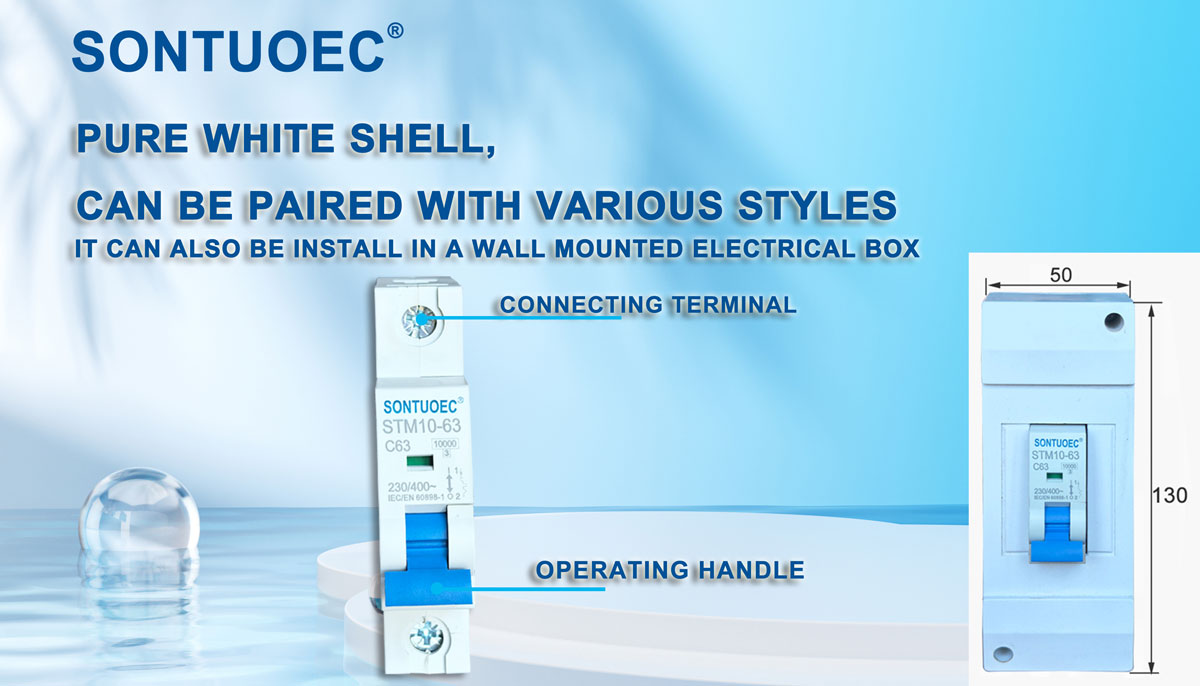

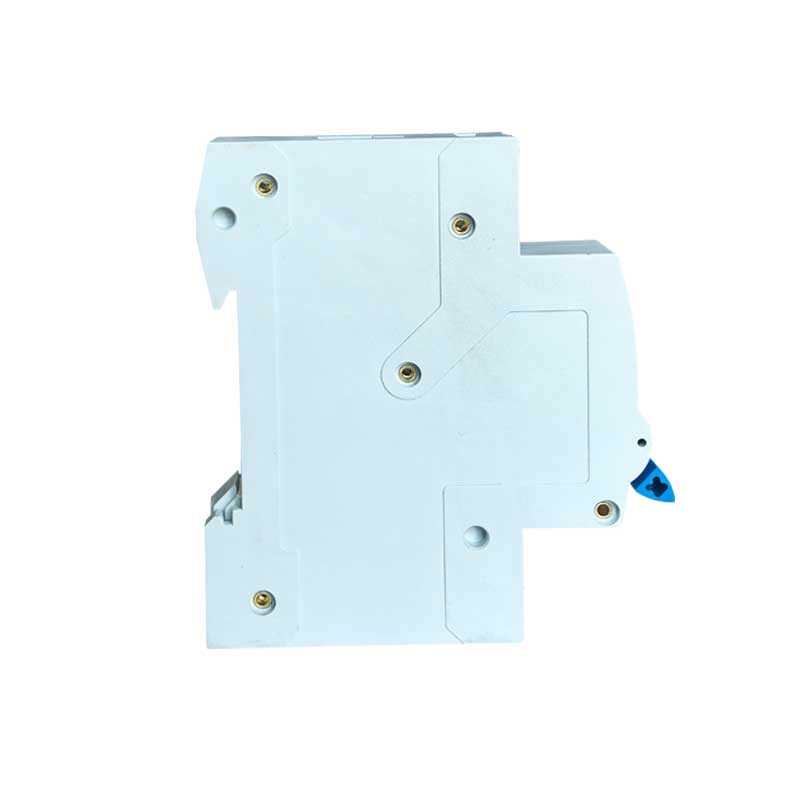

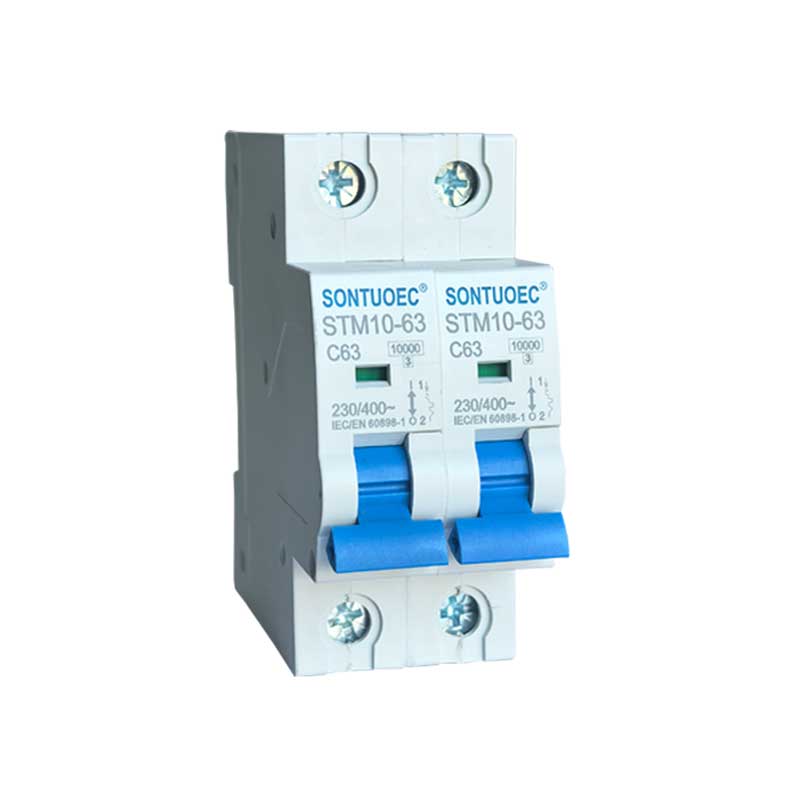

I-Sontuoec Factory Direct iThengiso iMCB Stm10-63 Series 6ka Miniature Circuit Breaker

I-SONTUOEC ngomnye wababoneleli/abavelisi baseTshayina abakhethekileyo kwimveliso yezixhobo zombane ezincinci ezahlukeneyo STM10-63 Series high breaking miniature breaker ineempawu zesakhiwo esiqhubela phambili, ukusebenza okuthembekileyo, ukophula umthamo ophezulu, ukubonakala okuhle kwaye iqokobhe layo kunye namalungu enziwe ngemathiriyeli enokumelana nempembelelo, into eyomeleleyo yokungadanga kwedangatye. Ifanelekile kwinkqubo yamandla ye-50 okanye i-60 frequency, Ue 400V nangaphantsi, i-Ui 63A nangaphantsi. Isetyenziswa kakhulu kwisakhiwo seofisi, indawo yokuhlala, ukukhanyisa, ukuhanjiswa kwamandla kunye nokugqithiswa kunye nokukhuselwa kwesiphaluka esifutshane sezixhobo. Ngokwesiqhelo, ikwanokusetyenziswa njengokungagqithiselwa rhoqo kwenkqubo yamandla. Ihambelana nemigangatho ye-IEC60898.1 kunye ne-GB10963.1

Umzekelo:STM10-63

Thumela uMbuzo

Ingcaciso yeMveliso

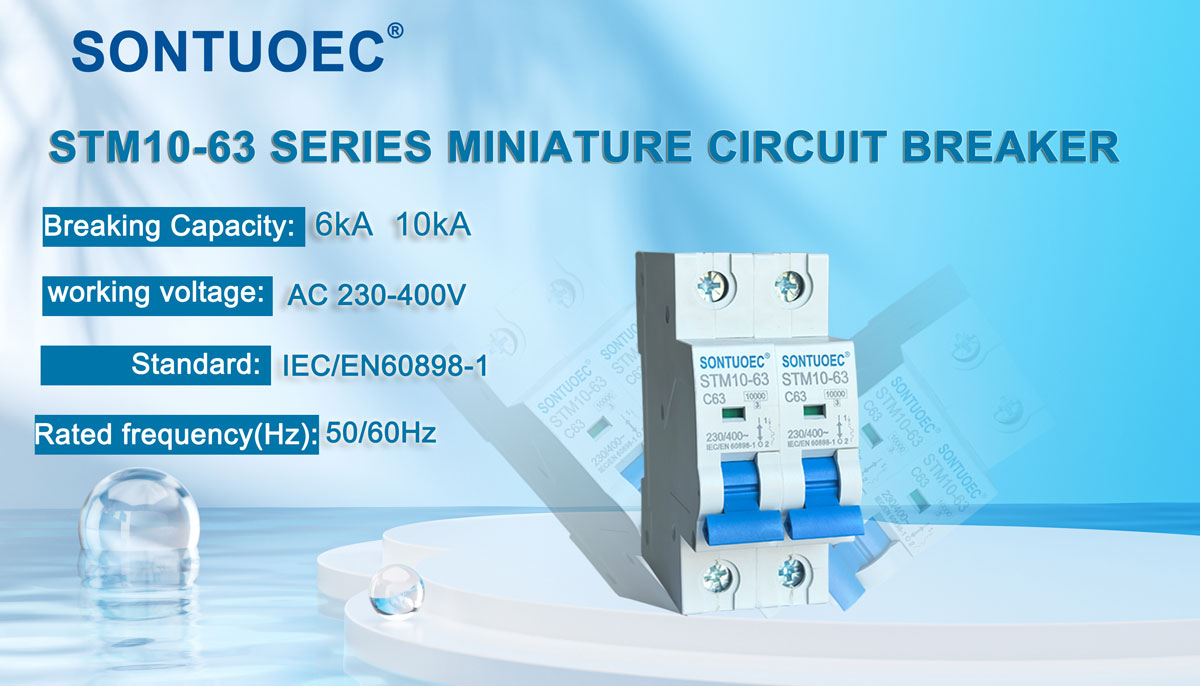

Iinkcukacha:

	Umgangatho		IEC/EN 60898-1
Umbane	Ikalwe ngaphakathi ngoku	A	1,2,4,6,10,16,20,25,32,40,50,63A
Iimbonakalo	Iipali	P	1,2,3,4
	Ixabiso lombane i-Ue	V	AC 230, 400
	I-Insulation voltage Ui	V	500
	Ilinganiswe rhoqo	Hz	50/60
	Umgangatho wokwaphulwa kwamandla	A	3000, 4500, 6000
	Umlinganiselo wempembelelo yokumelana nombane (1.2/50) Uimp	V	4000
	I-voltage yovavanyo lwe-Dielectric kwi-ind.Freq.nge-1 min	Kv	2
	Isidanga songcoliseko		2
	Iimpawu zokukhutshwa kwe-Thermomagnetic		B,C,D
Oomatshini	Ubomi bombane	t	4000
Iimbonakalo	Ubomi bomatshini	t	10000
	Isidanga soKhuseleko		IP20
	Ubushushu bereferensi yokuseta	ºC	30
	ye-thermal element	ºC	30
	Ubushushu obugciniwe	ºC	-5 ~+40(Isicelo esikhethekileyo nceda ubhekiselele
	(ngomndilili wemihla ngemihla ≤35ºC)	ºC	ukulungiswa kwembuyekezo yobushushu)
	Ubushushu bokugcina	ºC	-25~+70
Ukuhlohla	Uhlobo loqhagamshelwano lwetheminali		Ikhebula/uhlobo lwebhasi yebhasi
	Ubungakanani betheminali phezulu/ezantsi kwintambo	mm2	25
	Ubungakanani betheminali phezulu/ezantsi kwintambo	AWG	3月18日
	Ubungakanani beTherminal ubukhulu phezulu/ezantsi kwebhasi bar	mm2	25
		AWG	3月18日
	Ukuqinisa itorque	N*m	2
	Ukuqinisa itorque	In-lbs	18
	Ukunyuka		kumzila kaloliwe we-DIN EN 60715(35mm) ngesixhobo sokuqhotyoshwa ngokukhawuleza
	Uqhagamshelwano		Ukusuka phezulu nasezantsi

Imisebenzi ephambili ye-STM10-63 Miniature Circuit Breaker

I-1.Ukukhuselwa kwe-Overload: Xa i-current in circuit idlula ixabiso elilinganisiweyo le-MCB, i-STM10-63 Miniature Circuit Breakerwill ngokuzenzekelayo inqumle isiphaluka ngaphakathi kwexesha elimiselweyo ukukhusela isiphaluka kunye nezixhobo zokushisa.

2. Ukukhuselwa kwesekethe emfutshane: Xa i-short-circuit isenzeka kwisekethe, i-STM10-63 Miniature Circuit Breakerwill iya kunqumla isekethe ngokukhawuleza ukukhusela i-short-circuit current ekonakaliseni isekethe kunye nezixhobo.

I-3.Ukukhuselwa kokuvuza (ezinye ii-MCBs zinalo msebenzi): kwii-MCBs ezinokukhusela ukuvuza, xa kukho ukuvuza kwisekethe, i-STM10-63 Miniature Circuit Breakerwill inqumla ngokukhawuleza isiphaluka ukukhusela ukhuseleko lomntu.

Umgaqo wokusebenza kwee-MCBs

Ii-MCBs zihlala zine-thermal magnetic okanye i-electronic trip detector ngaphakathi, esetyenziselwa ukufumanisa utshintsho lwangoku kwisekethe. Xa ikhoyo ngoku ingaqhelekanga, umhlaseli ubangela indlela yokukhubeka ye-MCB, ebangela ukuba i-STB1-63 Miniature Circuit Breakerto inqumle ngokukhawuleza isiphaluka.

1.I-Thermal magnetic strike: Isebenzisa ubushushu obuveliswayo xa umsinga udlula kwi-conductor ukuvusa ukukhubeka. Xa umsinga mkhulu kakhulu, i-conductor iyafudumala, nto leyo ebangela ukuba i-bimetal engaphakathi kwi-thermal magnetic striker igobe, ngaloo ndlela ibangela umatshini wokukhubeka.

2.Umhlaseli we-elektroniki: Isebenzisa izixhobo ze-elektroniki ukubona utshintsho lwangoku kunye nokulawula isenzo somatshini wokukhubeka. Xa kufunyenwe umsinga ongaqhelekanga, umhlaseli we-elektroniki uthumela umqondiso kwindlela yokukhubeka ukuze inqumle isekethe.

Iimeko zeSicelo se-MCB

Ii-MCBs zisetyenziswa ngokubanzi kwiinkqubo zombane kwiindawo zokuhlala, zorhwebo kunye nezoshishino ukukhusela iisekethe kunye nezixhobo kumonakalo obangelwa yimisinga engaqhelekanga. Ngokuqhelekileyo zifakwe kwiibhokisi zokusasaza, iibhodi zokutshintsha okanye iikhabhinethi zokulawula kwaye zisetyenziswe njengenguqu ephambili okanye ukutshintshwa kwesebe lesekethe.

Ukukhethwa kunye noFakelo lweeMCBs

I-1.Ukhetho: Xa ukhetha ii-MCBs, kufuneka uqwalasele izinto ezifana nokulinganiswa kwangoku kwesekethe, inqanaba lombane, iimpawu zokukhusela, kunye nokuba ukhuseleko lokuvuza luyafuneka. Kwakhona kubalulekile ukuqinisekisa ukuba i-STB1-63 Miniature Circuit Breaker ekhethiweyo ihambelana nemigangatho kunye nemimiselo yokhuseleko lombane wendawo.

2.Ufakelo: I-STB1-63 Miniature Circuit Breaker kufuneka ifakwe kwindawo eyomileyo, engenamoya engenazo iigesi ezitshabalalisayo kwaye iqinisekise ukuba ifakwe iingcingo ngokuchanekileyo nangokukhuselekileyo. Ngexesha lofakelo, imigaqo efanelekileyo yokhuseleko lombane kunye neenkqubo zokusebenza kufuneka zigcinwe.
