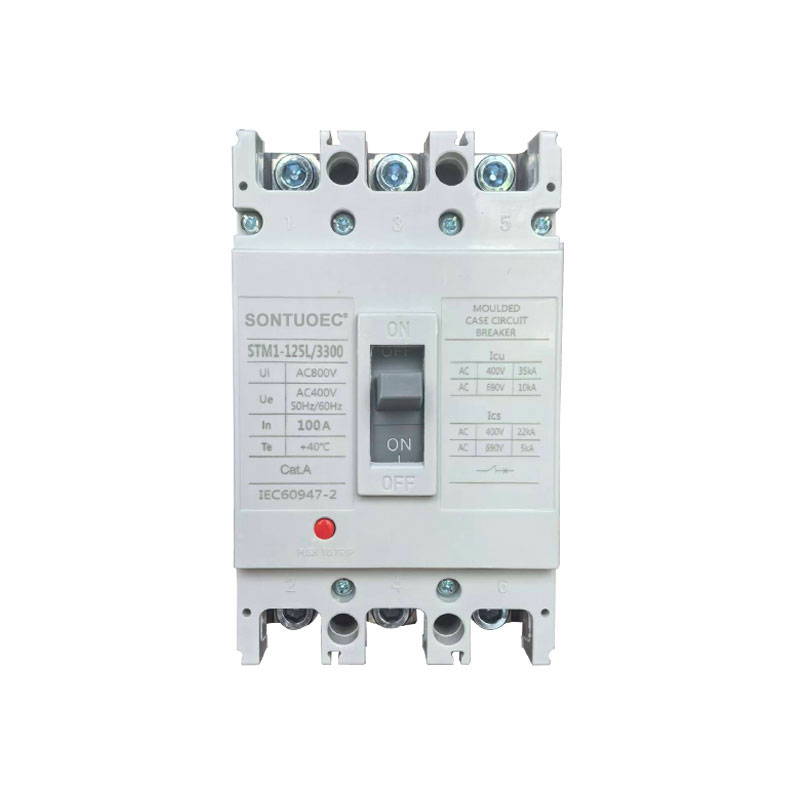

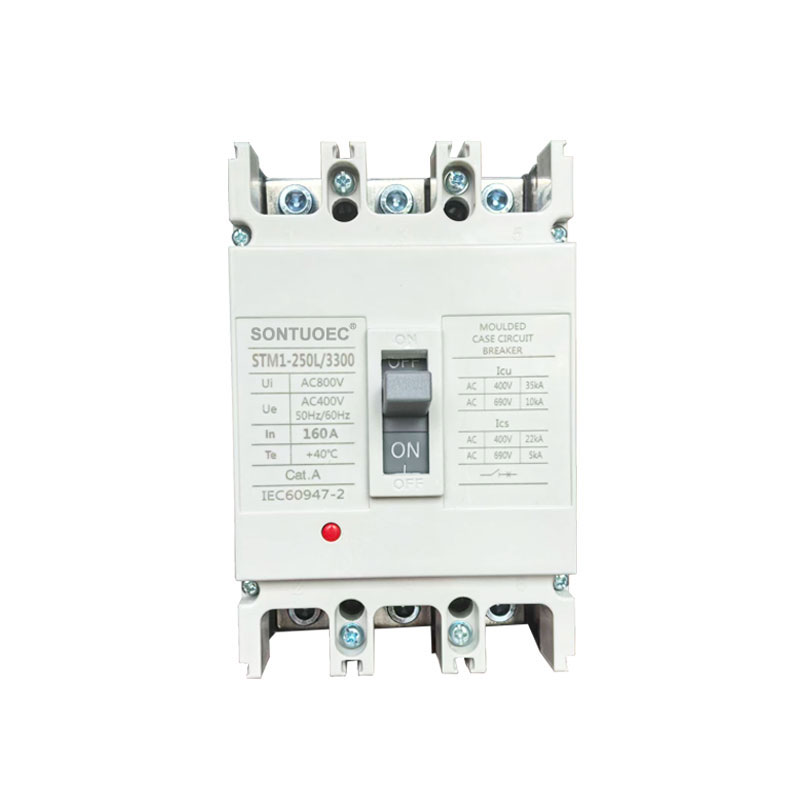

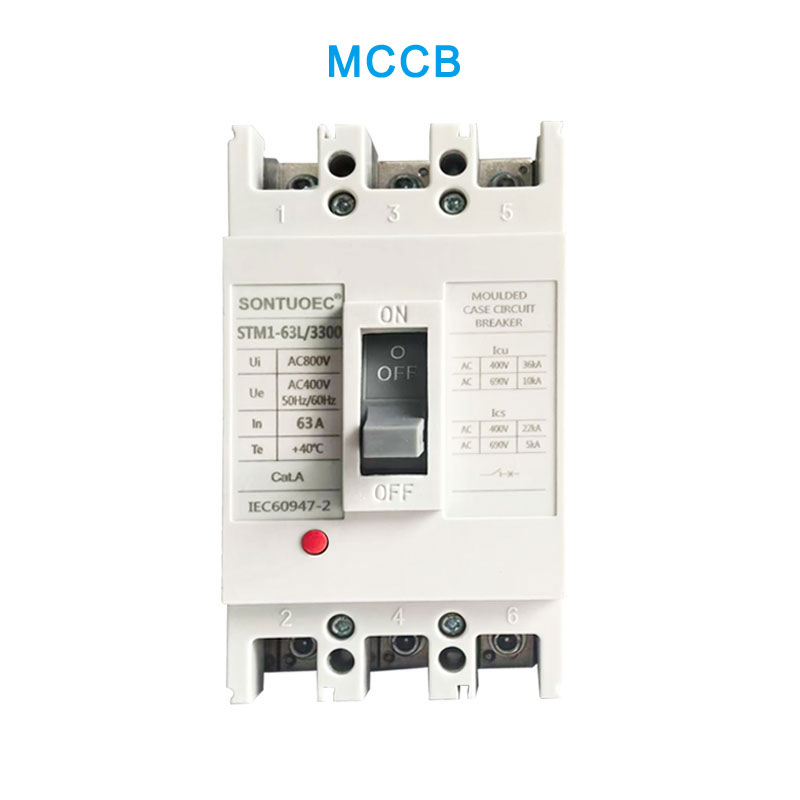

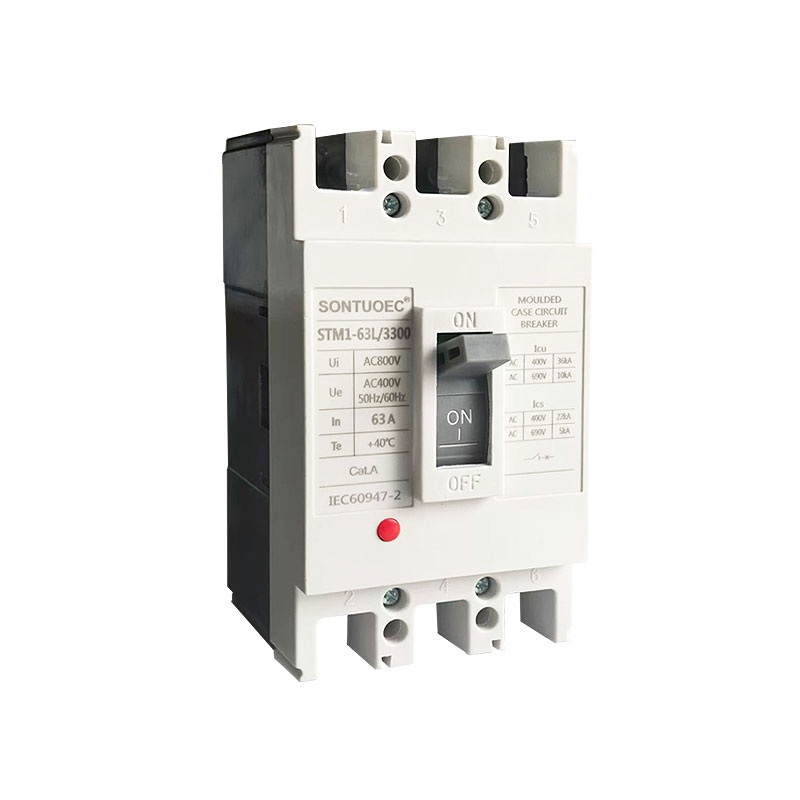

SONTUOEC Electric Molded Case Circuit Breaker

I-SONTUOEC ingomnye wababoneleli / abavelisi baseTshayina abakhethekileyo kwimveliso yezixhobo zombane ezincinci ezahlukeneyo zombane ezibunjiweyo zeCycuit Breaker luhlobo lwezixhobo zombane ezinemisebenzi yokukhusela efana nokugqithiswa, isiphaluka esifutshane kunye naphantsi kombane. Umgaqo wayo wokusebenza kukuba phantsi kweemeko eziqhelekileyo zokusebenza, i-breaker circuit ikwimeko evaliweyo, xa i-circuit overload, isiphaluka esifutshane okanye phantsi kwe-voltage kunye nezinye iimpazamo, i-breaker circuit iya kuqhawula ngokuzenzekelayo isiphaluka, ukwenzela ukukhusela isiphaluka kunye nokhuseleko lwezixhobo.

Umzekelo:STM1

Thumela uMbuzo

Ingcaciso yeMveliso

I-PARAMETER YOBUGCISA:

Umzekelo		I-STM1-125			STM1-250			STM1-400			STM1-630			STM1-800			STM1-1250
Ilinganiswe ngeCortirucus currt		125			250			400			630			800			1250
Ikaliwe Curert hn(A)		16,20,25,32,40.50			100,125,140,160,			250,315,350,400			400,500,630			630,700,800			80,010,001,250
		63,80,100,125			180,200,225.25
Ireyithwe ngeVota yokuSebenza i-Ue(V)DC								500,550,7			501,000
Ikaliwe Isuation Votage UKV)		1000			1000			1500			1500			1500			1500
Uimp(KV)
Vavanya iVotage uMzu omnye(V)		3500			3500			3500			3500			3500			3500
Ukwaphulwa kwesakhono (KA)		L	M	H	L	M	H	L	M	H	L	M	H	L	M	H	L	M	H
ku(1cs=75%ku)	250V	25	35	50	35	50	65	35	50	65	35	50	65	50	65	80	50	65	80
	500V	25	25	50	35	35	65	35	35	65	35	35	65	50	50	80	50	50	80
	750V	25	15	50	35	25	65	35	25	65	35	25	65	50	35	80	50	35	80
	1000V	25	10	50	35	15	65	35	15	65	35	15	65	50	20	80	50	20	80
Mechaarical Yena	Amaxesha	7000			7000			4000			4000			2500			2000
Ubomi boMbane	Amaxesha	2000			2000			1000			1000			800			600
Amaxesha okuPhuma (ms)		20			20			20			20			20			20
Indawo yoFakelo		Nayiphi na indawo
umthamo webholatha		Ewe
Umgangatho		IEC 60947-2,IEC60947-1,GB 14048,GB 14048-2
Iqondo lobushushu(C)		25℃-50℃
Umgangatho woKhuseleko		b20
Isincedisi		OF/SD/MX
Umgama weArcing (mm)		250

Isakhiwo kunye neempawu

Ulwakhiwo: i-electric molded case circuit breaker idla ngokubandakanya inkqubo yoqhagamshelwano, inkqubo yokucima i-arc, indlela yokusebenza, umhlaseli, kunye negobolondo kunye nezinye iindawo.

Iimbonakalo:

Inomthamo ophezulu wokuqhawula kunye nokuzinza okulungileyo okuguquguqukayo kwe-thermal.

Iqokobhe lenziwe ngesixhobo sokugquma idangatye, i-arc-resistant, kunye nokusebenza okuphezulu kokhuseleko.

Indlela yokusebenza iguquguqukayo kwaye inokwethenjelwa, ekulungele ukuba abasebenzisi basebenze ngesandla okanye ngombane.

I-disconnector inemisebenzi eyahlukeneyo yokukhusela, kwaye inokuqhuba izenzo ezihambelanayo ngokweempazamo ezahlukeneyo zesekethe.

Umsebenzi kunye nokusetyenziswa

Umsebenzi: Umbane owenziwe ngombane owenziweyo wesiphaluka unemisebenzi eyahlukeneyo yokukhusela efana nokukhuselwa kokugqithiswa, ukukhuselwa kwesiphaluka esifutshane, phantsi kokhuseleko lombane kunye nokukhusela ukuvuza. Phakathi kwabo, ukukhuselwa komthwalo ogqithisileyo kuthetha ukuba xa isiphaluka sigqithisekile, i-breaker circuit inokukhupha ngokuzenzekelayo isiphaluka ukukhusela izixhobo ukuba zingonakaliswe ngenxa yokushisa; ukukhuselwa kwe-short-circuit kuthetha ukuba xa i-short-circuit isenzeka kwisiphaluka, i-breaker circuit inokunqumla ngokukhawuleza i-current current ukukhusela umlilo kunye nezinye iingozi zokhuseleko; ukukhuselwa kwe-undervoltage kuthetha ukuba xa umbane wokubonelela ngombane ungaphantsi kwexabiso elilinganisiweyo, i-breaker circuit ingaqhawula ngokuzenzekelayo isekethe ukukhusela isixhobo ekonakalisweni; kunye nokukhuselwa kokuvuza kuthetha ukuba xa ukuvuza kwenzeka kwisekethe, i-breaker circuit inokunqumla ngexesha elifanelekileyo unikezelo lwamandla ukukhusela ukhuseleko lomntu. Ukukhuselwa kokuvuza kuthetha ukuba i-breaker circuit inokunqumla umbane ngexesha xa kukho ukuvuza kwisekethe ukukhusela ukhuseleko lomntu.

Usetyenziso: Iintambo zombane ezibunjiweyo zombane zisetyenziswa ngokubanzi kwiinkqubo zombane kwiindawo zokuhlala, zorhwebo, zoshishino kunye nezothutho. Kwintsimi yokuhlala, isetyenziselwa ukukhusela ukhuseleko lweesekethe zasekhaya kunye nezixhobo zombane; kwintsimi yezorhwebo, isetyenziselwa ukukhusela iinkqubo zombane zezakhiwo ezinkulu kunye neendawo zorhwebo; kwintsimi yoshishino, isetyenziselwa ukulawula nokukhusela ukusebenza ngokukhuselekileyo kwezixhobo zefektri kunye noomatshini; kwintsimi yezothutho, isetyenziselwa ukukhusela ukusebenza okuzinzile kwezibane zendlela, iimpawu zikaloliwe kunye nezinye izixhobo.

FAQ

Q1. Zeziphi iingenelo onazo?A1. SingoMvelisi othe ngqo e-Wenzhou China, sinobuchwephesha, amaqela ethu anamava angaphezulu kwama-20years kwi-field.developing, ukuthengisa kunye neqela lemveliso ukukunika elona xabiso likhuphisanayo kunye nenkonzo engcono.

Q2. Yeyiphi eyona mveliso yakho?

A2. I-Circuit Breaker(MCB,RCCB/RCD, RCBO,ELCB, MCCB, ACB); Umnxibelelanisi we-Ac, i-Thermal Relay, i-Magnetic Starter; Ukutshintsha kwe-Isolator, uTshintsho loTshintsho, Tshintshela iQhosha lokuTshintsha, uMkhuseli weVoloji...

Q3. Ngaba ungaprintela eyethu ilogo?

A3. Ewe, inkampani yethu iyafumaneka kuRhwebo kunye neWholelisi kunye ne-OEM kunye ne-ODM.

Q4. Ixesha elingakanani isiqinisekiso somgangatho? A4. Iwaranti yeenyanga ezili-18, iimveliso zethu zihlolwe nge-100%.

Q5. Lingakanani ixesha lokuhambisa?A5. Ngokuqhelekileyo kuthatha malunga ne-3 - 5 iintsuku zokusebenza kwi-odolo yesampuli kunye ne-10 - 25 iintsuku zomyalelo omkhulu.

Q6. Ithini imiqathango yakho yokuhlawula? A6. Ixesha lethu leNtlawulo nguT/T, PayPal, L/C ngokubonakalayo.

Q7. Nasiphi na isatifikethi senkampani yakho okanye imveliso?

A7.Sine-ISO 9001, CE, CB, SEMKO, SAA, TUV.
