Intelligent ukuntywiliselwa anti ukothuka yombane ukuvuza umkhuseli 220V air circuit breaker

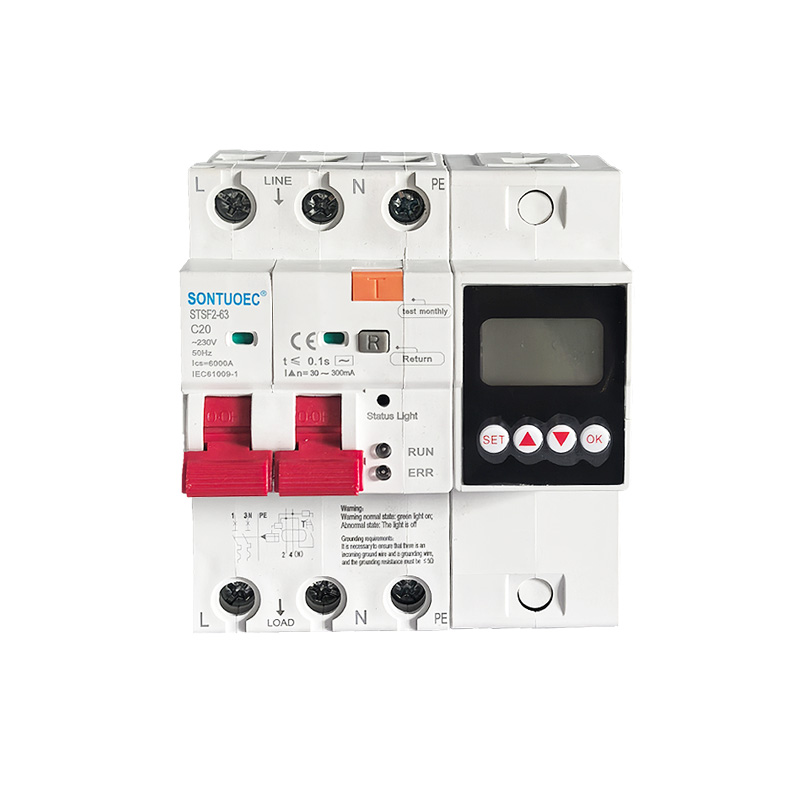

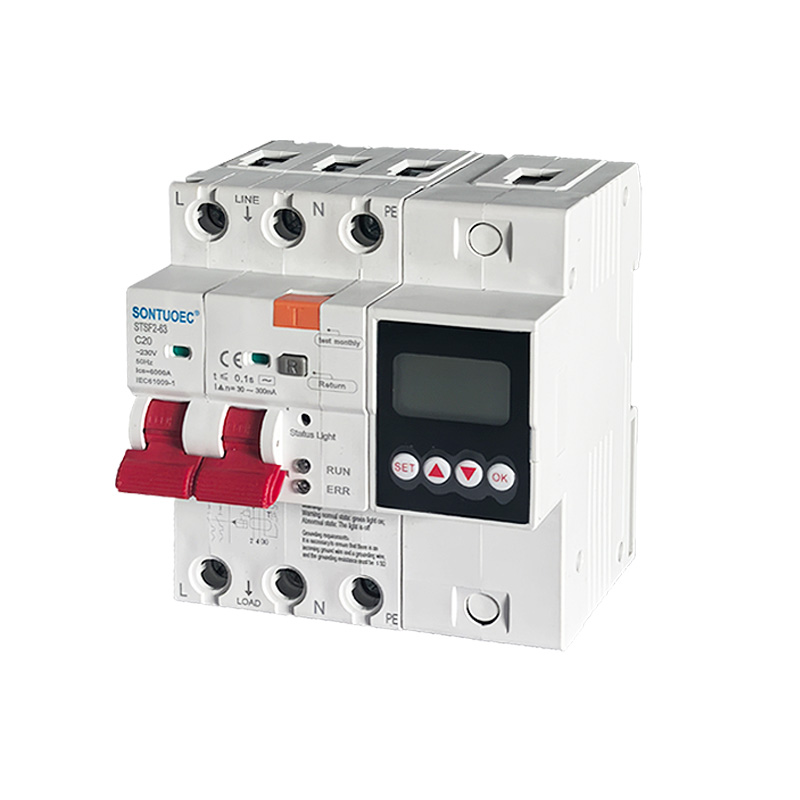

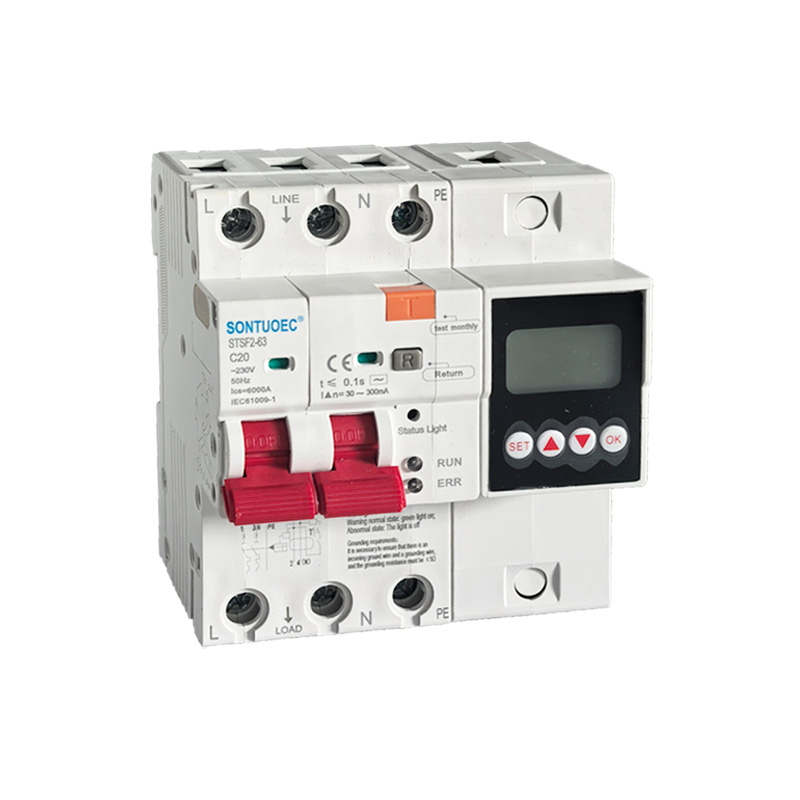

I-STSF2-63/100 100A 2p 4p Multifunctional RCBO ifanelekile kwi-AC 50/60Hz, ilinganiswe kwisekethe ene-voltage ye-230V-400V kunye nomlinganiselo okhoyo we-100A, xa i-aperson ibanjwe okanye i-grid yamandla ivuza. Xa ukuvuza, i-overvoltage, kunye ne-undervoltage ifikelela kumaxabiso amisiweyo, i-residual current circuit breaker inokusebenza ngokukhawuleza ngexesha elifutshane kakhulu ngokukhawuleza ukunqumla umbane. Xa ubushushu bokubeka iliso kwi-residual current circuit breaker ifikelela kwixabiso elibekiweyo, i-monitor ground wire ayixhunyiwe. Xa ixhunyiwe, imveliso ikhupha isandi se-alamu ukukhusela ukhuseleko lwabasebenzi kunye nezixhobo zombane, kwaye inokuphepha Ukuthintela umonakalo kwizixhobo ezibangelwa ku-overvoltage kwigridi yamandla. Inomthwalo omninzi, isiphaluka esifutshane, ukuvuza, ukugqithiswa kwe-Undervoltage kunye nemisebenzi yokukhusela ubushushu obugqithisileyo inokusetyenziselwa ukucima kunye nokucima izixhobo zombane phantsi kweemeko eziqhelekileyo. Iisekethe zokukhanyisa, ngokukodwa ezifanelekileyo kwiinkqubo zokusabalalisa izibane zezoshishino kunye nezorhwebo. Imveliso inomthamo omncinci, isakhiwo esincinci, kunye neendleko ezingcono kunezinye iimveliso ezifanayo. Inenkangeleko entle, Umthamo wokophuka ophezulu wenza ukuba kube lukhetho olulungileyo losasazo lwamandla ekhaya. Le mveliso ihambelana ne-GB / T 16917.1 kunye nemigangatho ye-IEC 61009-1 kwaye ifumene isatifikethi se-CE.

Umzekelo:STFS2-63

Thumela uMbuzo

Ingcaciso yeMveliso

INGCACISO:

Umbane Iimbonakalo	Umgangatho	Iyunithi	IEC/EN 61009-1
	Imowudi		Uhlobo lwe-elektroniki
	Uhlobo(uhlobo lwamaza omhlaba oluvuzayo luvakeleyo)		AC
	Iimpawu zokukhutshwa kwe-Thermomagnetic		B,C,D
	Ilinganiswe ngoku ln	A	6-100A(6,10,16,20,25,32,40,63;80,100A) Inokuhlengahlengiswa
	Iipali	P	1P+N, 3P+N
	Ixabiso lombane i-Ue	V	AC 230, 400 (Inokulungiswa)
	Uvakalelo olulinganiselweyo I△n	A	I-30-300mA (30,100,300mA) i-Adjustable
	Ireyithwe ukwenza intsalela kunye nokwaphulwa kwamandla l△m	A	500
	Ilinganiswe umthamo wesekethe emfutshane Icn	A	6000
	Ixesha lekhefu phantsi kwe-I△n	S	≤0.1
	Ilinganiswe rhoqo	Hz	50/60
	Ulinganiso lwe-impulsewithstand voltage (1.2/50) Uimp	V	4000
	I-voltage yovavanyo lwe-Dielectric kwi-ind.Freq ye-1min	kV	2
	I-Insulation voltage Ui	V	250
	Isidanga songcoliseko		2
Okunyer	Ukhuseleko ngaphezulu/ngaphantsi kwamandla ombane;	kwaye	Ukukhuselwa kobushushu ; Umlilo-alwarm kunye nabanye
Iimpawu zoomatshini	Ubomi bombane		4000
	Ubomi bomatshini		10000
	Isalathisi sangoku		EWE
	Isidanga soKhuseleko		IP20
	Ubushushu obugciniwe	ºC	-5 ~+40(Isicelo esikhethekileyo nceda ubhekiselele
	(ngomndilili wemihla ngemihla≤35ºC)	ºC	ukulungiswa kwembuyekezo yobushushu)
	Ubushushu bokugcina	ºC	-25~+70
Ukuhlohla	Uhlobo loqhagamshelwano lwetheminali		Ikheyibhile/i-Pin-type busbar/U-uhlobo lwebhasi

	Ubungakanani betheminali phezulu/ezantsi kwintambo	mm2	25
	Ubungakanani betheminali phezulu/ezantsi kwintambo	AWG	18-5
	Ubungakanani betheminali phezulu/ezantsi kwibha yebhasi	mm2	25
	Ubungakanani betheminali phezulu/ezantsi kwibha yebhasi	AWG	18-3
	Ukunyuka		Kwi-DIN kaloliwe EN 60715(35mm) ngesixhobo sokuqhotyoshwa esikhawulezayo
	Uqhagamshelwano		Ukusuka phezulu

UBUSHUSHU BOMOYA OBUYINGQIWEYO:

1.Iqondo lobushushu lomoya elingqongileyo aliyi kuba ngaphantsi kwe -5 1C, lingabi ngaphezulu kwe+40 C, kwaye ixabiso eliphakathi lemihla ngemihla aliyi kudlula+35 C.

2. Ukuphakama: Ukuphakama kwendawo yofakelo akuyi kudlula i-2000m.

3.Iimeko ze-atmospheric

Umoya ucocekile, kwaye kubushushu obuphezulu be+40 'C, ukufuma komoya okuhambelanayo abukho phezulu Ngaphezu kwama-50%. Ukufuma okuphezulu kuvunyelwe kumaqondo obushushu asezantsi, anje nge+20 C.

Ukufuma okunxulumeneyo akufunekanga kudlule kwi-90%. Ngenxa ye-condensation ephakathi ngamanye amaxesha okubangelwa utshintsho lobushushu, Ingqalelo kufuneka ihlawulwe ekuthatheni amanyathelo afanelekileyo.

4. Udidi loFakelo Iindidi zoFakelo zi-lI kunye ne-III

Ngoku kunye nenani leepali

100A: Oku kubonisa ukuba i-RCBO ilinganiswe kwii-amps eziyi-100. Ukulinganiswa kwangoku lixabiso eliphezulu langoku ukuba i-breaker circuit inokuqhubeka ngokuqhubekayo ngaphandle kokubangela ukushisa okanye umonakalo.

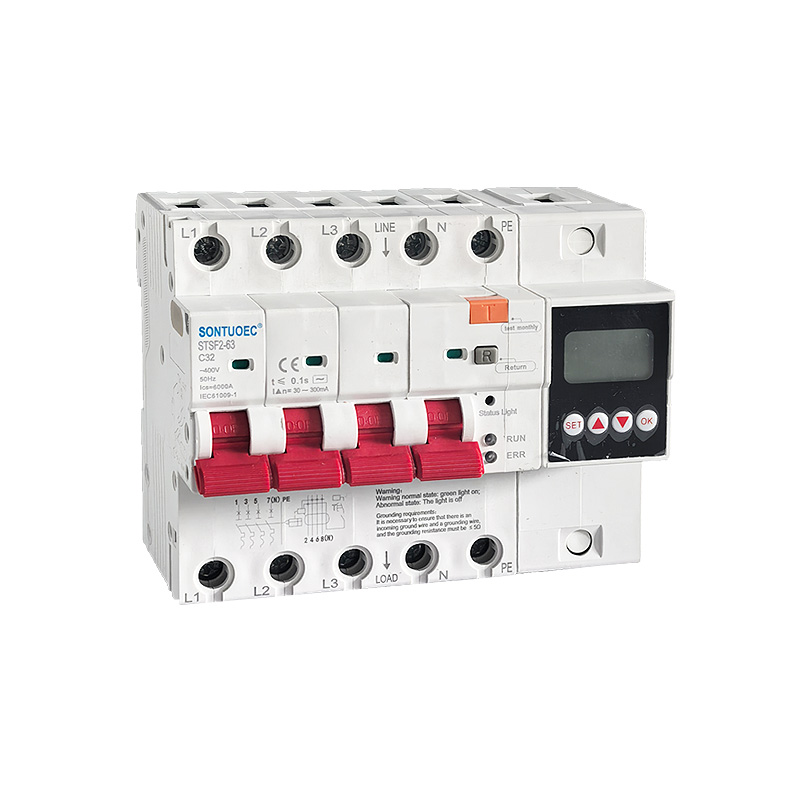

I-2p, i-4p: I-"p" apha imele inani lezibonda, oko kukuthi, inani lezigaba zesekethe apho i-breaker circuit inokudibaniswa. I-2p ithetha ukuba i-circuit breaker inokudibaniswa kwizigaba ezimbini zeesekethe (ngokuqhelekileyo i-Fire kunye ne-Zero), kanti i-4p ithetha ukuba inokudibaniswa kwizigaba ezine zesiphaluka (ngokuqhelekileyo izigaba ezintathu zoMlilo kunye neZero).

Imisebenzi emininzi

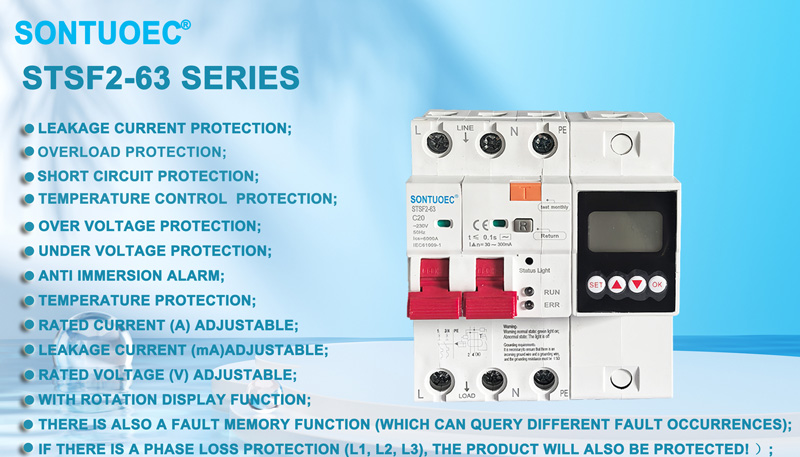

I-Multifunctional ibonisa ukuba le 100A 2p 4p Multifunctional RCBO ixhotyiswe ngemisebenzi eyahlukeneyo yokukhusela. Ukongeza kokugqithiswa okusisiseko kunye nokukhuselwa kwesiphaluka esifutshane, kunokubonelela ngokhuseleko lokuvuza, ukukhuselwa kwe-undervoltage, ukukhuselwa kwe-overvoltage, njalo njalo. ukhuseleko lobushushu，I-alam yokungena kwamanzi,I-Adjustable current kunye ne-voltage.Olu khuseleko luvumela i-RCBO ukubonelela ngokhuseleko olubanzi lweesekethe kunye nezixhobo.

Isilumkiso!

Isilumkiso kwimeko yesiqhelo: ukukhanya okuluhlaza kulayitiwe;

Imeko engaqhelekanga: Isibane sicinyiwe

Iimfuno zokumisela:

Kuyimfuneko ukuba kuqinisekiswe ukuba kukho ucingo olungenayo olungenayo kunye nocingo olusezantsi, kwaye ukuchasana komhlaba kufuneka kube yi-s 5Q!

Imeko yesicelo

Kuba i-RCBO inemisebenzi eyahlukeneyo yokhuseleko, ihlala isetyenziswa kwiisekethe ezifuna ukhuseleko lomntu, njengeesekethe zombane zokukhanyisa, amandla abuthathaka, kunye nezixhobo zombane ezindlwini nakwiindawo zikawonke-wonke. Ezi ndawo zihlala zibonakaliswa ngamanzi kunye nokufuma, okunokubangela iingozi zokuvuza ngokulula. Ukongeza, i-RCBO inokuphinda isetyenziswe kwiinkqubo zombane kwimizi-mveliso apho ukhuseleko lomntu luyimfuneko, ezinje ngeesekethe zolawulo lokukhanya kweperipheral, iinkqubo zeradar, kunye nezixhobo zokuhlola ijoloji.
