Umnxibelelanisi we-AC we-AC

I-STH8-100 CORCHE COCCE ye-AC ye-AC ye-AC yenzelwe ikakhulu ye-AC 50hz (okanye i-60hz), kunye ne-voltage esebenzayo ukuya kwi-400v. Banokusebenza ngokulinganayo okwangoku ukuya kuthi ga kwi-100a phantsi kwe-AC-7a yokusetyenziswa kwe-ACIG kwaye ukuya kuthi ga kwi-40A phantsi kwe-40A phantsi kwenqanaba lokusetyenziswa kwe-AC-7B. Ezi qulari zisetyenziselwa ukulawula imithwalo esezantsi okanye kancinci kancinci kwizicelo zokuhlala kunye nezicelo ezifanayo, kunye nokulawula imithwalo yeemoto zasekhaya. Imveliso isetyenziswa ikakhulu kumakhaya, iihotele, amagumbi, izakhiwo zeofisi, izakhiwo zikawonkewonke, iivenkile ezinkulu, iindawo zemidlalo, ukufezekisa imisebenzi yolawulo ezenzekelayo. Ukuthobela imigangatho: IEC61095, GB / T17885.

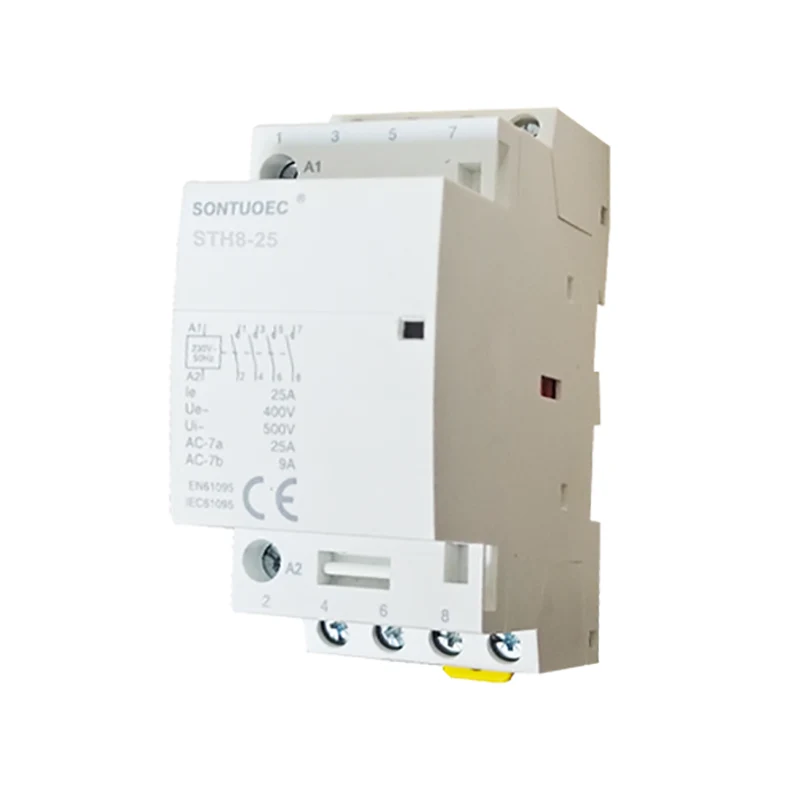

Umzekelo:STH8-25

Thumela uMbuzo

Ingcaciso yeMveliso

Uhlobo	i-Nortector
Ukulinganisa A	16	20	25	32	40	63	100
I-AIDS	Ewe
I-Bctsiotive i-auxul	Ewe
I-bactc Ulawulo lweAuxiling lubhelu Iziqendu	Ewe

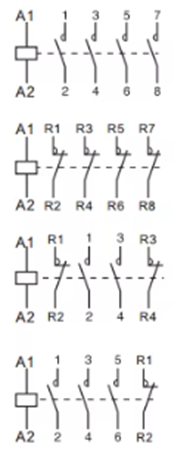

Uhlobo					Ububanzi kwi-9mm iimodyuli
1p	Inqanaba (LN) I-AC-7A	Inqanaba (LN) I-AC-7A	Ulawulo I-Voltage (God) (50hz)	Uqhagamshelo
	16a	6a	24	1no	2
	20a	7a	110	1nc
	25A	9a	230
2p
	16a	6a	24	2no	2
	20a	7a	110	1NO + 1nc
	25A	9a	230	I-2nc
	32a	12a	24	2no	4
	40A	18a	110	1NO + 1nc
	63A	25A	230	I-2nc
	I-100a	_	24		6
			110	2no
			230
3p
	16a	6a	24	3no	4
	20a	7a	110	3nc
	25A	9a	230
	32a	12a	24	3no	6
	40A	18a	110	3nc
	63A	25A	230
4p
	16a	6a	24	4no	4
	20a	7a	110	I-4nc
	25A	9a	230	2NO + 2nc 3NO + 1nc
	32a	12a	24	4no	6
	40A	18a	110	I-4nc
	63A	25A	230	2NO + 2nc 3NO + 1nc
	I-100a	_	24	4no	12
			110
			230

Ulwakhiwo oluphambili

I-AC ye-AC ye-AC yeKhaya ihlala inamacandelo alandelayo:

Inkqubo yoqhakamshelwano: kubandakanya abafowunelwa abaphambili kunye nabafowunelwa abancedisayo. Umfowunelwa ophambili usetyenziselwa ukuvula kwaye uqhekeze isekethe enkulu, edla ngokukhululekileyo yangoku; Ukuqhakamsheni komncedisi kusetyenziselwa ukuvula kwaye kuqhekeke isekethe yokulawula, enomncinci onqabileyo.

Inkqubo ye-electromagnetic: iqulathe i-iron gore, i-armaki kunye nelahleko. Xa ikhonkco lixhotyiswe, i-core ivelisa intsimi yemagnethi etsala amanzi kwaye ivala abafowunelwa; Xa i-coil inamandla, intsimi yemagnethi inyamalale, i-Armastu ikhutshwe kwaye umfowunelwa waphulwe.

Isixhobo sokucima isixhobo se-ARC: Isetyenziselwa ukucima i-ARC xa abafowunelwa benqatshelwe, ukuthintela i-ARC ukuba ingabangela umonakalo kubafowunelwa.

Iqokobhe kunye nezixhobo: Iqokobhe lisetyenziselwa ukukhusela izinto zangaphakathi kwimpembelelo yendawo yangaphandle; Izicelo zibandakanya iibakaki ezixhonyiweyo, i-terminals, njl.

Imigaqo yokusebenza

Umgaqo wokuSebenza oCholokazi lweZindlu ekhaya usekwe kumgaqo wokungeniswa kwe-elektromagnetic. Xa ikhonkco lixhotyiswe, intsimbi ihamba ivelisa intsimi yemagnethi etsala i-Armature kwaye ivala abafowunelwa; Xa i-claip inamandla, intsimi yemagnethi inyamalale, i-Armastu ikhutshwe kwaye umfowunelwa unqanyulwe. Ngokulawula amandla okufumana amandla kunye nokudakumba kwe-coil, ukulawula kude nokukhusela imijikelezo yekhaya kunokufezekiswa.

Iiparamitha zobugcisa

Ezona paramitha eziphambili zezonxibelelwano ze-AC zekhaya zibandakanya i-voltage enqwenelekayo, ikalwe ngoku, idlule rhoqo, ukudibanisa nokwaphula amandla njalo. Ukukhethwa kwezi paramitha kufuneka kumiselwa ngokweyona meko yesekethe yekhaya ukuqinisekisa ukusebenza okuqhelekileyo kunye nokusetyenziswa ngokukhuselekileyo komntu ohlelayo.

I-voltage enqwenelekayo: ibhekisa kwinqanaba le-voltage xa umsasazi usebenza ngesiqhelo.

I-Rated Ring: ibhekisa kwelona candelo linokukhulisa ixesha elide phantsi kombane ophakathi.

I-Riked Frequency: I-Ropecancy yoMsebenzi woNxweme xa umsasazi usebenza ngokuqhelekileyo.

Ukudibanisa kunye nokuqhekeka komthamo: Owona mphezulu owona mphezulu owonelisekileyo unokuqhagamshela ngokuthembekileyo kwaye aphule phantsi kweemeko ezithile.
