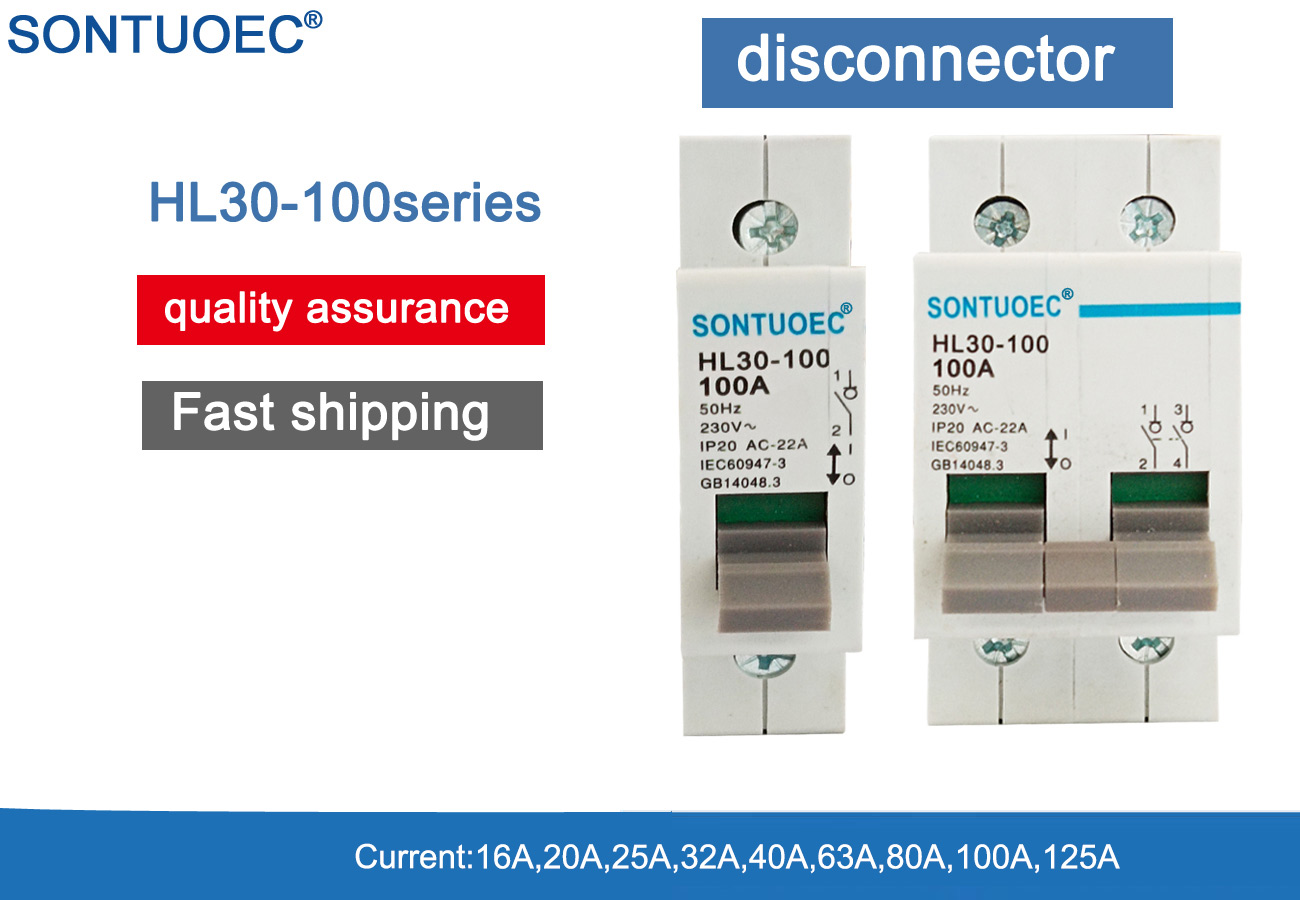

I-HL30-100 I-STOATOTO

I-Sontuioec ngumthengisi kunye nomthengisi we-HL30-100 i-STAtor swit kunye nomgangatho wokhuphiswano kunye nexabiso eTshayina.

Thumela uMbuzo

Ingcaciso yeMveliso

Igama lemveliso	I-HL-30 i-STOATOR Swing switch
Isibonda	I-1p 2P 3P 4P 4P
Ikaliwe Okwangoku	16,25A, 40A, I-63a, 80A, 100A, 125a
Ikaliwe I-Voltage	I-1P: AC230V I-2p, 3P.4P: AC400V
I-inssen voltage Ui	I-690v
Ikaliwe Impembelelo i-voltage (1.2 / 50) I-UIMP	I-6kv
Ilinganiselwe imfutshane isekethe i-ICW yangoku	12E / 1s
Ilinganiselwe imfutshane ukwenza isekethe	20le / 0.1s
Ukwenza into Ukwaphula amandla	3e, 1.05Ue, cosφ = 0.8
Sebenzisa udidi	I-AC-21B, AC-22A
Umbane Ubomi	1500
Umatshini Ubomi	8500
Ungcoliseko Isidanga	3
Ukugcinwa Ubushushu	-35ºc ~ + 70ºC
Ufakelo ukuphakama	<2000m
Ubuninzi I-Wiring Ithala (NM²)	16 (20a ~ 63a) 50 (80A ~ 125a)
Ubuninzi Umda kwi-torque	2.0 (20a ~ 63a) 3.5 (80A ~ 125a)

Imigaqo yokusebenza

Umgaqo wokusebenza kwe-HL30-100 i-Is Switch ilula. Inomfowunelwa omnye okanye abangaphezulu onokuthi uvulwe okanye uvaliwe xa itshintshiwe. Xa abafowunelwa bevaliwe, iiseli kwipakethi yebhetri ziqhagamshelwe, zivumela ukuba zidlule. Xa abafowunelwa bevulekile, unxibelelwano phakathi kweeseli luqhawukile kwaye alukho ngoku.

Imeko yesicelo

I-1p, 2p, 3P, 4P, i-4P micro Switch Station (i-MSD). Xa i-HL30-100 i-STATOR ivuliwe, kukho umgama wokufakelwa phakathi kwabafowunelwa kunye nophawu olucacileyo lwediski ngokwemfuno nganye. Ingasetyenziswa njengotshintsho oluphambili okanye ukuvula okanye ukuvala isekethe.

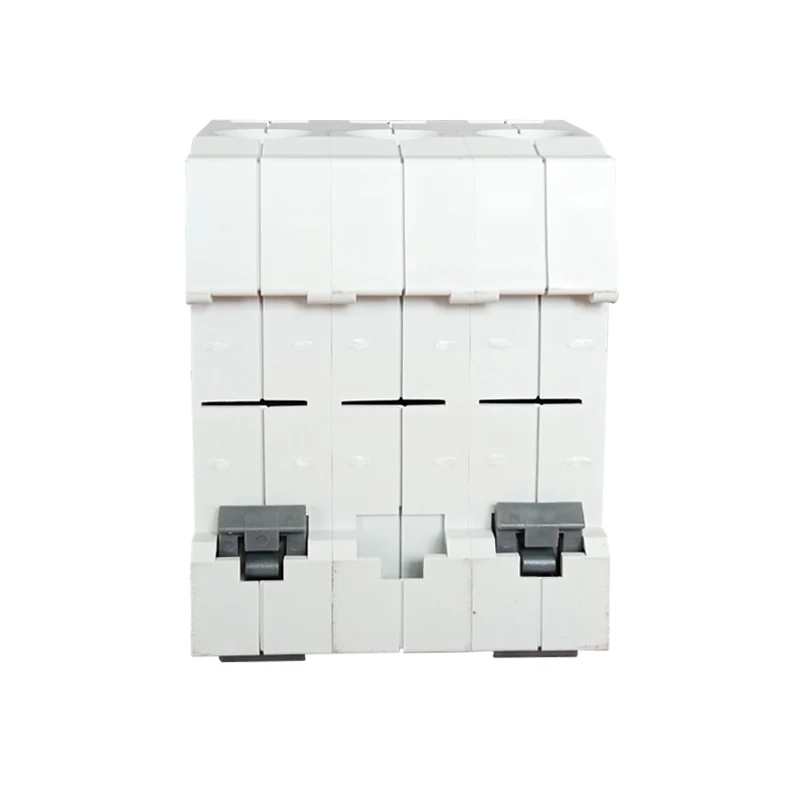

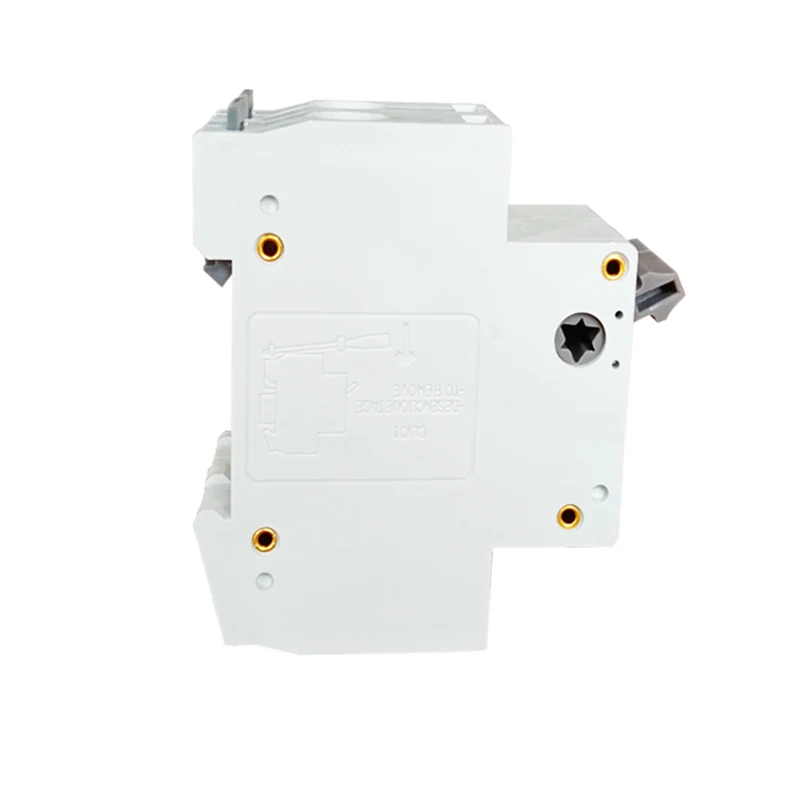

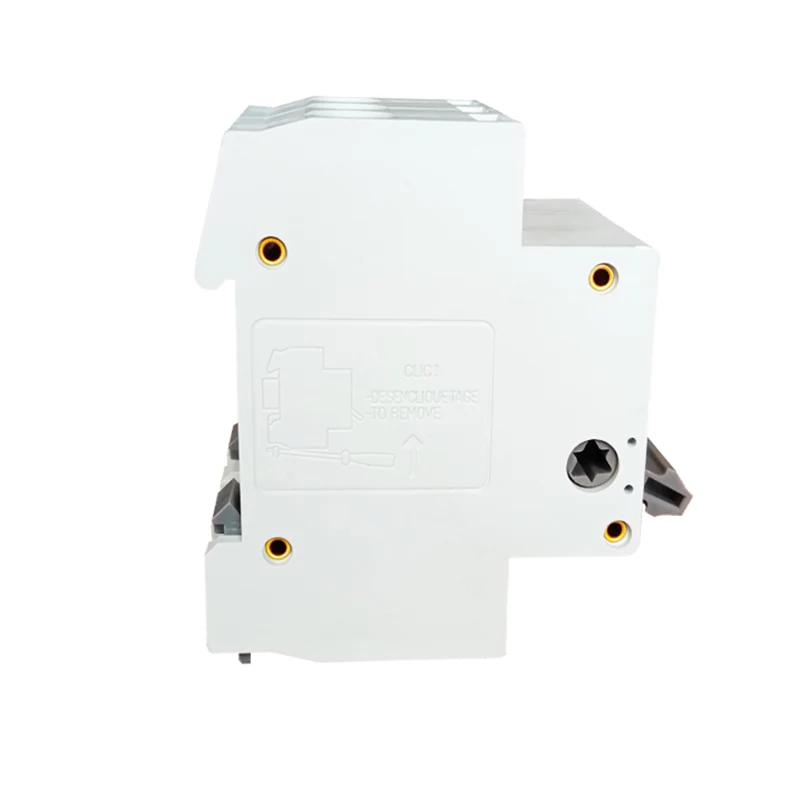

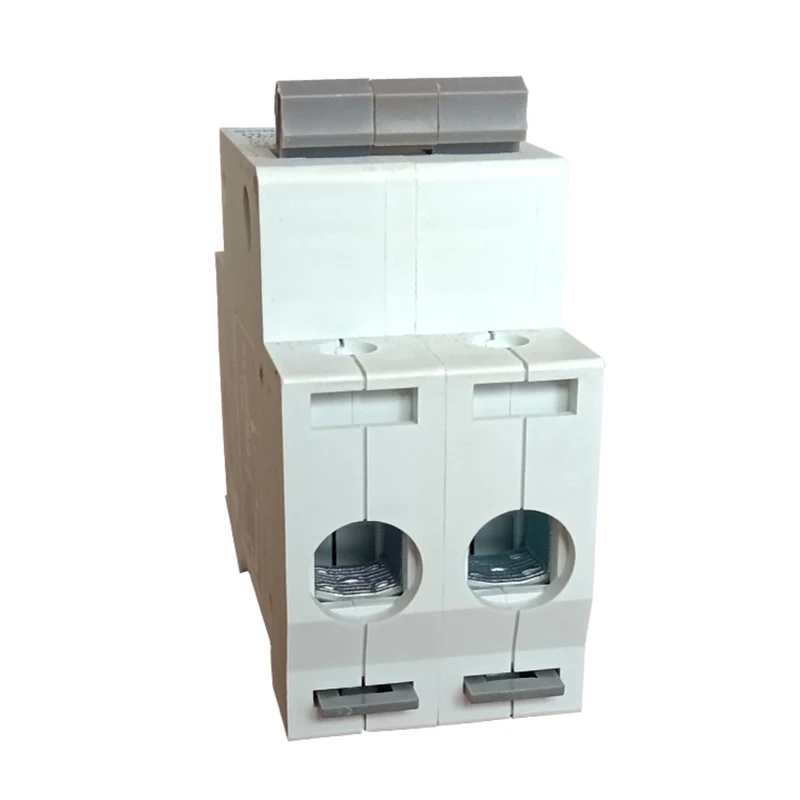

HL30-100 Isolator Switch
