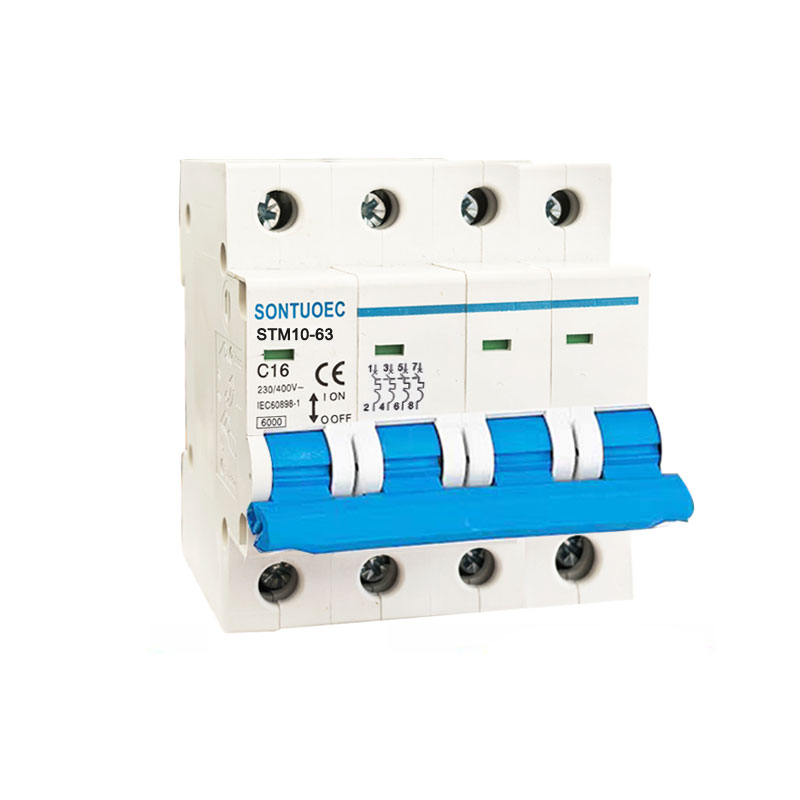

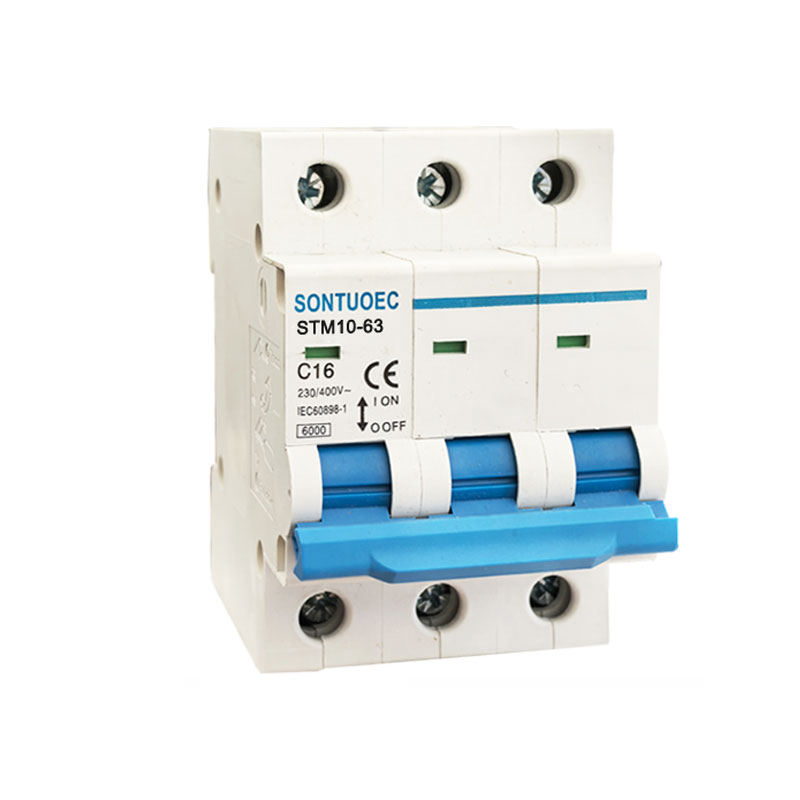

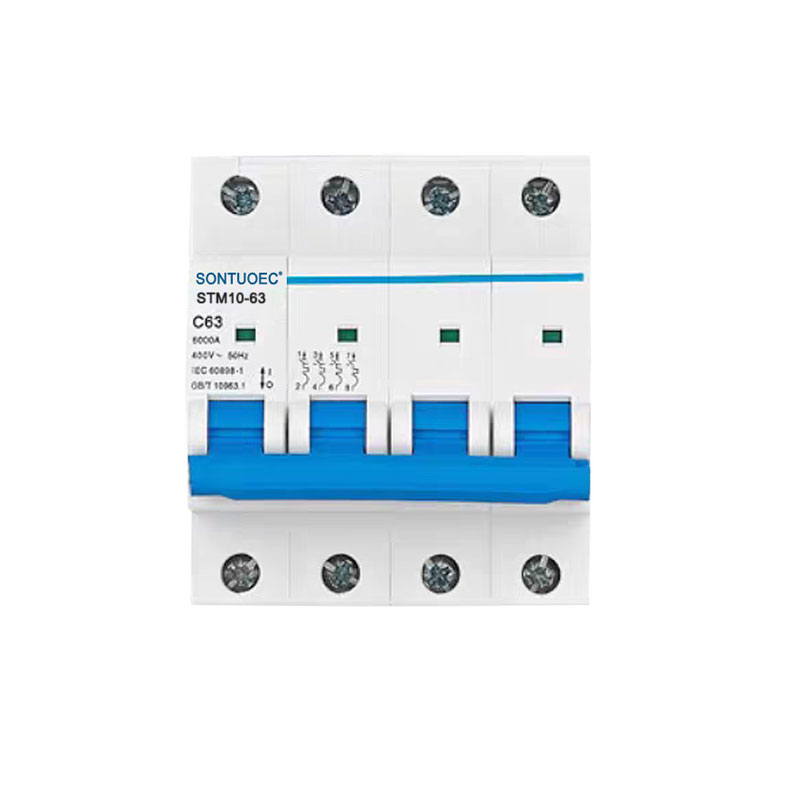

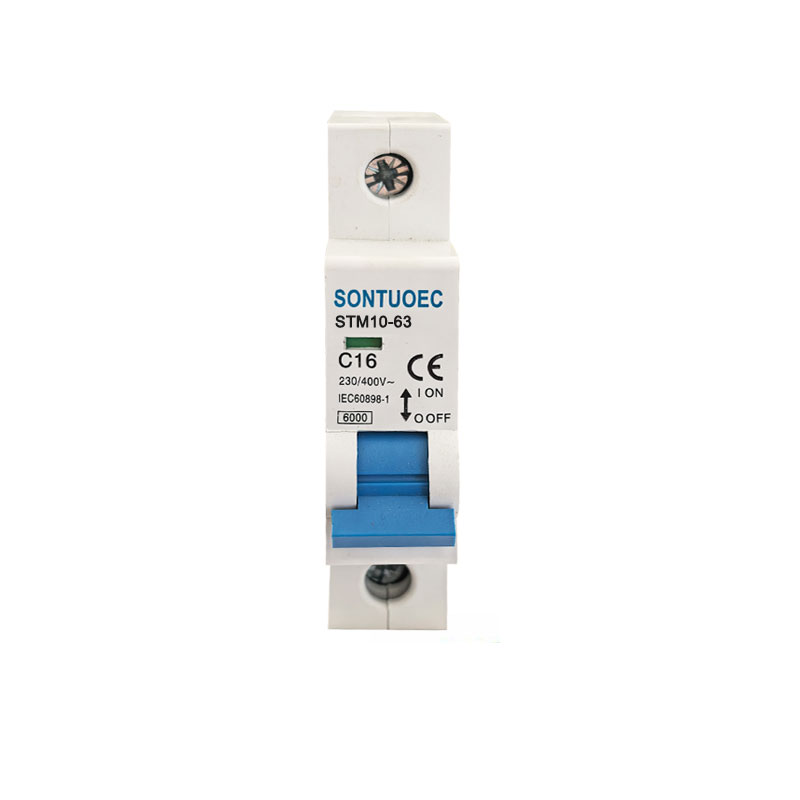

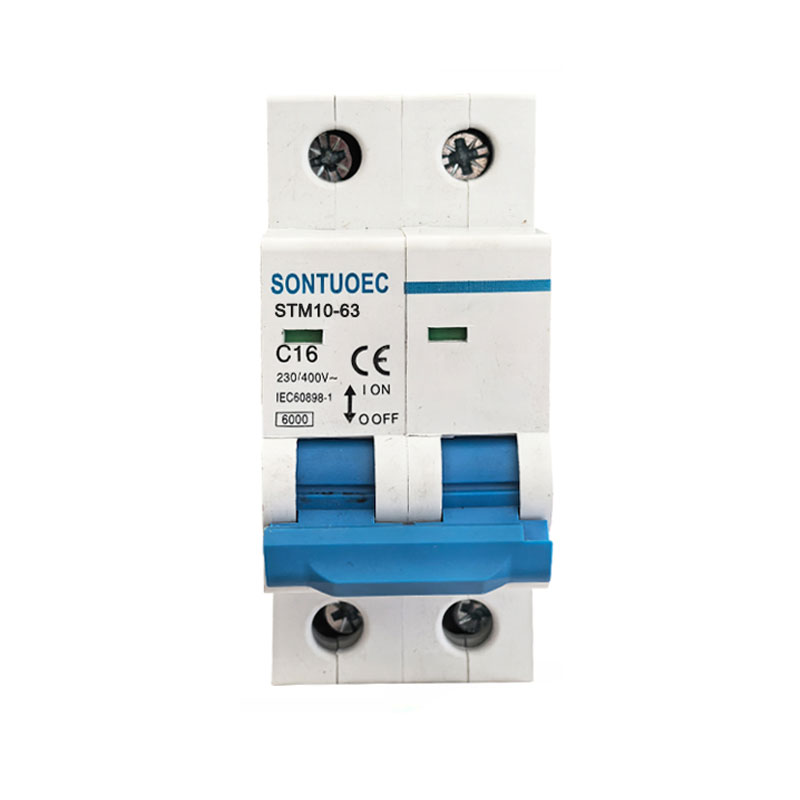

Ifektri yefektri yefektri ye-MCB STM10-63 Sering 6ka encinci yeSekethe

I-Sontuec ngomnye wabathengisi baseTshayina / abavelisi bezobume bemveliso yombane amancinci ombane stM10-63 Seright kunye neqokobhe eliphezulu, iqhina elineflethi. Ilungele inkqubo yamandla engama-50 okanye engama-60, i-400v kunye nezantsi, i-UI 63A kwaye ngezantsi.it kwiMigangatho ye-IEC60863.1

Umzekelo:STM10-63

Thumela uMbuzo

Ingcaciso yeMveliso

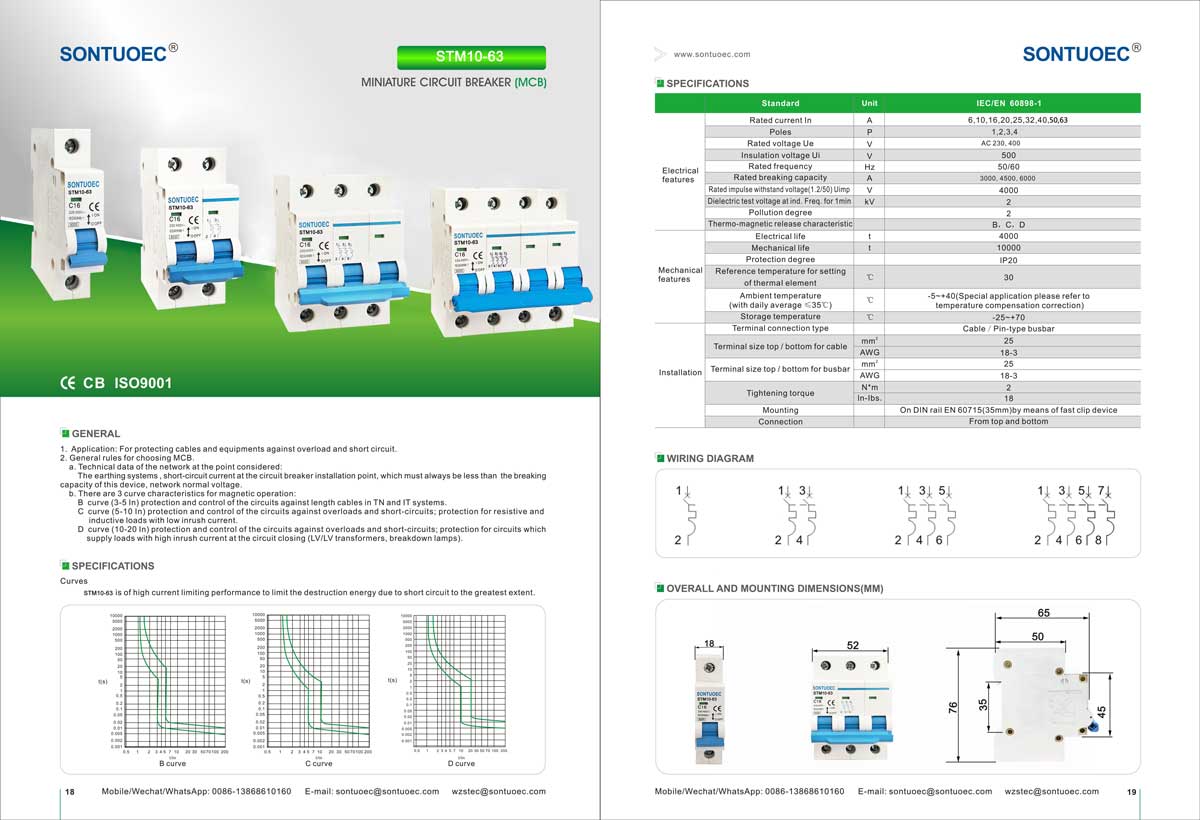

IINKCAZO:

	Umgangatho		IEC / I-AFL 60898-1
Umbane	Ikalwe okwangoku	A	I-1,2,4,1,10,10,16,20,25,32,40, 353a
Iimbonakalo	Izibonda	P	I-1,2,3,4
	I-voltage ye-UE	V	I-AC 230, 400
	I-inshurensi yombane	V	500
	Idlwengulwe rhoqo	Hz	I-50/60
	I-Rating Ukophula amandla	A	I-3000, 4500, i-6000
	I-Interse i-Intelsend i-Voltage (1.2 / 50) I-UIMP	V	4000
	I-Deectric Voltage e-Inds.freq.forn 1 imiz	Kv	2
	Isidanga sokungcola		2
	Iimpawu zokukhutshwa kwe-thernetic		B, c, d
Umatshini	Ubomi boMbane	t	4000
Iimbonakalo	Ubomi boMatshini	t	10000
	Isidanga sokhuselo		IP20
	Iqondo lokushishina lokuseta	ºc	30
	Inqaku le-thermal	ºc	30
	Ubushushu obugciniwe	ºc	-5 ~ + 40 (Isicelo esikhethekileyo nceda ujonge
	(nge-avareji yemihla ngemihla ≤35ºC)	ºc	Ukulungiswa kweqondo lobushushu)
	Iqondo lokugcina	ºc	-25 ~ + 70
Ufakelo	Uhlobo lwesiphelo		I-Cable / uhlobo lwe-pin-uhlobo lwebhasi
	Ubungakanani besiphelo sendlela ephezulu / ezantsi kwintambo	mm2	25
		I-awg	Ngomhla we-18 ku-Matshi
	Ubungakanani be-therminal ephezulu / ezantsi kwetyholo	mm2	25
	Ubungakanani be-therminal ephezulu / ezantsi kwetyholo	I-awg	Ngomhla we-18 ku-Matshi
	Ukuqinisa i-torque	N*m	2
	Ukuqinisa i-torque	Kwi-lbs	18
	Ukunyuka		Kuloliwe kaDen 60715 (35mm) ngohlobo lwesixhobo seklip ekhawulezayo
	Uqhagamshelo		Ukusuka phezulu nangaphantsi

Imisebenzi ephambili ye-STM10-63 Ukophula umphunga wesekethe omncinci

Ukukhuselwa kwe-1.Oversover: Xa okwangoku kwisekethe kungaphezulu kwexabiso le-MCB, i-STM10-63 i-STM103 encinci yesekethe inqunyulwe ngokuzenzekelayo kwisekethe kunye nezixhobo ekusasazeni kakhulu.

2.Khuselo lwesekethe: Xa isiphaluka sethutyana senzeka kwisekethe, i-STM10-63 encinci yokuqhekeza isiphaluka Sika isiphaluka sesekethe sangasekele ukonakalisa isiphaluka sesekethe.

Ukukhuselwa (ezinye i-MCBs zinamsebenzi): Kwimiphu yokuvuza i-aKiki, xa kukho ukuvuza kwisekethe, i-STM10-63 encinci yokuphelisa ukhuseleko lwakho.

Umgaqo wokusebenza kwe-MCBS

I-MCBS ihlala iqulethe i-themaguc okanye i-chietrong ye-elektroniki yohambo ngaphakathi, esetyenziselwa ukufumana utshintsho kwisekethe yangoku kwisekethe. Xa okwangoku ingekabi nakho, i-sperd ibangela indlela yokuhamba kwe-MCB, ebangela i-STM10-63 yesekethe encinci yesekethe ngokukhawuleza isiphaluka.

I-1.Thember Magnetic Paymatic: isebenzisa ubushushu obuvelisiweyo xa kusenziwa ukuqhubeka komqhubi ukuze kuqhubekise ukuhamba. Xa okwangoku inkulu kakhulu, umqhubi wesifundo uyathandana, ebangela i-bimatal ngaphakathi kwe-themaguc yokubetha ye-thermal ukuya egodini, ngaloo ndlela zikhangele kwindlela yokuhamba.

2.Ubheja: Isebenzisa izinto ze-elektroniki ukubona utshintsho lwangoku kwaye ulawule isenzo sendlela yokuhamba. Xa kuchongwe okwangoku, ukugqabhuka kwe-elektroniki kuthumela uphawu kwindlela yokuhambahamba ukuze unqumle isekethe.

Imeko yesicelo ye-MCB

I-MCBS isetyenziswa ngokubanzi kwiinkqubo zombane kwiindawo zokuhlala, ezorhwebo kunye nemizi mveliso ukhusela isekethe kunye nezixhobo ezivela kuMonakalo obangelwe yimijelo engaqhelekanga. Ziqhele ukufakwa kwiibhokisi zokuhambisa, iiKwindows okanye iiKhabhinethi zokulawula kwaye zisetyenziswa njengotshintsho oluphambili okanye isebe lesekethe.

Ukukhetha kunye nokufakwa kwe-MCBS

1.Umxholo: Xa ukhetha i-MCBS, kufuneka uqwalasele izinto ezinjengexesha lesekethe, inqanaba lesiqhelo, iimpawu zokhuseleko, nokuba ukhuseleko luyafuneka. Kukwabalulekile ukuqinisekisa ukuba i-STM10 ye-STM10 ye-STM10 yeSekethe eyaphula inqanawa encinci kunye nemigangatho yombane yendawo kunye nemigaqo.

2.Ukusebenza: I-STM10-63 ISikelo elincinci elincinci lafakwa kwindawo eyomileyo, enomoya engenaziphako kwaye iqinisekisa ukuba ikhutshiwe ngokuchanekileyo nangokukhuselekileyo. Ngexesha lokufakwa, imigaqo-nkqubo efanelekileyo yoKhuseleko loMbane kunye neenkqubo zokusebenza kufuneka ziqwalaselwe.

FAQ

I-Q1. Iqhuba njani umzi-mveliso wakho malunga nolawulo lomgangatho?

A. Zonke iimveliso ziya kuba yi-100% ihlonishwe ngaphambi kokuthumela.

Q2. Ngaba ungumveli okanye urhwebo?

A. Singumenzi onamava angaphezu kweminyaka engama-20, kwaye sinokuqiniseka ngexabiso lethu sisiseko sokuqala, sibize kakhulu kwaye sinokhuphiswano.

Q3. Yeyiphi imigaqo yokuhlawula ekhoyo?

A. Samkela i-TT, i-30% yediphozithi kunye ne-70% ye-Agaivent ikopi ye-BL.

I-Q4. Linjani ixesha lokuhanjiswa?

A. Ngokwesiqhelo kuya kuthatha malunga neentsuku ezingama-25 zokuvelisa.

I-Q5. Ndixelele umgangatho wephakheji?

A. Ngokwesiqhelo ziibhokisi, kodwa kwakhona singakwazi ukupakisha ngokwemfuno yakho.
