Uhlobo lwe-elektroniki i-RCCB

Xa intsalela yentsalela yesekethe idlula ixabiso elisetwayo, uhlobo lwe-elektroniki luza kwenza ngokukhawuleza ukusika isekethe, ngaloo ndlela kuthintela iingozi zothuso lombane kunye nemililo yomoya. Ii-RCC ze-elektroniki zisebenzisa izinto ze-elektroniki kunye ne-microprocessostis kunye nobunye ubuchwephesha bokubonelela ngovakalelo olukhulu kunye nokuchaneka.

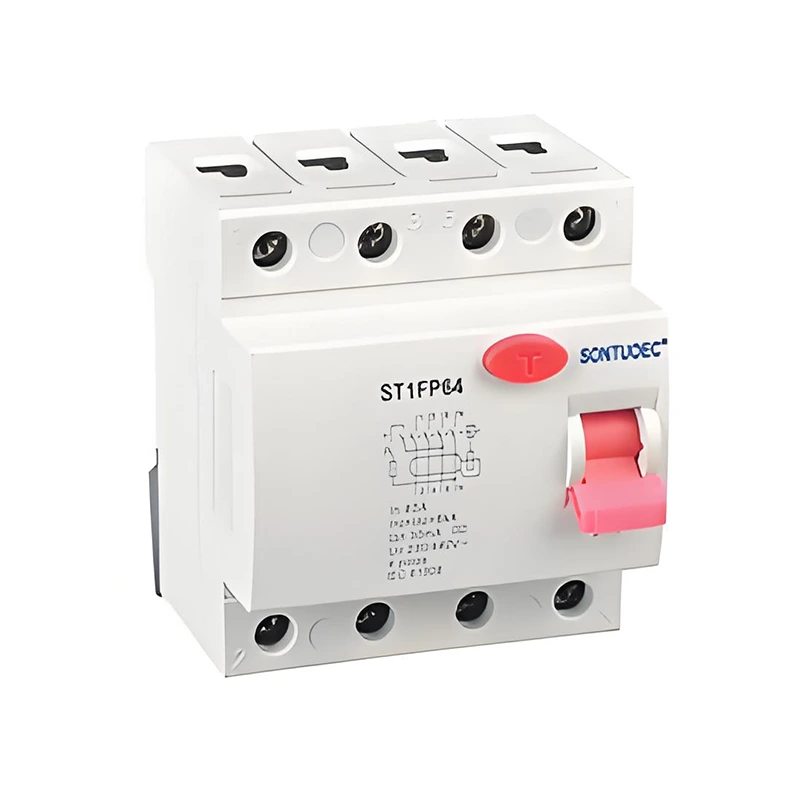

Umzekelo:ST1PF64

Thumela uMbuzo

Ingcaciso yeMveliso

ISandird			IEC / En61008.1
Umbane	Chwetheza		Uhlobo lwe-electro-Magnetic, uhlobo lwe-elektroniki
Iimbonakalo	Ikalwe okwangoku	A	Kwaye, kwaye
	Izibonda	P	I-2,4
	I-volting volge	V	I-AC 240/115v; I-AC 230 / 400V
	Ikalwe okwangoku		16,25,32,40 ,63A
	Imvakalelo ye-△ △ n	A	I-0.01,0.03,0.1,0.3,0.5
	I-inshurensi yombane	V	500
	Ukuthatha intsalela yentsalela kunye	A	630
	Ukophula amandla i △ M	A	630
	I-C	A	6000
	I-SCPD Fuse	A	6000


	Idlwengulwe rhoqo	Hz	I-50/60
	Isidanga sokungcola		2
Umatshini	Ubomi boMbane	t	4000
Iimbonakalo	Ubomi boMatshini	t	10000
	Isidanga sokhuselo		IP20
	Ubushushu obugciniwe	ºc	-25 ~ + 40
	(nge-avareji yemihla ngemihla ≤35ºC)	ºc	-25 ~ + 40
	Iqondo lokugcina	ºc	-25 ~ + 70
Ufakelo	Uhlobo lwesiphelo		I-Cable / Uhlobo lwe-U-Uhlobo lwebhasi
	Ubungakanani besiphelo sendlela ephezulu / ezantsi kwintambo	mm2	25
		I-awg	3.18
	Ubungakanani besiphelo se-terminal / ezantsi kwetyhefu	mm2	25
	Ubungakanani besiphelo se-terminal / ezantsi kwetyhefu	I-awg	3.18
	Ukuqinisa i-torque	N * m	2.5
	Ukuqinisa i-torque	Kwi-lbs	22
	Ukunyuka		Kuloliwe kaDen 60715 (35mm) ngohlobo lwesixhobo seklip ekhawulezayo
	Uqhagamshelo		Ukusuka phezulu nangaphantsi

Imigaqo yokusebenza

Umgaqo wokusebenza ohlobo lwe-elektroniki i-RCCB isekwe kwimithetho-siseko yokungeniswa kwe-elektromagnetic kunye nokulinganisa okwangoku. Xa isigaba kunye nemijikelezo yomgca we-zero kwisekethe ayilungelelaniswanga, i.E. Intsalela yangoku ekhoyo, i-Shotford yangoku isebenza, i-Shotforment yangoku ngaphakathi kwi-RCCB iya kuyifumana le nto ingafakwanga kwaye ivelise uphawu oluhambelana. Lo mqondiso, emva kokuqhubekeka yisekethe ye-Elektroniki, iya kubangela isenzo sendlela yokukhutshwa, ukwenzela ukuba umphuli wesekethe anqumle ngokukhawuleza isiphaluka.

Iimpawu eziphambili

Imvakalelo ephakamileyo: Ii-elektroniki ze-elektroniki ziyakwazi ukufumana imijelo encinci yentsalela, ihlala ingaphantsi kwe-30ma okanye iphantsi.

Intshukumo ngokukhawuleza: Nje ukuba intsalela ifunyenwe igqithe ixabiso leseti, i-RCCB iya kwenza kwangoko ukusika isekethe kwaye kuthintele iingozi.

Ikhuselekile kwaye ithembekile: i-RCB ingaba kukhona amacandelo aphezulu okwi-elektroniki aphezulu kunye netekhnoloji ye-microprocessor ukubonelela ngokuthembeka okuphezulu kunye nozinzo.

Kulula ukufaka kwaye ugcine: Ii-elektroniki ze-elektroniki zihlala zinesakhiwo secandelo kunye ne-wiring elula, zenza ukuba kube lula ukufaka nokugcina.

Imeko yesicelo

I-RCCs ye-elektroniki isetyenziswa ngokubanzi kwiimeko ezahlukeneyo apho ukhuseleko lombane kufuneka, kubandakanya kodwa kungaphelelanga ku:

Izakhiwo zokuhlala nezorhwebo: isetyenziselwa ukukhusela izixhobo zombane kunye nokhuseleko lobuqu, ukuthintela iingozi zothusayo zomoya kunye nemililo yombane.

Imigca yokuvelisa imizi-mveliso: isetyenziselwa ukukhusela izixhobo zombane ezinjengeemoto kunye nezolo ezivela ekusebenzeni okuqhelekileyo, ukuthintela ukonakaliswa kwezixhobo kunye nexesha lokuphumla ngenxa yokuvuza kunye nokugcwala.

Amaziko oluntu: Njengabafana nezibhedlele, izikolo, amathala eencwadi kunye nezinye iindawo, asetyenziselwa ukuqinisekisa ukusebenza ngokukhuselekileyo kwezixhobo zombane kunye nokusetyenziswa ngokukhuselekileyo kombane.
