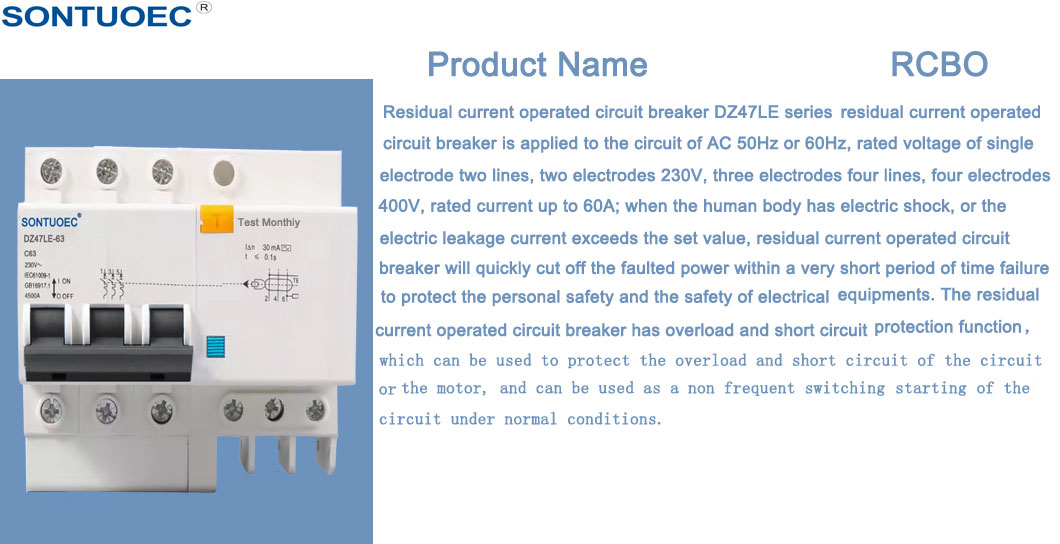

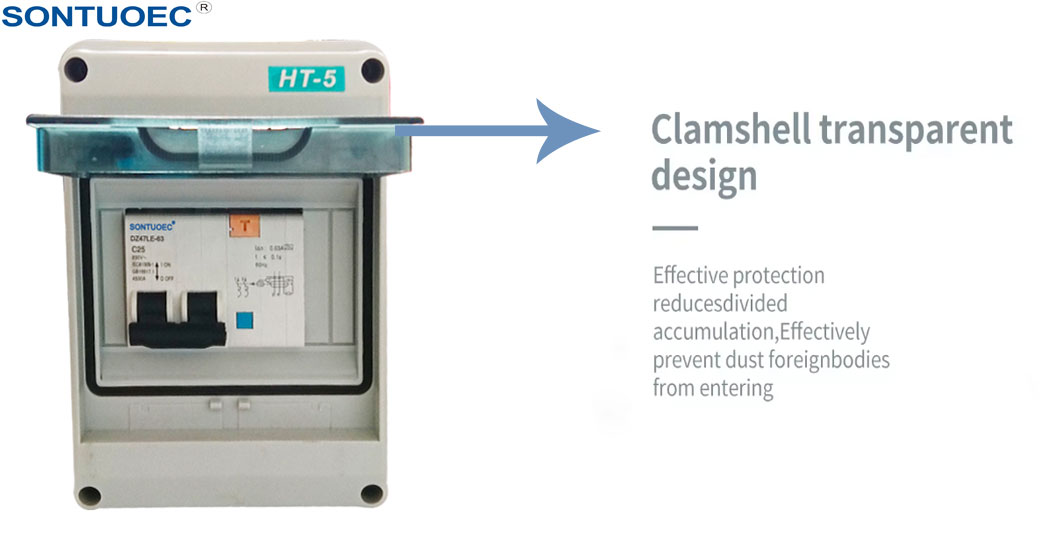

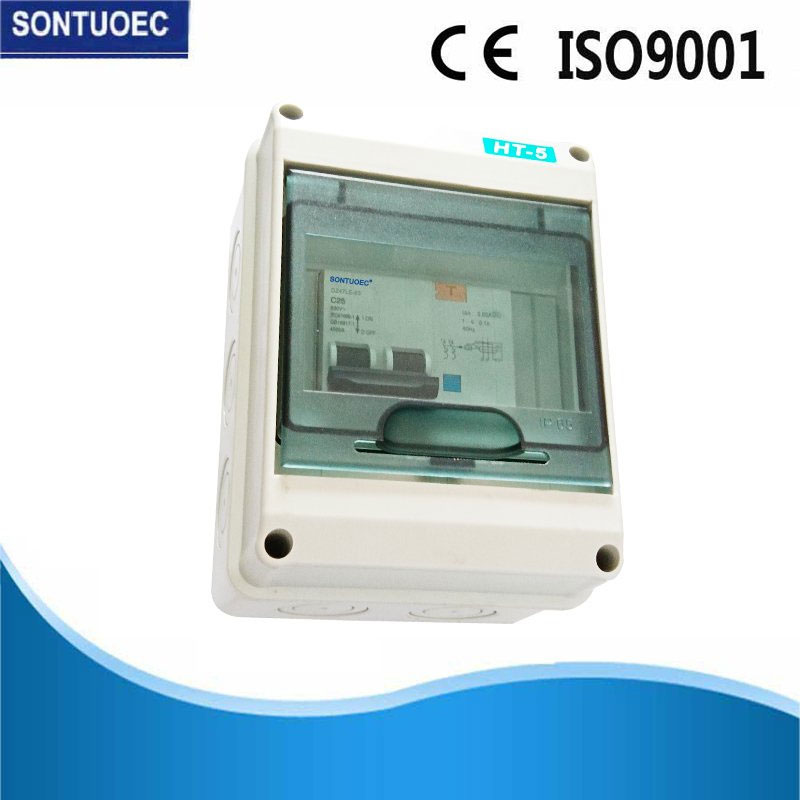

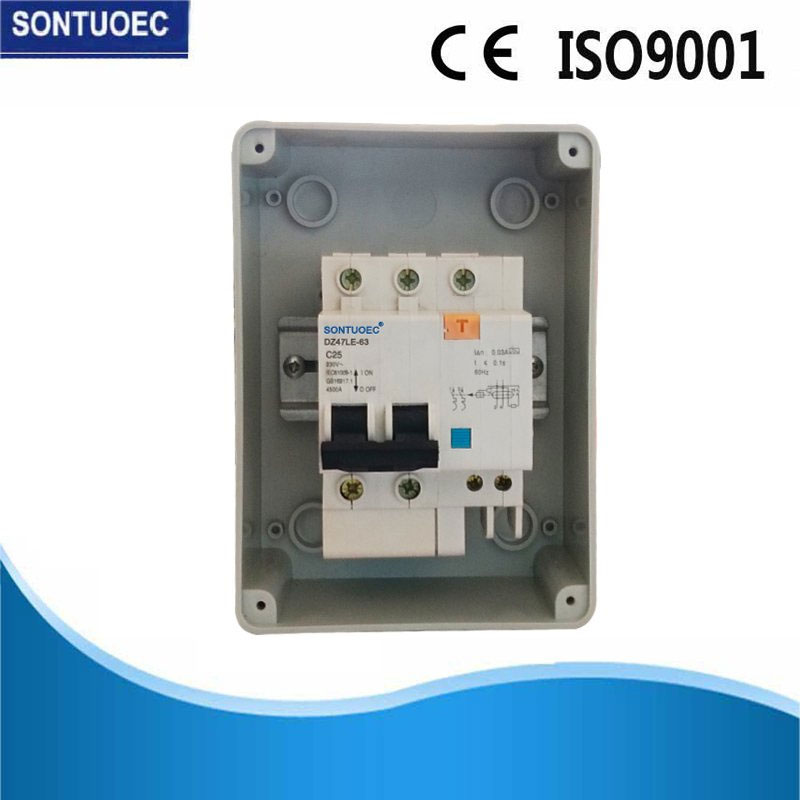

I-Dz47le-63 Series ye-Dz47le-63 Imbonakalo eManyeneyo yoBubungakanani beSekethe i-RCBO

I-1.RCBO isetyenziswa kakhulu kwi-AC 50Hz (60Hz), i-voltage elinganisiweyo 230/400V, inikwe i-6A yangoku ukuya kwi-63A ye-terminal terminal distribution system. I-RCBO ilingana nomsebenzi we-MCB+RCD; Isetyenziselwa ukhuseleko lokothuka kombane kunye nokhuseleko lonxibelelwano lomntu olungathanga ngqo, ukhuseleko lwesixhobo sombane xa umzimba womntu uchukumisa umbane okanye umsinga wombane ovuzayo wenethiwekhi yombane ungaphezulu kwexabiso elibekiweyo, kunye nokhuseleko olungaphezulu komthwalo kunye nesekethe emfutshane; Isenokuba ngumsebenzisi ongekho rhoqo kwisekethe, esetyenziswa ngokukhohlakeleyo kwindawo yokuhlala kunye neyorhwebo. Ihambelana nomgangatho we-IEC61009-1. I-2.MCB isetyenziswa kwi-AC50/60Hz, amandla ombane alinganisiweyo angama-230V3, iipali ezi-4 ze-400V, inikwe umlinganiselo wangoku ukuya kwi-63A ngokugqithiswa kunye nokhuseleko lwesekethe emfutshane kunye nokutshintsha okungaqhelekanga kwiimeko eziqhelekileyo. I-3.RCCB ihambelana nemigangatho ye-IEC61008.Inokunqumla i-fault circuit ngokukhawuleza ngexesha lengozi yokutshatyalaliswa okanye ukuvuza komhlaba we-trunkline.Ngoko ke ifanelekile ukuphepha ingozi yokutshatyalaliswa kunye nomlilo obangelwa ukuvuza komhlaba.Inokusetyenziswa kwiisekethe ukuya kwisigaba esisodwa se-240V, isigaba sesithathu se-40z okanye i-415V 60H, isigaba sesithathu se-40z 60H, i-4060H60H

Umzekelo:DZ47LE-63

Thumela uMbuzo

Ingcaciso yeMveliso

Iinkcukacha:

I-I-RCBO

	Umgangatho	Iyunithi	IEC/EN 61009-1
Umbane	Imowudi		Uhlobo lwe-elektroniki
Iimbonakalo	Uhlobo(uhlobo lwamaza omhlaba oluvuzayo luvakeleyo)		A, AC
	Iimpawu zokukhutshwa kwe-Thermomagnetic		B,C,D
	Ilinganiswe ngoku ln	A	6,10,16,20,25,32,40,63
	Iipali	P	1P+N, 3P+N
	Ixabiso lombane i-Ue	V	AC 230, 400
	Uvakalelo olulinganisiweyo I△n	A	0.01, 0.03, 0.1, 0.3, 0.5
	Ilinganiswe ukwenza intsalela kunye nokophula umthamo l△m	A	500
	Ilinganiswe umthamo wesekethe emfutshane Icn	A	6000
	Ixesha lekhefu phantsi kwe-I△n	S	≤0.1
	Ilinganiswe rhoqo	Hz	50/60
	Ulinganiso lwe-impulsewithstand voltage (1.2/50) Uimp	V	4000
	I-voltage yovavanyo lwe-Dielectric kwi-ind.Freq ye-1min	kV	2
	I-Insulation voltage Ui	V	250
	Isidanga songcoliseko		2
Iimpawu zoomatshini	Ubomi bombane		4000
	Ubomi bomatshini		10000
	Isalathisi sangoku		EWE
	Isidanga soKhuseleko		IP20
	Ubushushu obugciniwe	ºC	-5 ~+40(Isicelo esikhethekileyo nceda ubhekiselele
	(ngomndilili wemihla ngemihla≤35ºC)	ºC	ukulungiswa kwembuyekezo yobushushu)
	Ubushushu bokugcina	ºC	-25~+70
Ukuhlohla	Uhlobo loqhagamshelwano lwetheminali		Ikhebula/uhlobo lwebhasi yebhasi/U-uhlobo lwebhasi
	Ubungakanani betheminali phezulu/ezantsi kwintambo	mm2	25
	Ubungakanani betheminali phezulu/ezantsi kwintambo	AWG	5月18日
	Ubungakanani betheminali phezulu/ezantsi kwibha yebhasi	mm2	25
	Ubungakanani betheminali phezulu/ezantsi kwibha yebhasi	AWG	3月18日

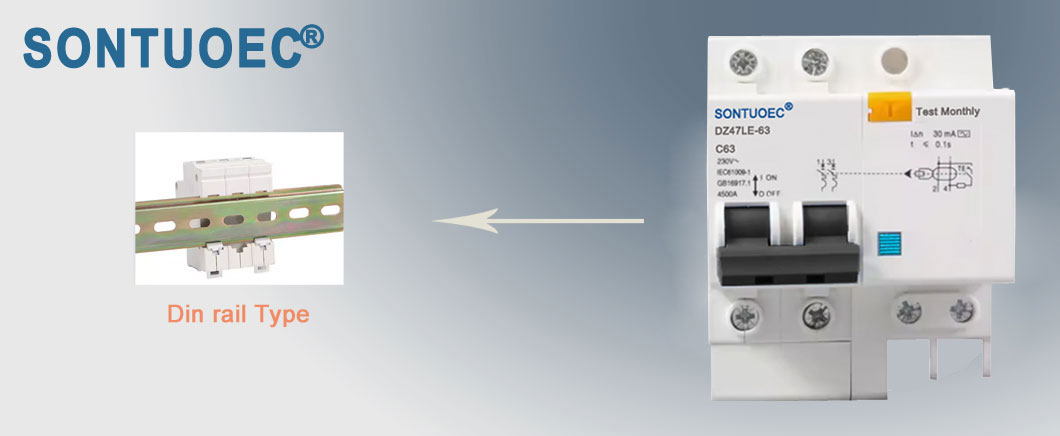

	Ukunyuka		Kwi-DIN kaloliwe EN 60715(35mm) ngesixhobo sokuqhotyoshwa esikhawulezayo
	Uqhagamshelwano		Ukusuka phezulu

I-Roduct Over View:

1. Ukubonelela ngokhuseleko kwimpazamo yomhlaba / ukuvuza kwangoku kunye nomsebenzi wokuzihlukanisa

2. High short-isekethe yangoku ukumelana umthamo3. Isebenza kwitheminali kunye nephini/uhlobo lwefolokhwe yoqhagamshelwano lwebhasi

5. Nqamula ngokuzenzekelayo isekethe xa impazamo yomhlaba/ukuvuza kwangoku kusenzeka kwaye kudlule uvakalelo olulinganiselweyo.

6. Ukuzimela kokunikezelwa kwamandla kunye nombane wombane, kwaye ukhululekile ekuphazamisekeni kwangaphandle, ukuguquguquka kwamandla ombane.

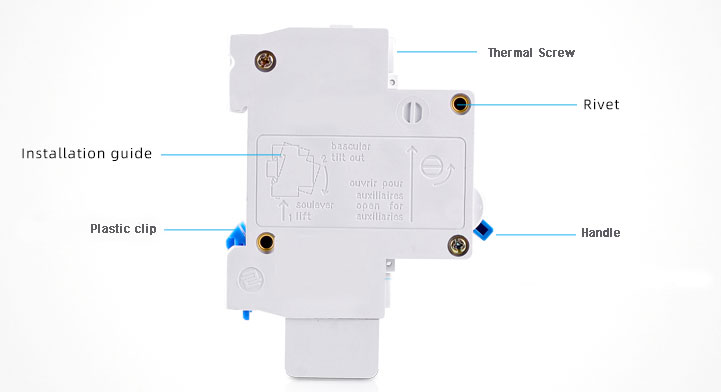

MCB

Umzekelo	MCB
Umgangatho	IEC60898-1
Ipali	1P,2P,3P,4P
Ijika elijikajikayo	B,C,D
Ubungakanani bomthamo wesekethe emfutshane(Icn)	3KA,4.5KA,6KA,10KA
Ikalwe ngoku(Phakathi)	1,2,4,6,10,16,20,25,32,40,50,63A
Ixabiso leVoltage(Un)	AC230(240)/400(415)V
Ukukhutshwa kwemagneti	Igophe B: phakathi kwe-3 kunye ne-5 ngaphakathi
	Igophe B: phakathi kwe-3 kunye ne-5 ngaphakathi
	C igophe: phakathi 5kunye ne-10ngaphakathi
	C igophe: phakathi 5kunye ne-10ngaphakathi
	D igophe: phakathi kwe-10 kunye ne-14In
	D igophe: phakathi kwe-10 kunye ne-14In
Ukunyamezela kwe-Electro-mechanical	phezu 6000 imijikeloC

I-RCCB


	Umgangatho	Iyunithi	IEC/EN 61008-1
Umbane	Uhlobo(uhlobo lwamaza omhlaba oluvuzayo luvakeleyo)		AC, A
Uphawu	Ikalwe ngaphakathi ngoku	A	16,25,32,40,63
	Iipali	P	2,4
	Ixabiso lombane i-Ue	V	230/400
	Uvakalelo olulinganiselweyo I n	A	0.01,0.03,0.1,0.3
	I-Insulation voltage Ui	V	500
	Ireyithiwe ukwenza intsalela kunye	A	630
	ukwaphula umthamo I m
	Umsinga omfutshane I c	A	4500/6000
	Ifuse ye-SCPD	A	6000
	Ixesha lekhefu phantsi kwe-I n	s	<0.1
	Ilinganiswe rhoqo	Hz	50/60
	Isidanga songcoliseko		2
MechanicaI	Ubomi bombane	t	4000
Iimbonakalo	MechanicaI Iife	t	20000
	Isalathisi sangoku esinempazamo		Ewe
	Isidanga soKhuseleko		IP20
	Ubushushu obugciniwe	C	Ukusuka kwi-25C ukuya kwi-40C
	(ngomndilili wemihla ngemihla ngama-35)
	Ubushushu bokugcina	C	Ukusuka -25C ukuya kwi-70C

FAQ

Umbuzo 1. lithini ixesha lokuhlawula? A. Samkela i-TT, i-30% yediphozithi kunye ne-70% ibhalansi echasene nekopi ye-BL

Umbuzo 2. linjani ixesha lokuhambisa?

A. ngokuqhelekileyo kuya kuthatha malunga neentsuku ezingama-25 ukuveliswa

Umbuzo 3. ndixelele umgangatho wephakheji?

A. Ngokuqhelekileyo iibhokisi, kodwa sinako ukuyipakisha ngokwemfuno yakho.

Umbuzo 4.Ngaba uyavuma ukusebenzisa ilogo yethu ?

A.Ukuba unobungakanani obuhle, akukho ngxaki ukwenza iOEM.

Q5. Ndingathatha iisampulu?

A: Ewe, sixhasa ukuthatha iisampulu ngaphambi kokubeka iodolo. Zive ukhululekile ukunxibelelana nathi ukuba unayo naziphi na iimfuno.

Q6. Ngaba uyiFactory yokuqala?

A: Ewe, sinowethu umzi-mveliso.

Q7. Ungaqinisekisa njani umgangatho weemveliso?

IMPENDULO: Siza kuvumelana nemigangatho yomgangatho wamazwe ngamazwe ukuhlola yonke into phambi kokuba ushiye umzi-mveliso wethu. Qhagamshelana nathiSiyabonga ngokufunda kwakho. Ukuba nayiphi na imveliso iyahlangabezana neemfuno zakho. Wamkelekile ukusithumelela i-imeyile okanye nge-Wechat kunye no-WhatsApp. Siqinisekile ukuba naluphi na ulwazi lwakho lunokuhoywa ngaphandle kokulibazisa.
