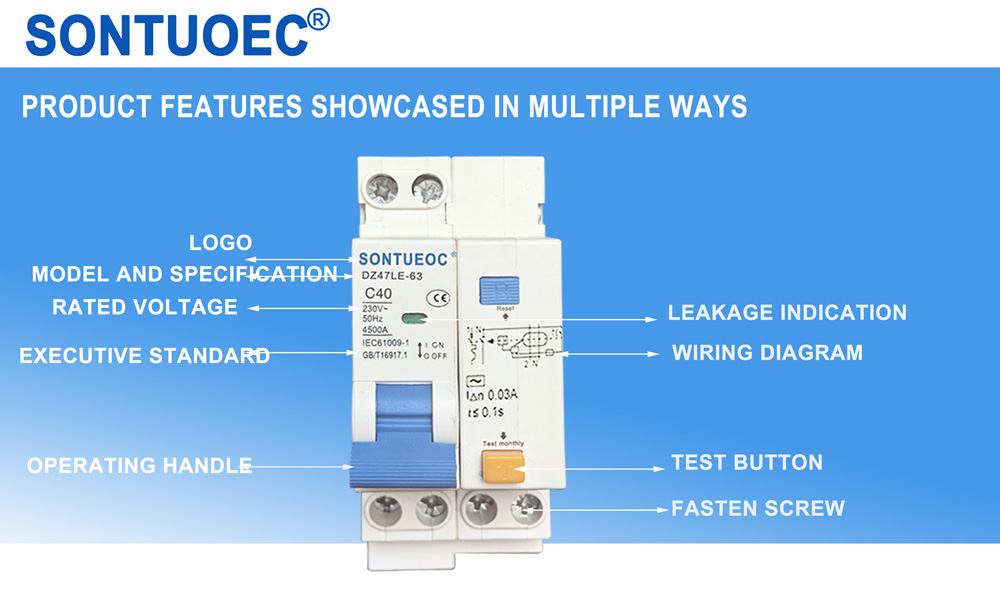

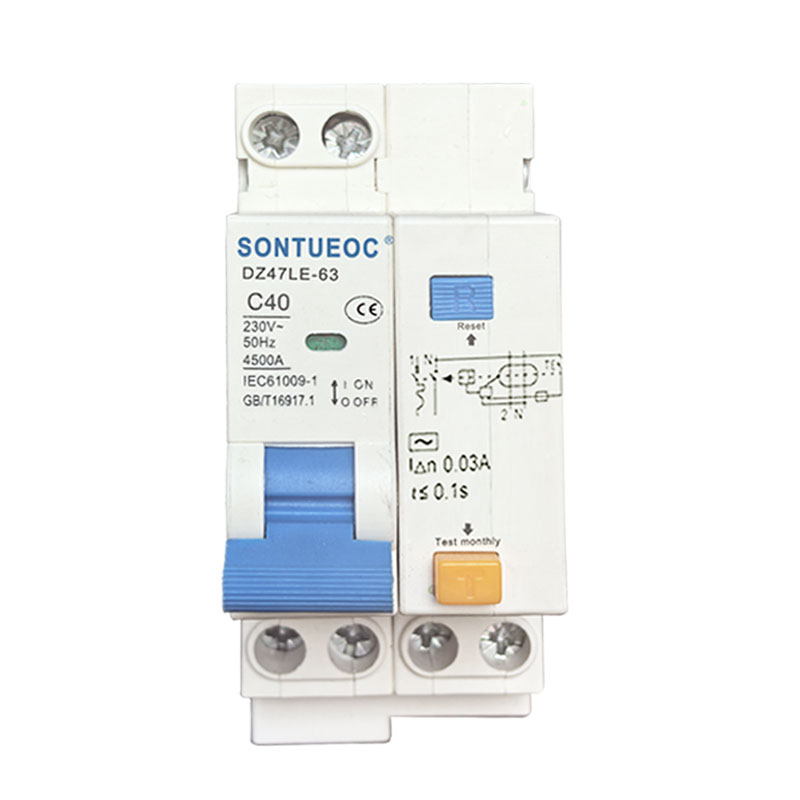

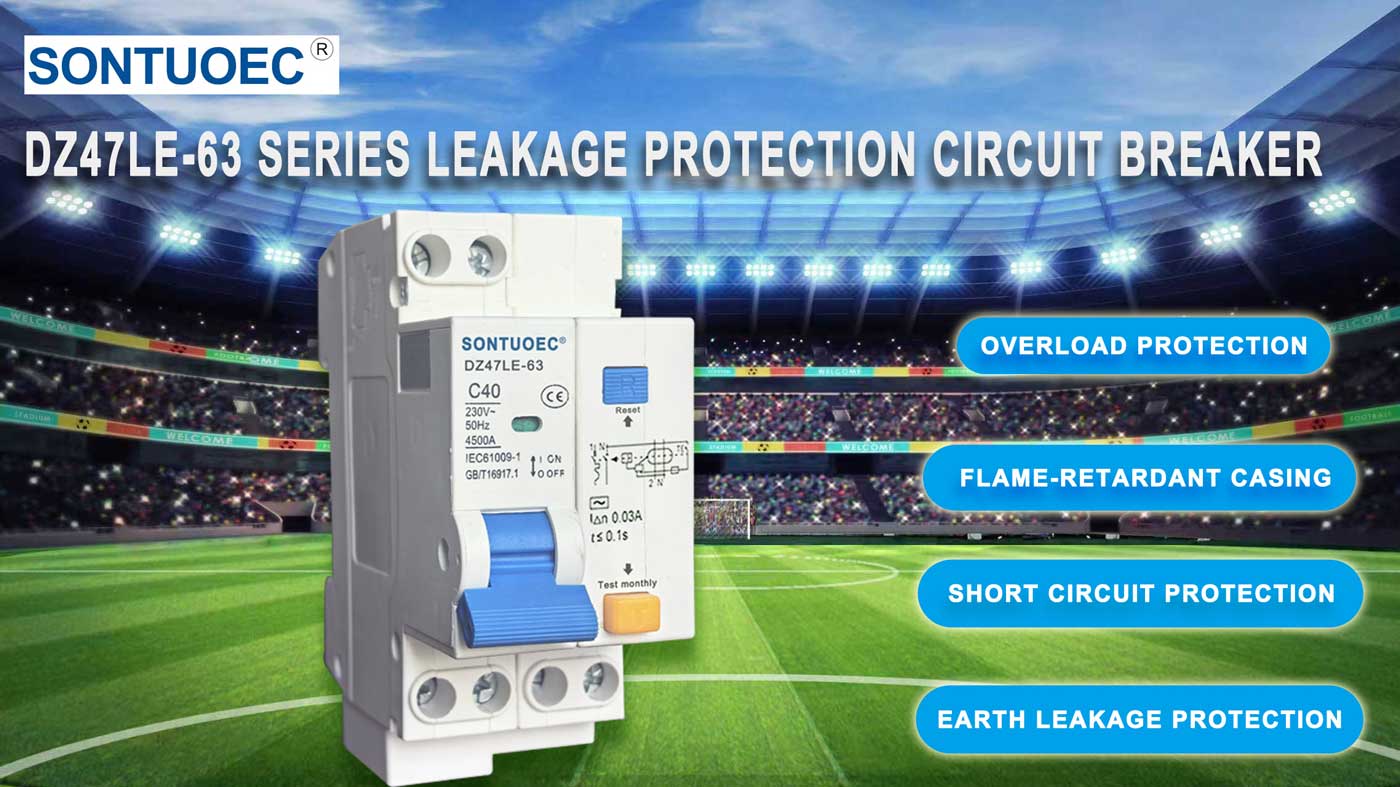

I-Dz47le-63 RCBO Series Ukuvuza yangoku yeSekethe Breaker

I-SONTUOEC ngomnye wababoneleli/abavelisi baseTshayina abaziingcali ekuveliseni izixhobo zombane ezincinci ezahlukeneyo.DZ47LE isebenza kumgca we-AC 50/60Hz olinganiswe ivoltage 230V yepali enye embini , 2 ipali okanye 300 pali 4 V i-3 V ipole I-4 pali kwaye ikalwe ngoku ukuya ku-63A. Iyakwazi ukukhusela umgca kunye nemoto ekulayishweni okuninzi kunye nesekethe emfutshane inokuthi isetyenziswe ukuguqulwa kwamaxesha kunye kunye nokuqalisa ukungaqhubi kwemoto.Ivumelana nemigangatho ye-IEC61009.1.

Umzekelo:DZ47LE-63

Thumela uMbuzo

Ingcaciso yeMveliso

Iiparamitha zobuGcisa:

Ulinganiso lweVoltage(V)	Ilinganiswe ngoku kwi-Case Inm(A)	Iipali	I-neutra	Ikalwe ngokuKu(A)	Ilinganiswe nge-Icu(KA) yeSekethe eNfutshane		Ilinganiswe ngokuvuza kwangoku okuqhekekayo	Ikalwe ngoku ayiqhawuki okwangoku (mA)
Ulinganiso lweVoltage(V)	Ilinganiswe ngoku kwi-Case Inm(A)	Iipali	Linel	Ikalwe ngokuKu(A)	Ukwaphulwa kweCapacity Icu(KA)	I-COS	(mA))	Ikalwe ngoku ayiqhawuki okwangoku (mA)
230	6-63	1	N	6,10,16,	6	0.7	30,50,	15,25,
230	6-63	2		20,25,32,	6	0.7	100,300	50,150
400	6-63	3		40,50,63	6	0.7
400	6-63	3	N		6	0.7
400	6-63	4			6	0.7
230	6-63	1	N		4.5	0.8
400	6-63	2			4.5	0.8
400	6-63	3			4.5	0.8
400	6-63	3	N		4.5	0.8
400	6-63	4			4.5	0.8

I-DZ47LE Isaphuli seSekethe esiSetyenzisiweyo sangoku esinokhuseleko lwangoku (lwe-elektroniki):

1. Isicelo

Ukhuseleko lwabasebenzi kunye nomlilo

Ikhebula kunye nokukhuselwa komgca ngokuchasene nokugcwala kunye neesekethe ezimfutshane

2. Imigaqo ngokubanzi yokukhetha i-RCBO:

a.Ireyithwe intsalela yokusebenza yangoku

Kwi-≤ 30 mA: ukhuseleko olongezelelweyo kwimeko yoqhagamshelwano oluthe ngqo Kwi-≤300 mA: ukhuseleko lomlilo olukhuselayo kwimeko yomhlaba impazamo yemisinga

b.Iklasi yokuhambahamba

Iklasi ye-AC - Ukuhamba kuqinisekiswa kwi-sinusoidal, i-currents alternating, nokuba ifakwe ngokukhawuleza okanye inyuka ngokukhawuleza.

c.Ijiko lokujika

I-C curve (5-10 In) ukukhuselwa kunye nokulawulwa kweesekethe ngokuchasene nokugqithisa kunye neesekethe ezimfutshane; ukukhuselwa kwemithwalo yokumelana kunye ne-inductive kunye ne-low inrush current.

I-D curve (10-14 In) ukukhuselwa kunye nokulawulwa kweesekethe ngokuchasene nokugqithisa kunye neesekethe ezimfutshane; ukukhuselwa kweesekethe ezibonelela ngemithwalo nge-inrush current ephezulu ekuvaleni kweesekethe (i-LV/LV transformers, izibane zokuqhawula).
