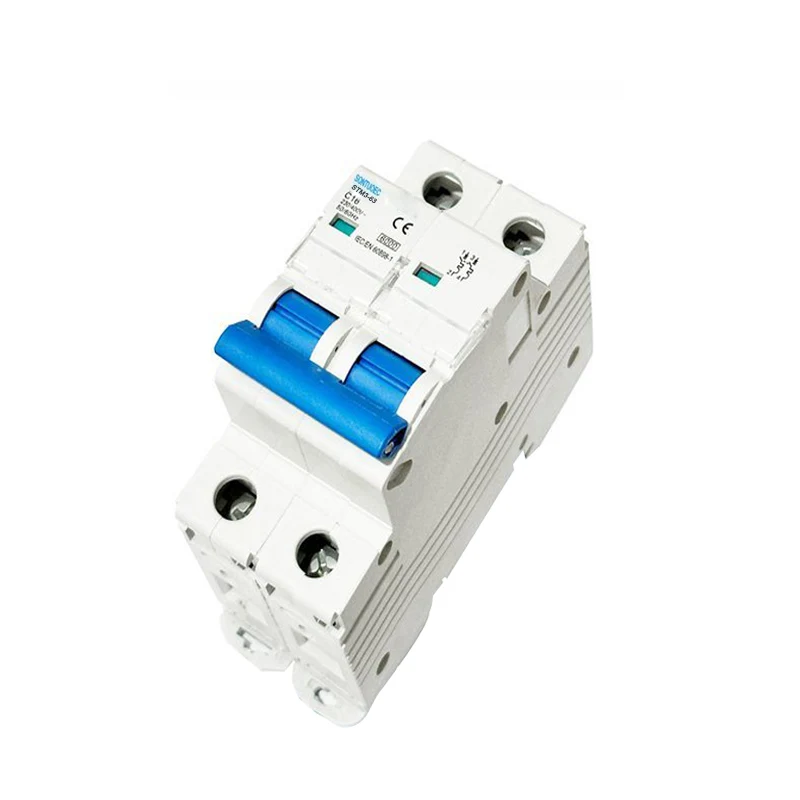

Ijika i-M MCB encinci yeSekethe

Iijika zeSekethe B MCB ezincinci zincinci, kulula ukufaka kwaye zisebenze izixhobo zokutshintsha kombane ezisetyenziselwa ukhusela isekethe nxamnye neziphatho ezineziphoso ezifana nezona zininzi. Zilungele iisekethe ezifuna ukhuseleko olulinganayo.

Umzekelo:STM3-63

Thumela uMbuzo

Ingcaciso yeMveliso

Imodeli	Stm3-63
ISandird	IEC60898-1

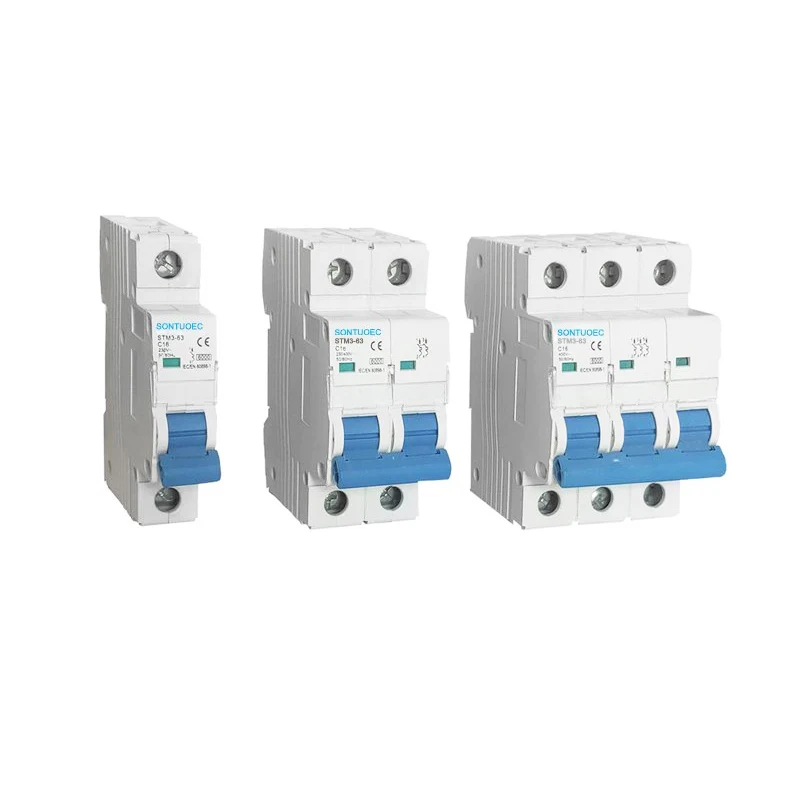

Isibonda	1p, 2p, 3P, 4P
Ukuqhekeka okufutshane kwisekethe	3ka, 4.5Ka, 6ka
Ikaliwe Okwangoku (kwi)	I-1,2,4,410,26,20,25,32,40, 35,53a
Ikaliwe I-Voltage (i-UN)	I-AC230 (240) / 400 (415) v
Ikaliwe Rhoqo	I-50 / 60hz
Ukuhamba nge-curve	B, c, d
Imagnetic ukukhululwa	B Ijika: phakathi kwe-3in kunye ne-5 kwi
	C ijika: phakathi kwe-5in kunye ne-10in
	D ijika: phakathi kwe-10in kunye ne-14in
I-electro-metshini Unyamezelo	ngaphezulu Imijikelezo engama-6000

UMGAQO-NKQUBO OMPILO

Ukukhuselwa okugqithisileyo: Xa okwangoku kwisekethe ingaphezulu kwexabiso langoku le-MCB kwaye lihlala ixesha elithile, i-MCB iza kunqamla isekethe yokuthintela iingcingo kunye nezixhobo zombane zokonakaliswa.

Ukukhuselwa kwesekethe emfutshane: Kwisiko lesekethe elifutshane, okwangoku kuya kunyuka ngokumangalisayo kwaye i-MCB iya kufumanisa kwaye ikhuphe isekethe yokuthintela imililo efana nomlilo.

Curve B MCB Miniature Circuit Breaker

Izicelo

Ijika B MCB Wienikhi yeSekethe ilungele i-AC 50 / 60HZ, i-voltage 230 / 400V, irejista yaya kwi-63A, kwaye inokusetyenziselwa ukukhusela imijikelezo yomthwalo omkhulu kunye nokulima umonakalo wesekethe omninzi.

Ikwakulungele ukusebenza okungapheliyo komgca wokutshintsha komgca, njengokulawula ukukhanya, isokethi kunye nezinye iziphaluka kunye nokucima.

Ukukhetha kunye nokufakwa

Ukukhetha: Xa ukhetha i-curve b mcb, kuyimfuneko ukufumanisa imodeli efanelekileyo kunye nokuchazwa ngokusekwe kwi-voltage yesekethe kwaye ihlawulwe yesekethe kunye neempawu zokukhusela.

Ukufakwa: I-MCB kufuneka ifakwe ngokungqinelana neekhowudi zokhuseleko zombane ezifanelekileyo ukuqinisekisa ukuba ifikeleleka ngokulula kwaye kulula ukusebenza. Xa ukufaka, ukhathalelo kufuneka kuthathelwe ingqalelo ukuqinisekisa ukuba i-wiring ichanekile kwaye iqiniswe ngokuthembekileyo ukuthintela ukungasebenzi kakuhle kubangelwa kukunxibelelana okanye ukukhululeka.
