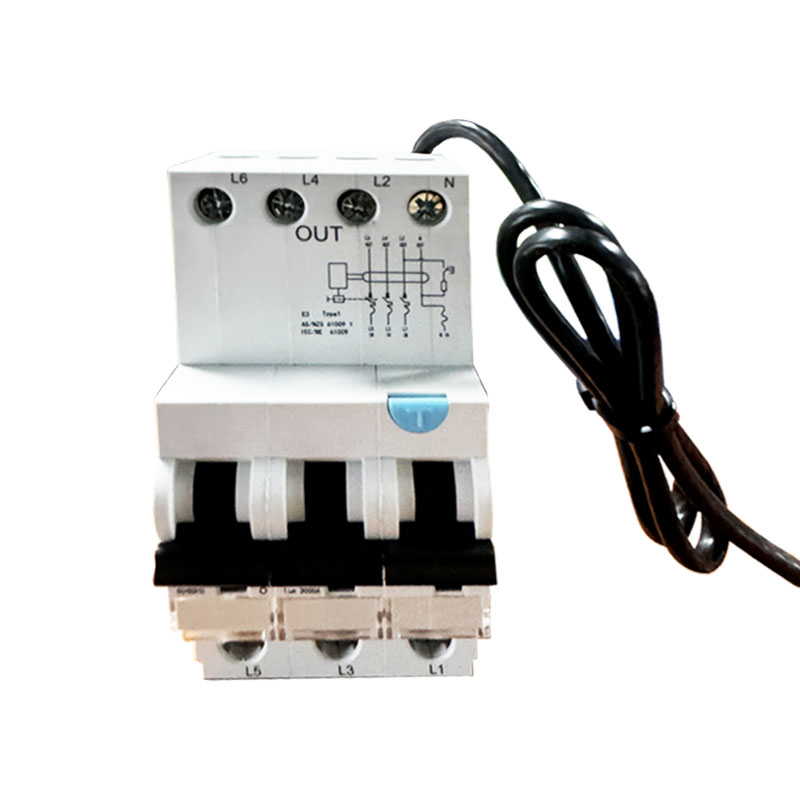

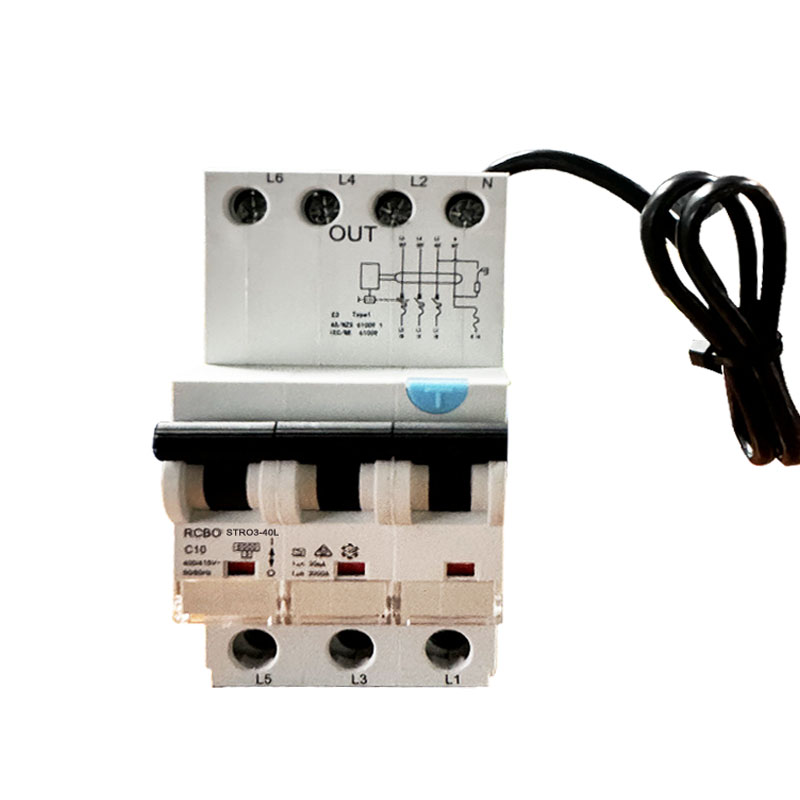

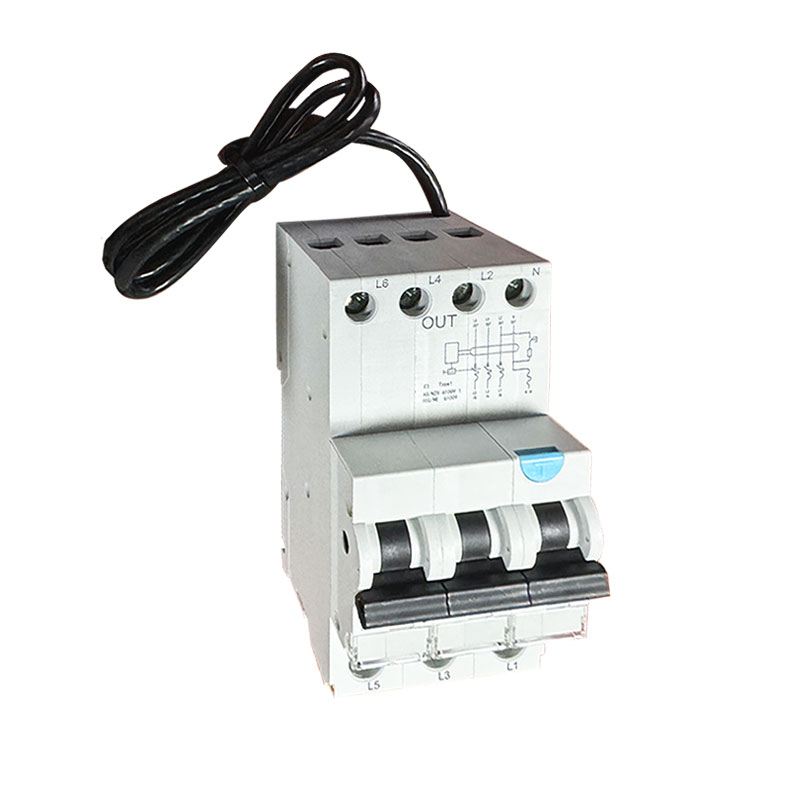

6ka 3p+N Leakage Circuit Breaker a (AC) Uhlobo RCBO ngeCable

I-SONTUOEC ingomnye wababoneleli / abavelisi baseTshayina abakhethekileyo kwimveliso yezixhobo zombane ezincinci ezahlukeneyo 6ka 3P + N Leakage Circuit Breaker a (AC) Uhlobo lwe-RCBO kunye neCable isetyenziswa kakhulu kwi-AC 50Hz (60Hz), i-voltage elinganisiweyo 110 / 220V, 0 i-voltage ephantsi ye-0 / 2 yangoku, i-0 4 yokusabalalisa i-terminal 4, i-4 ye-terminal ephantsi kwe-4 inkqubo. I-RCBO STRO3-40L ilingana nomsebenzi we-MCB + RCD; Isetyenziselwa ukukhuselwa kombane kunye nokukhuselwa kwabantu ngokungathanga ngqo, ukukhuselwa kwezixhobo zombane xa umzimba womntu uchukumisa umbane okanye inethiwekhi yombane evuzayo yangoku idlula ixabiso elichaziweyo, kunye nomthwalo ongaphezulu kunye nokukhusela isiphaluka esifutshane.

Umzekelo:STRO3-40L

Thumela uMbuzo

Ingcaciso yeMveliso

Idatha yobugcisa:

Sandard

IEC/EN61009-1

Iimpawu zombane

Uhlobo(amaza uhlobo lokuvuza komhlaba olubonakalisiweyo)

I-Electro-magnetic uhlobo

Ikalwe ngaphakathi

A,AC

Iipali

(1P+N)

Umbane olinganisiweyo

110/220,120V

Ikalwe ngoku :

6,10,16,20,25,32,40A

Uvakalelo olulinganisiweyo I△n

0.01,0.03,0.1

I-Insulation voltage Ui

500

Ireyithiwe ukwenza intsalela kunye

500

ukophula umthamo I△m

I-short-circuit current I△c

6000

Ifuse ye-SCPD

6000, 10000A

BitmapBitmapBitmapBitmap

Ilinganiswe rhoqo

50/60

Isidanga songcoliseko

Iimpawu zoomatshini

Umbane ubomi

4000

Ubomi bomatshini

4000

Isidanga soKhuseleko

IP20

Ubushushu obugciniwe

ºC

-5 ~+40(Isicelo esikhethekileyo nceda ubhekiselele ukulungiswa kwembuyekezo yobushushu)

(ngomndilili wemihla ngemihla ≤35ºC)

Ubushushu bokugcina

ºC

-25~+70

Ukuhlohla

Itheminali uhlobo loqhagamshelwano

Ikhebula/U-uhlobo busbar/pin-uhlobo lwebhasi

Ubungakanani betheminali phezulu/ezantsi kwintambo

mm²

AWG

18-5

Ubungakanani betheminali phezulu/ezantsi kwe ibha yebhasi

mm²

AWG

18-5

Ukuqinisa itorque

N^*m

Ngaphakathi-lbs

Ukunyuka

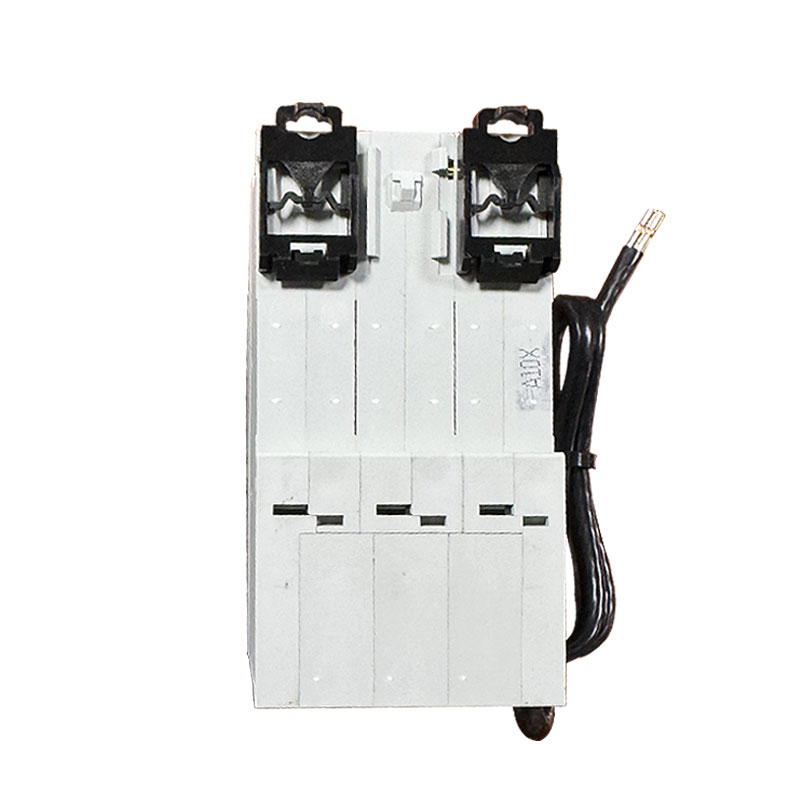

Vula Umzila kaloliwe we-DIN EN 60715(35mm) ngesixhobo sokuqhotyoshwa ngokukhawuleza

Uqhagamshelwano

Ukusuka phezulu nasezantsi

Iimpawu eziphambili kunye neMisebenzi

Ukukhuselwa kwangoku okushiyekileyo: Xa i-residual current (oko kukuthi, ukuvuza kwangoku) kwisekethe ifikelela kwixabiso elimiselweyo, i-RCBO iyakwazi ukwenza ngokukhawuleza ukunqumla isiphaluka, ngaloo ndlela ikhusela iingozi ze-electrocution kunye nomlilo wombane.

Ukukhuselwa kokugqithiswa: Xa i-current in circuit idlula i-current rated current ye-RCBO, iyakwazi ukunqumla isiphaluka ngaphakathi kwexesha elithile, ngaloo ndlela ikhusela umonakalo kwisiphaluka okanye kwiingozi zomlilo ezibangelwa ukugqithisa.

Ukukhuselwa kwesiphaluka esifutshane: Xa i-short-circuit isenzeka kwisekethe, i-RCBO inokusebenza ngokukhawuleza ukunqumla i-short-circuit current kunye nokukhusela ukhuseleko lwesekethe kunye nezixhobo.

Iimpawu zokukhutshwa kohlobo lwe-B: Njengoko kukhankanyiwe ngasentla, ii-RCBOs zohlobo lwe-B zifaneleke ngokukodwa kwimithwalo engakhathaliyo kwi-overloads ekhawulezileyo, kodwa inovelwano kumthwalo owandayo.

Iimeko zeSicelo

I-6ka 3p + N i-Leakage Circuit Breaker a (AC) Uhlobo lwe-RCBO eneCable isetyenziswa ngokubanzi kwiindawo apho kufuneka khona imisebenzi eyahlukeneyo yokukhusela isiphaluka, ngakumbi ezo zijikelezo ezisebenzisa imithwalo eneemfuno ezizodwa kwiimpawu ezigqithisiweyo. Umzekelo:

Izakhiwo zokuhlala kunye nezorhwebo: ezisetyenziselwa ukukhusela iisekethe zokukhanyisa, iisekethe zesokhethi, njl.njl. ukuqinisekisa ukhuseleko lomntu kunye nokhuseleko lwezixhobo.

Iindawo zoshishino: ukukhusela izixhobo ezahlukeneyo zemizi-mveliso, ezifana nezifudumezi, izibane ze-incandescent, njl., Ukuthintela umonakalo wesixhobo okanye iingozi zomlilo ezibangelwa kukugcwala okanye ukuvuza.

Ezolimo kunye ne-horticulture: isetyenziselwa ukukhusela izixhobo zezolimo ezifana nezindlu zokugcina izityalo, iinkqubo zokunkcenkceshela, njl., Ukuqinisekisa ukusebenza okuqhelekileyo kwezixhobo kunye nokhuseleko lwabasebenzi.

Imigqaliselo kunye noLondolozo

Ukhetho oluchanekileyo lwangoku olulinganisiweyo: Xa ukhetha i- 6ka 3p+N Leakage Circuit Breaker a (AC) Uhlobo lwe-RCBO eneCable, ixabiso elilinganiselweyo langoku lifanele likhethwe ngokusekelwe kumlinganiselo wangoku kunye neempawu zomthwalo.

Ukuhlolwa kwamaxesha athile kunye noLondolozo: Ukuhlola rhoqo kwaye ugcine i-RCBO ukuqinisekisa ukuba isebenza ngokuthembekileyo, ineentambo ezikhuselekileyo, kwaye ayinamonakalo okanye ukubola.

Gwema ukusebenza kobuxoki: Xa ufaka kwaye usebenzisa, kufuneka kuthathelwe ingqalelo ukuphepha ukufaka i-RCBO kwindawo enokuthi iphazamiseke ukuze kuthintelwe ukusebenza kwayo kobuxoki.

Ukuphathwa kwangethuba kweziphene: Xa i-RCBO ingaphumeleli okanye isebenza, isizathu kufuneka ichongwe kwaye ukusombulula ingxaki kufuneka kwenziwe kwangethuba ukuze kuqinisekiswe ukusebenza ngokukhuselekileyo kwesekethe.
